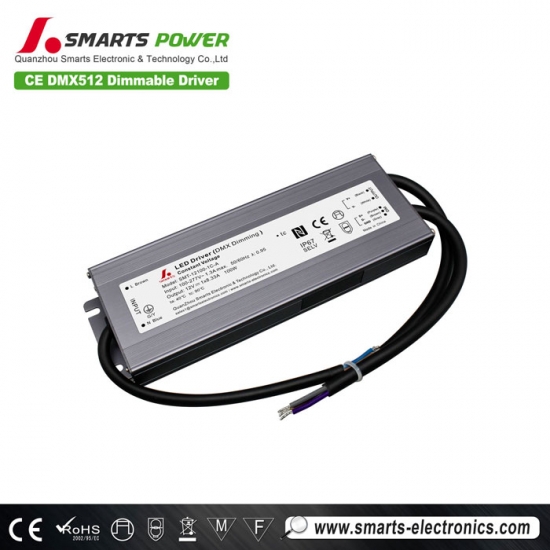

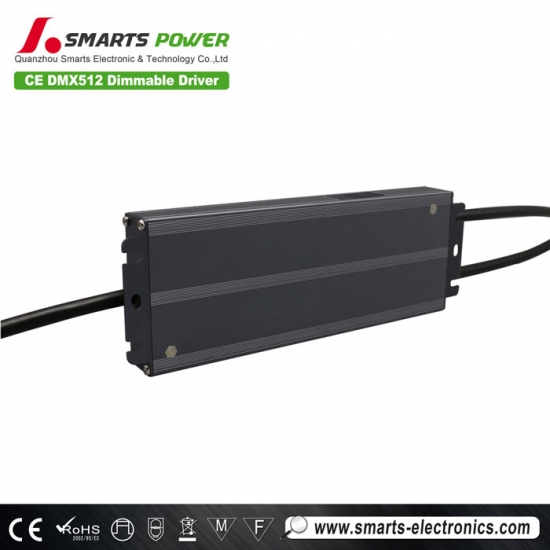

100w DMX dimmable led driver 12v one channel for rgb lighting


100w dimmable led driver DMX dimming provides the utmost dimming performance based on the load and type of dimmer being used. This electronic, solid-state power supply is also compatible with the Armacost low-voltage 12-volt DC RGB LED lighting.


  Product parameters

Model

SMT-12100-XC-A

SMT-24100-XC-A

X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Rated current

CH1+CH2+CH3+CH4+CH5=8.3A

CH1+CH2+CH3+CH4+CH5=4.17A



Rated power

100W



Load Regulation

±2%

Input

Voltage Range

100-277VAC



Frequency Range

47 - 63Hz



Power FactorTyp.@ full load

PF0.98/ 230VAC  (Full loading)



THDTyp.@ full load

<15%



EfficiencyTyp.@ full load

89% @230VAC

89%@230VAC



AC CurrentMax.

1.3A

1.3A



Inrush Current Typ.

48.5A,164us@50%Ipeak



Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recover automatically after fault condition is removed



Over Load

≤120% ,hiccup model, recover automatically after fault condition is removed



Over temperature

≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop



Protection Class

II

Environment

Working TEMP.

-40+60℃ (see below derating curve)



Working Humidity

20 - 95%RH ,non-condensing



Storage TEM.,Humidity

-40 - +80℃10 - 95%RH



TEMP.coefficient

±0.03%/℃0 - 50℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)



Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC Emission

EN55015   EN61000-3-2  EN61000-3-3 (EU)  &  FCC Part 15 B (US)



EMC Immunity

EN61000-4-2,3,4,5,6,11      EN61547

Others

Net Weight

0.90KG



Dimension

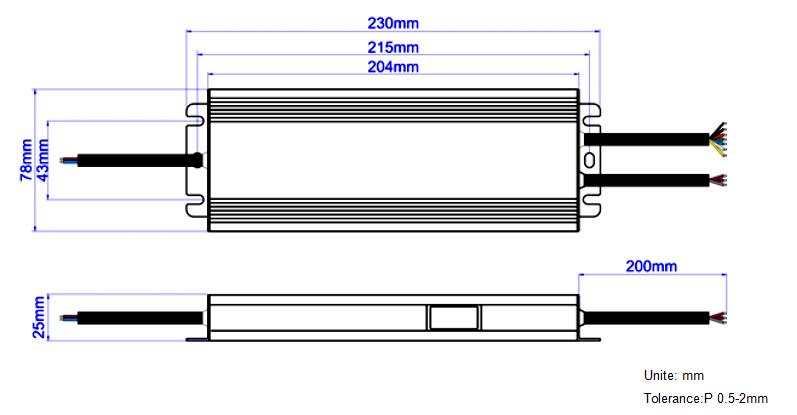

230*78*25mm (L*W*H)



packing

10PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and

25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Mechanical Specification


100w dimmable led driver

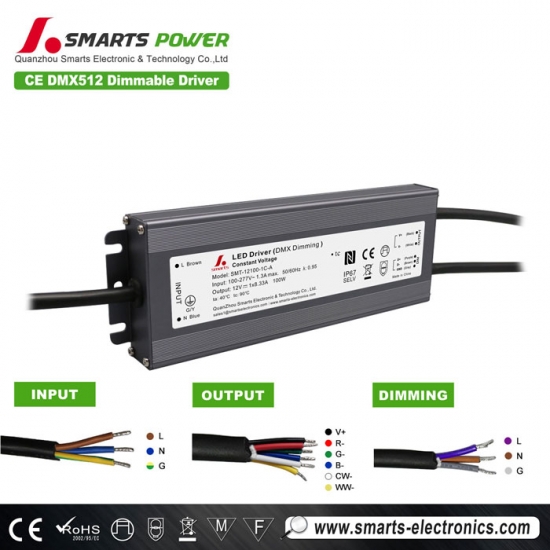

Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N)  (EU)

Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N)  (US)


Dimming cable  Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.


Output cable to be connected to LED Light;

DIM (DW) dimming:  Rubber cable

Black is output ( V+) Positive, White is output (V-) negative

CCT (TW) dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

RGB dimming:  1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative

RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative

RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG

Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;


  Compatible RGB LED Strip Type


Multi Color Minger brand Led lights colorful and durable, the brightness of the lights strip can be adjusted and offer 20 different colors and 6 lighting modes(jump, fade, flash etc), multiple scenes available: transforms your home, kitchen, ceiling, back of tv, desk, stairs, bar and more while working with led dimming driver.


100w dimmable led driver


  Related Products

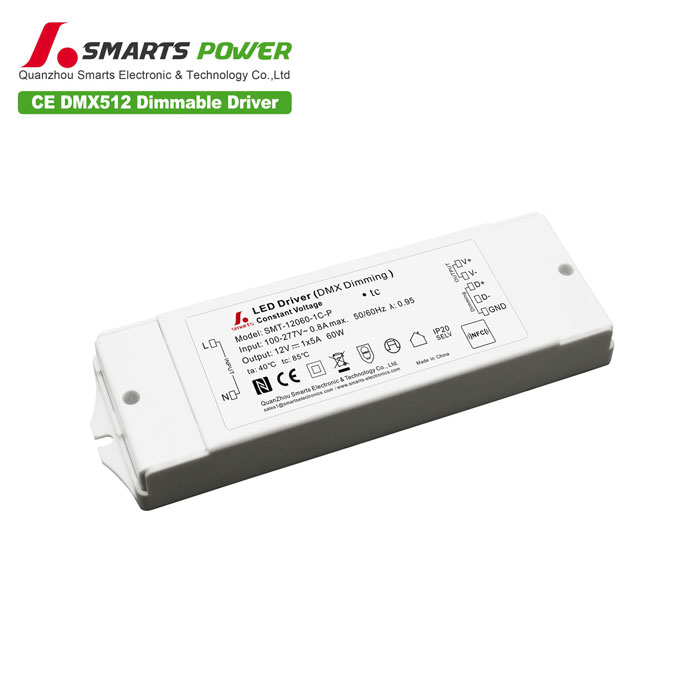

led dimming driverLed dimming driver with DMX512 dimmable that 12VDC constant voltage output and can power up to 60W of  LED load. It supports colorful dimming.
