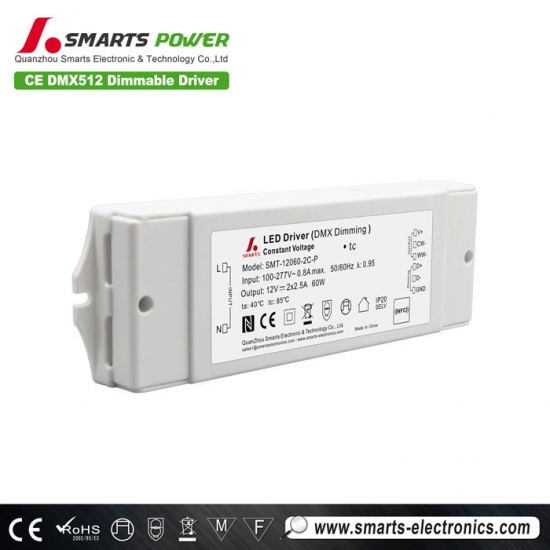

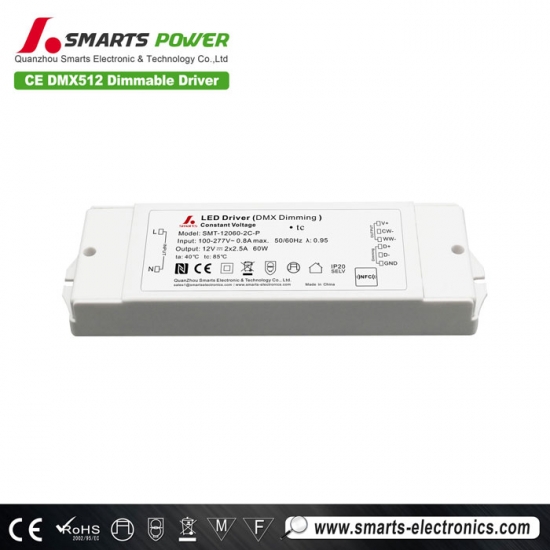

DMX512 dimmable led driver 60w 12v for rgb strip lights
New efficient and reliable led driver 60w 12v Class 2 DMX dimmable LED Driver that uses a integrated microprocessor that automatically senses and optimize dimming performance for a smooth flicker free dimming. suitable for Jsm-Imedia indoor sign lighting applications.
Product parameters
Model
SMT-12060-XC-P
SMT-24060-XC-P
X=1 , 2 for DIM (DW); CCT(TW)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2=5A
CH1+CH2=2.5A
Rated power
60W (class 2 power units)
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15% @120V 230V 277V
Efficiency（Typ.）@ full load
89% @230VAC
87%@230VAC
AC Current（Max.）
0.8A
0.8A
Inrush Current （Typ.）
36.4A,164us@50%Ipeak
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 90%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.35KG
Dimension
192.5*62*24mm (L*W*H)
packing
290*215*140mm/20PCS/CTN G.W.:8.3KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

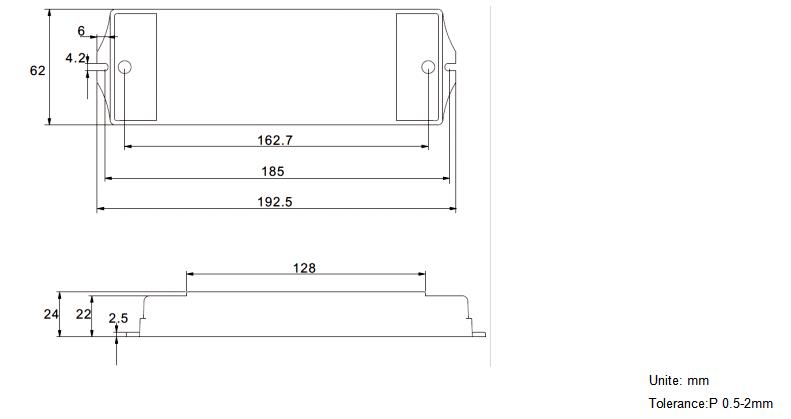

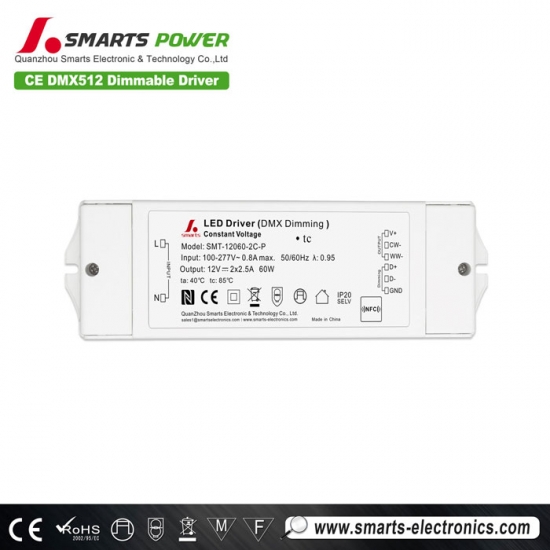

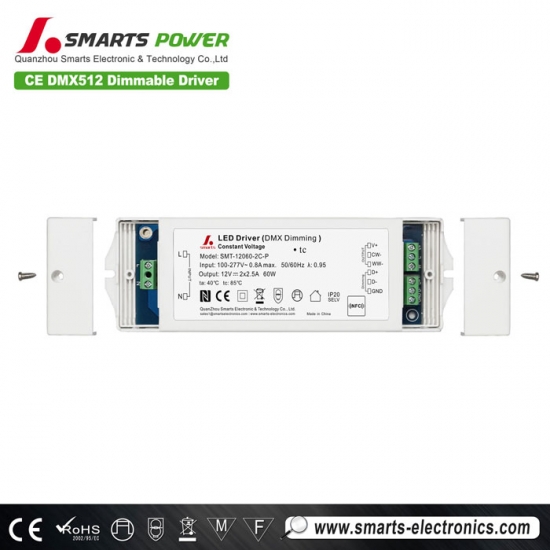

Mechanical Specification
Input terminal with 3P; Live Wire(L) , Neutral Wire (N) . Note: vacant for middle terminal
Suggested wire diameter: Primary 0.75-2mm² (18-14 AWG); Secondary 0.5-2mm² (20-14 AWG)
Output terminals with 6P; LED SEC positive (LED+), LED negative (LED-). Connected to LED light; Common anode design
2P for DIM (DW) dimming;
4P for CCT (TW) dimming with two LED positive pole
Compatible RGB LED Strip Type
12VDC Super Bright 4.4 Watts LED World RGB LED Strip comes in 13.12 feet (4 meters) long roll. In addition, Color changing RGB LED Strip comes in a flexible ultra-thin strip. Use led driver 60w 12v to dynamically control the strips. suitable for indoor use in dry location.
Related Products
|
Mode：SMT-12060-1C-P |
