Non-dimmable LED Driver

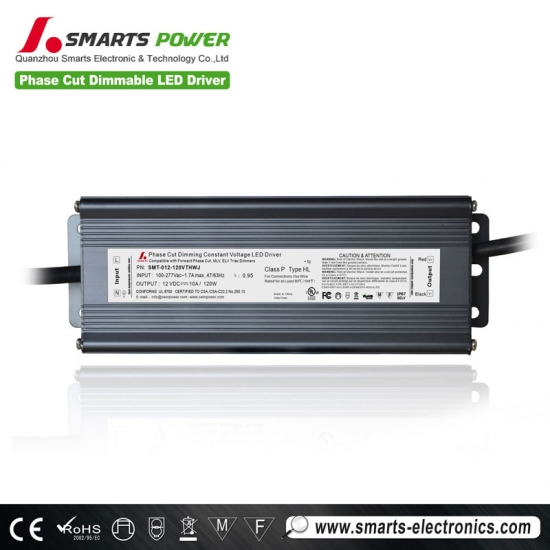

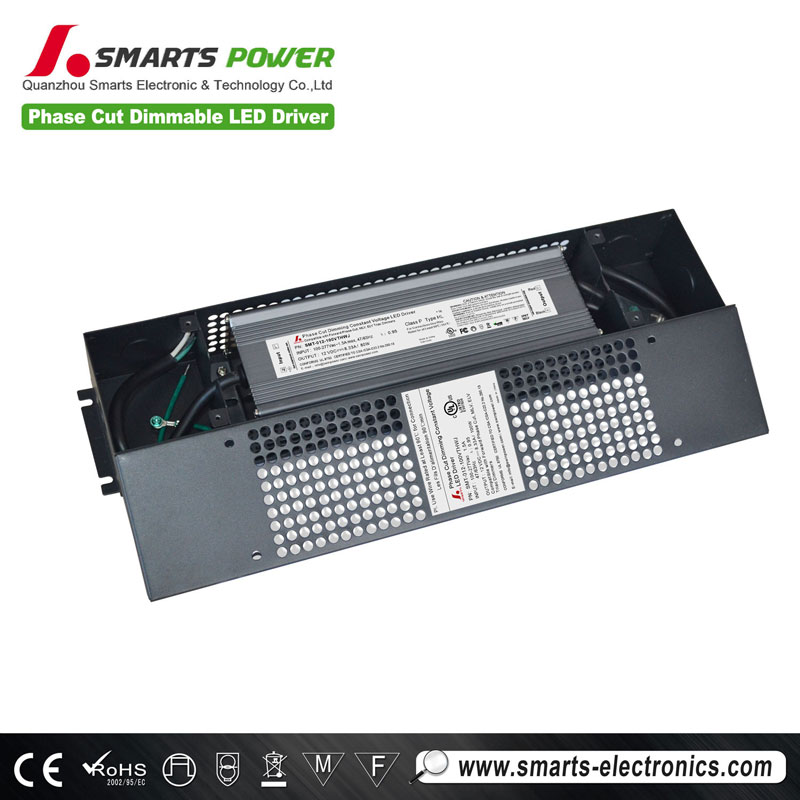

12v 24v 120w triac dimmable led driver with junction box for indoor

Constant voltage hard-wired 120w dimmable led driver are the driver of choice to pair with 120V switches, Lutron Skylark low voltage dimmers, this part can handle a current up to 10A.

  • item no.:

    SMT-012-120VTHWJ
  • brand:

    SMARTS
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12v
  • Output Current:

    10A
  • Working Mode:

    CV
  • Certification:

    UL, FCC, CE, ROHS
  • Warranty:

    7 years
inquiry now
product details

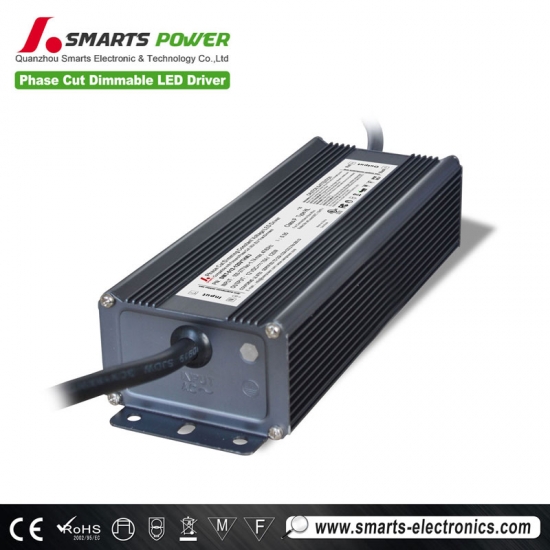

12v 24v 120w triac dimmable led driver with junction box for indoor


120w dimmable led driver is an AC to DC power supply.to convert an alternating current source to a direct current supply. It has a voltage of 12 V and maximum output power of 120W. This part has a minimum operating temperature of -40 °C and a maximum of 60 °C while dim the indoor EnoLight tape lights.


  Product parameters

model

SMT-012-120VTHWJ

SMT-024-120VTHWJ

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V

±0.5V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Load Regulation

±2%

±1%



Rated current

10.00A

5.0A



Rated power

120W

120W

Input

Voltage Range

100~277V AC



Frequency Range

4763HZ



THD(Typ.) @full load

<20%



Power Factor ( Typ.

0.[email protected]  0.[email protected]

0.[email protected]  0.[email protected]



Full Load Efficiency(Typ.)

>82%

>82%



AC CurrentTyp.

1.71A/110VAC



Inrush Current Typ.

20A, 50%, 1.6ms



Leakage current

0.5mA/110V

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Over Loading

≤120% constant current limiting, auto-recovery

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750



Withstand voltage

I/P-O/P:1.88KVac



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Net Weight

1.05Kg



Size

230*70*43mm (L*W*H)



packing

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

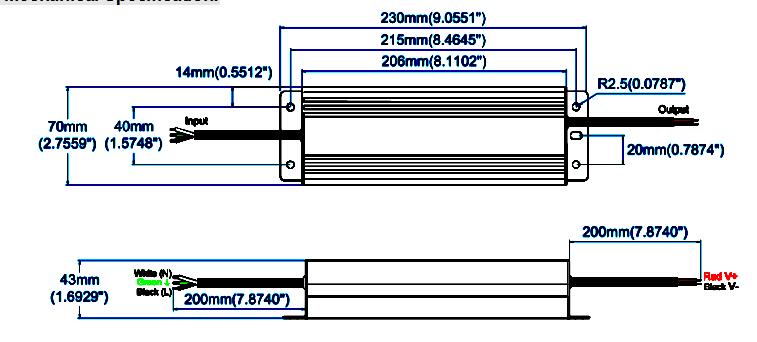

  Mechanical Specification

ul listed led driver

Input terminals "Black" and "White" to connect to AC L and N.

Output terminals "Red" to LED Positive side (+) , "Black"  to LED Negative side (-).

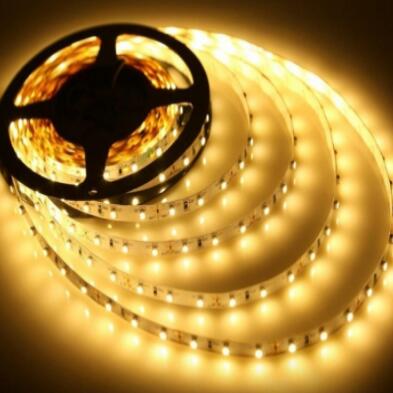

  Compatible Strip Lighting Type


CRE-LIGHT Illuminations indoor / outdoor use: product encased in water-resistant silicone sleeve (IP67), resists Up to 1 meter of water for 30 mins, flexible LED light reels for universal application while works with 120w dimmable led driver.

120w dimmable led driver
