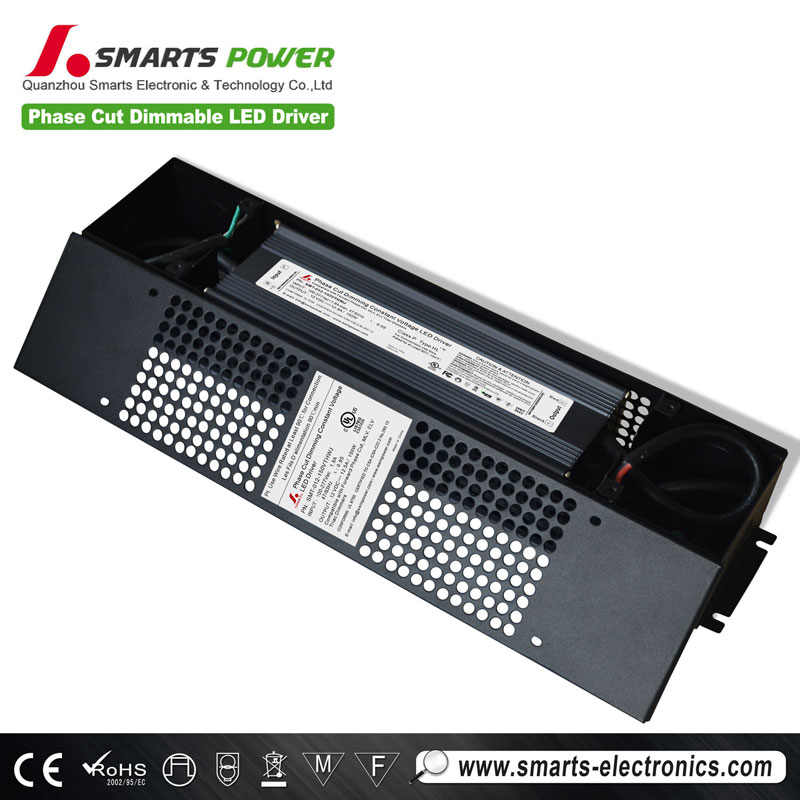

dimmable led driver led power supply 200w 12v with wiring junction box

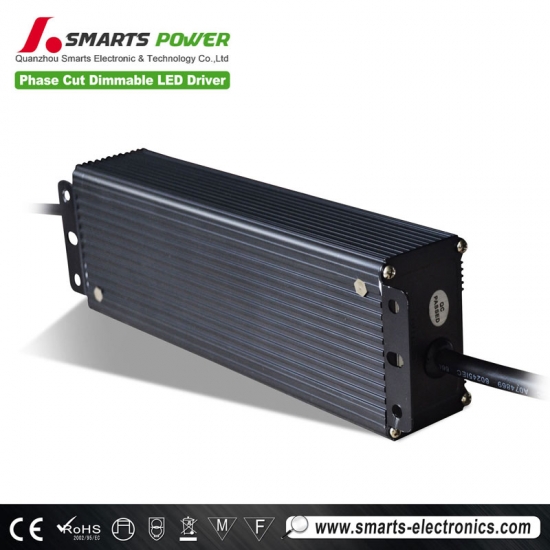

The phase dimming 200w dimmable led driver are designed to operate with most Lutron dimmer switches MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
Product parameters
model
SMT-012-200VTHWJ
SMT-024-200VTHWJ
Output
DC Voltage
12V
24V
Rated current
16.66A
8.33A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Rated power
200W
200W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
THD(Typ.) @full load
<20%
Power Factor ( Typ.）
0.98@120VAC 0.97@277VAC
0.97@120VAC 0.95@277VAC
Full Load Efficiency(Typ.)
>83%
>86%
AC Current（Typ.）
2.3A/110VAC
Inrush Current （Typ.）
15A, 50%, 1.6ms
Leakage current
﹤0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Net Weight
1.5Kg
Size
256*78*47mm (L*W*H)
packing
10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

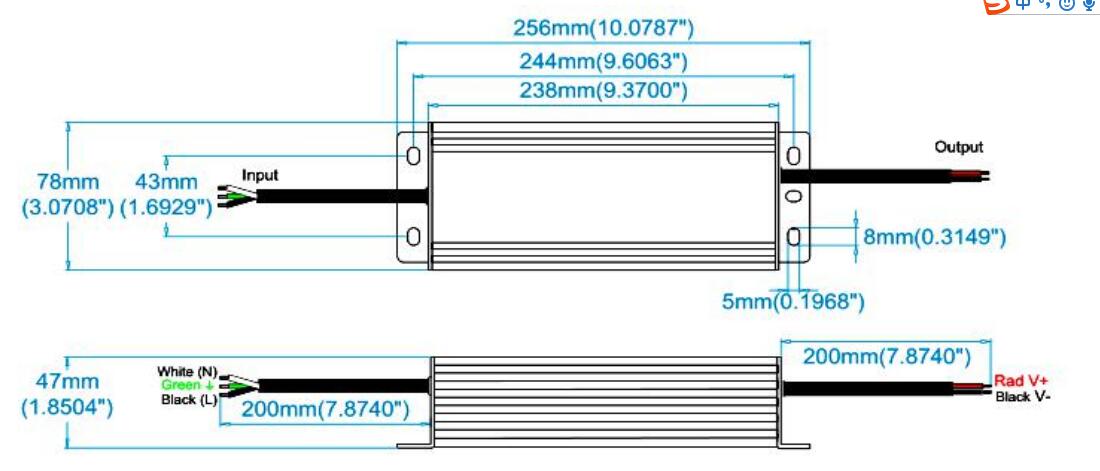

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
Compatible Strip Light Type

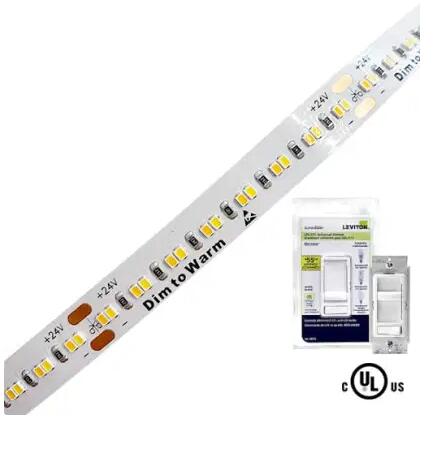

Lumicrest Dim To Warm LED Strip is an excellent choice for living areas and other intimate spaces – perfect for residences, hotels, bars and restaurants while work together with led power supply 200w – anywhere you want to evoke a warm and welcoming environment with comfortable lighting.
