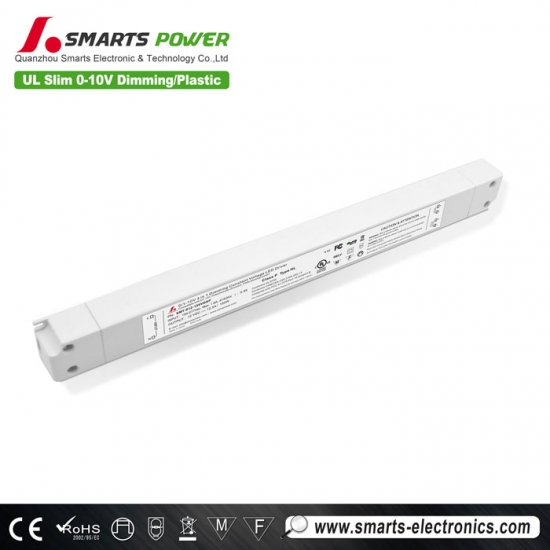

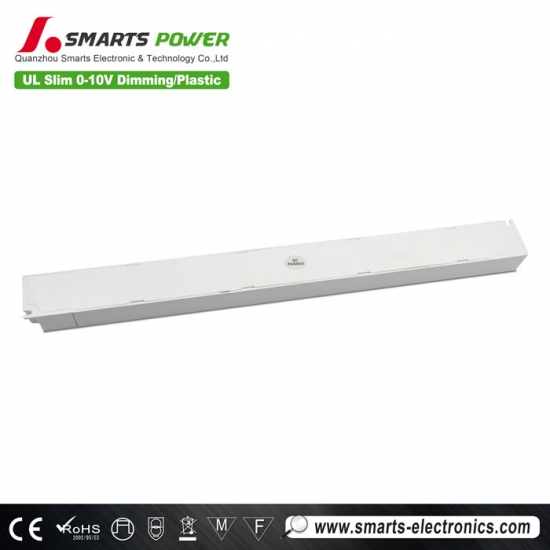

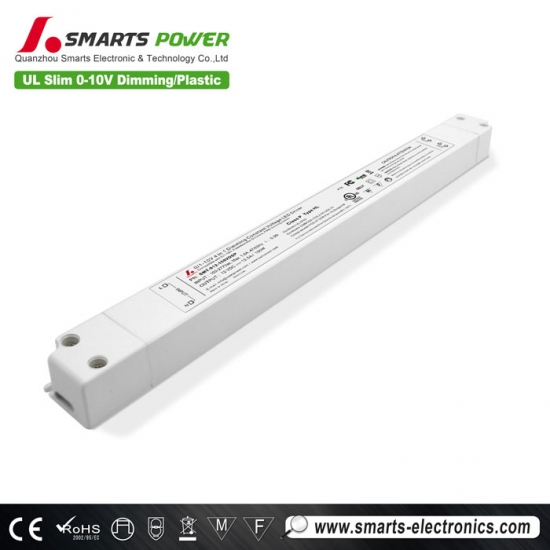

UL listed 12v 150w slim 0-10v dimmable led driver
SMT-012-150VDSP is slim led driver 150w 0-10v dimming. It has CE UL cUL FCC ROHS approved. Class P, type HL standard. It has 7 years warranty. Widely input voltage 110-277Vac. It can work well with AQ Lighting's strip lighting.
Product parameters
|
model |
SMT-012-150VDSP |
SMT-024-150VDSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
12.5Amp |
6.25Amp |
|
|
Rated power |
150W |
150W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% ±1% |
|
|
Input |
Voltage Range |
100-277 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.96/277V |
|
|
|
Full Load Efficiency（Typ.） |
85%@120VAC 87%@277VAC |
85%@120VAC 88%@277VAC |
|
|
AC Current（Typ.） |
1.10A/100VAC / 0.43A/277VAC |
|
|
|
Inrush Current（Typ.） |
11A,50%,1.04ms@120V ; 27A,50%,960us@277V |
|
|
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 +UL1310,CAN/CSA-C22.2 No.250.13 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
|
|
Others |
Weight |
0.5Kg |
|
|
|
Size |
330*30*22mm (L*W*H) |
|
|
|
packing |
30PCS/CTN Carton size:375*270*175mm
|
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

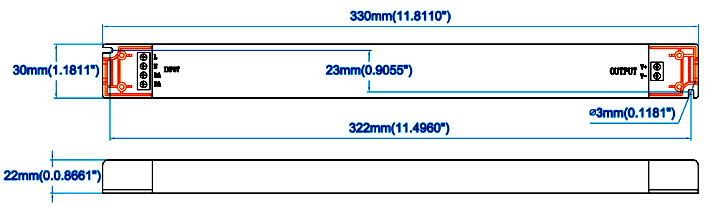

Mechanical Specification
CompatibleDimmer Type

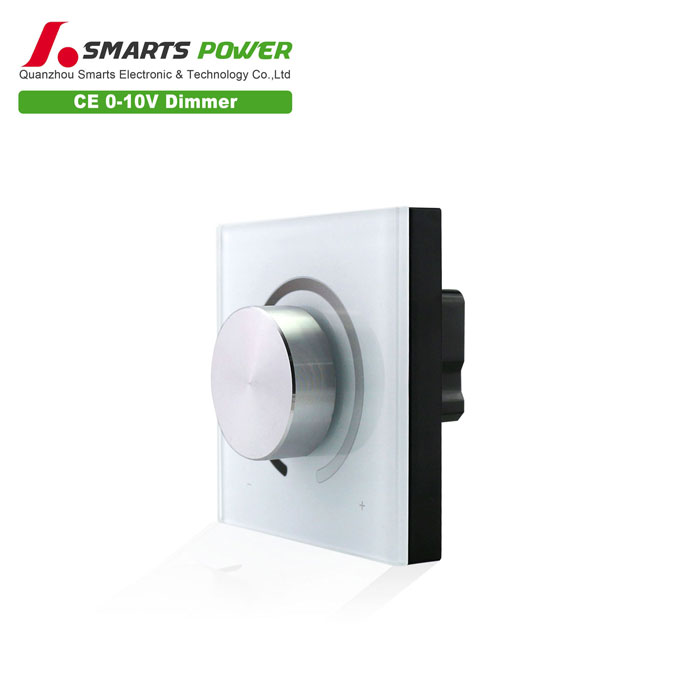

SMT50-R-D1 is 0-10v dimmer. It has CE ROHS certificate for European market. Input voltage 100-265Vac, input max. load switching capacity 350w. Output current 50mA. It can dimming well with gkoled's led strip.
Related Products

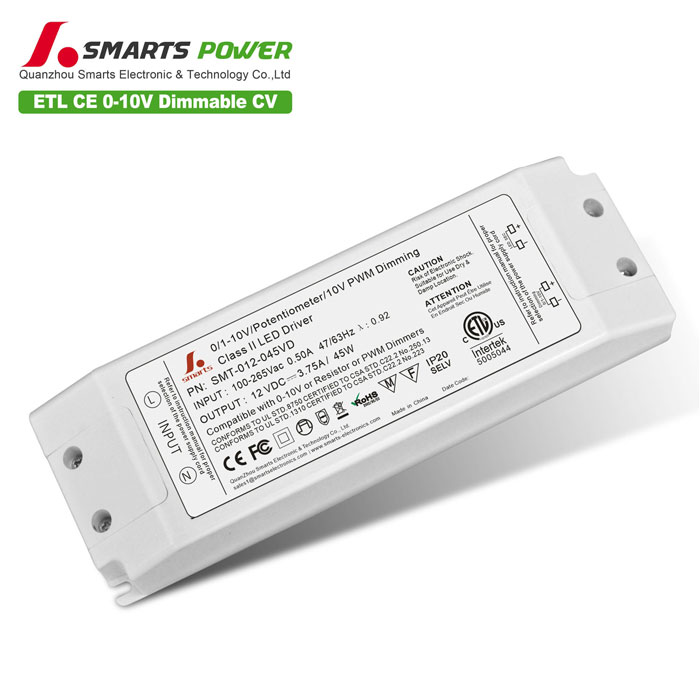

It is ETL CE FCC ROHS listed 12v 45w 0-10v dimmable led driver. It can be paired with junction box to meet electronic code for indoor projects only. It has 5 years long warranty.
