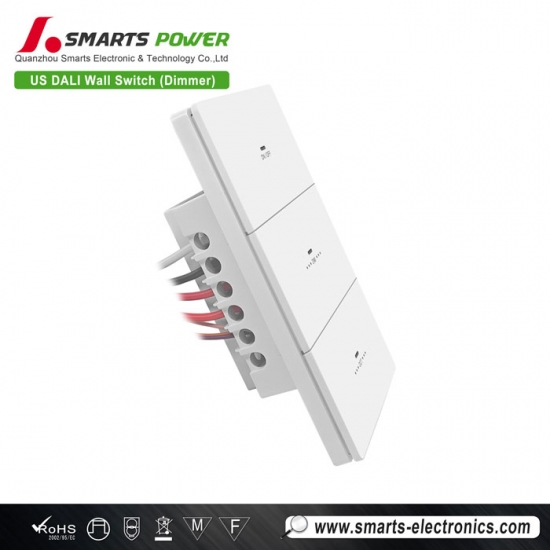

100-277vac multi channel 0 10 dimmer led dimmer 3 button for ledlighting


0 10v dimmer led
0 10v dimmer led 0 10v dimmer led 0 10v dimmer led

100-277vac multi channel 0 10 dimmer led dimmer 3 button for ledlighting

100-277vac general import power supply 0 10v dimmer dual-way design, equivalent to 2 0 10v dimmer assembly in one connected tank. Save space. Easy and convenient way to use, suitable for indoor home lighting.

  • item no.:

    SMT-U-2CP2CVDW3

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    Max.50mA

  • Certification:

    ETL,CE, FCC, ROHS

  • Warranty:

    5 years
inquiry now
product details

100-277vac multi channel 0 10 dimmer led dimmer 3 button for ledlighting

SmartsPower's newly upgraded three-button 0-10V dimmer switch is designed specifically for smart home lighting projects. It uses a native 0-10V signal input. Installation is quick and easy, requiring no professional commissioning. It's simple to operate and highly adaptable.


  Installation Instructions

Please read before installing.

Model
 SMT-U-2CP2CVDW3
 SMT-U-2CP2CVDG3
Colour
 White
 Grey
Maximum Capacity (Limited by whichever is achieved first)
Input Voltage:AC110-277 V~50 / 60 Hz
0-10V-Sink
 50mA
loads
 120V:500W    277V:1000W


1、Turn power OFF at circuit breaker


WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.

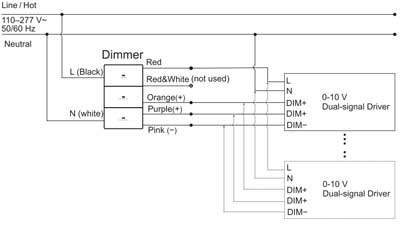

4、Connect the Dimmer (1)

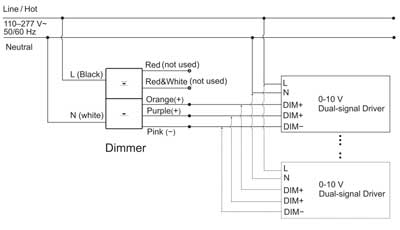

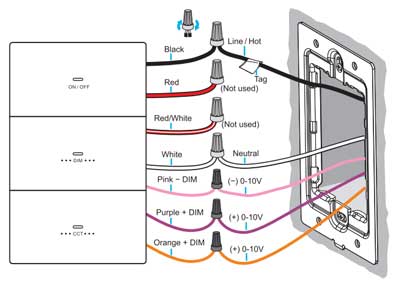

Simple Wiring
Note: The dimmer and 0-10V Ballast/driver are independently connected to the input power (AC mains)

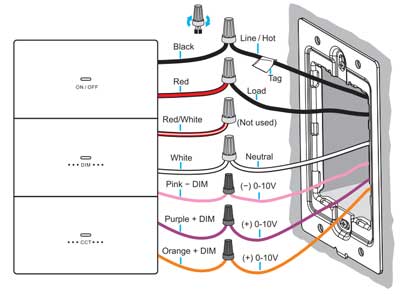

Simple Wiring



Note:Connect the AC input live wire (L) of the 0-10V Ballast/driver to the dimmer's Load wire(Red).
Troubleshooting:
If the dimmer can start ,but the 0-10V Ballast/driver fails to start, please check whether the hot wire and neutral wire at the dimmer (or 0-10V Ballast/driver ) input are reversed.

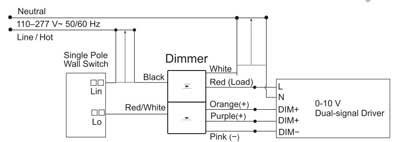

5、Connect the Dimmer (2)

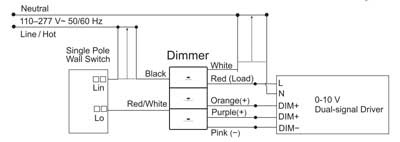

3-Way Wiring



Note: Use standard single pole switch can be combined with a controller to form a dual-control switch system


6、Mount the Dimmer

Press and snap into place to complete installation

7、Turn power ON at circuit breaker

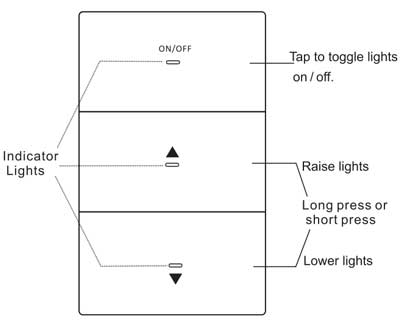

8、Setup Dimmer Operation

Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly

Low-End Trim Adjustment
Optional
1.With the lights on and set to the lowest light level，turn the low-end trim dial counterclockwise until there is no flicker.
2.Turn lights off and on. If lights do not turn on or are not stable, turn the low-end trim dial clockwise slightly until there is no flicker.

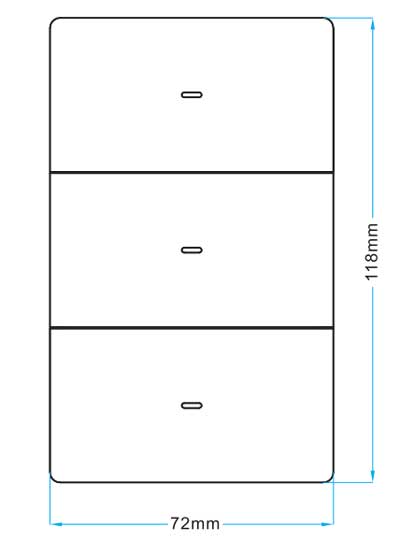

9、Product Dimension

Click Send Email for Details
 Click Teams 24 hours Online Reply
 Scan to start our communication
Back to top



  Related Products

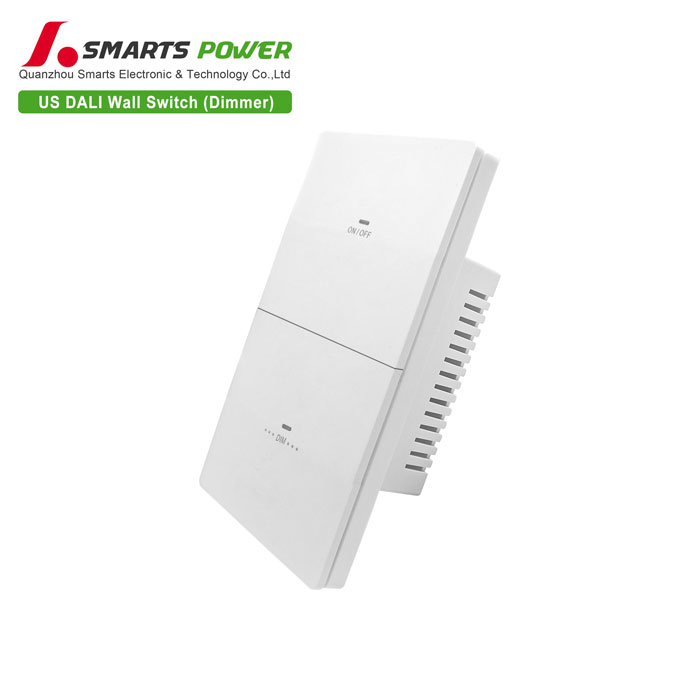

0 10v dimmer for led lightingThis 3-button 0-10V dimmer wall switch features a plastic housing. The dimmer and 0-10V ballast/driver are connected independently to the input power supply. Installation is quick and easy, requiring no professional commissioning, and comes with a 5-year warranty.


Mode：SMT-U-1CVDW3

intput voltage：100-2277vac

Size : 118*72*37.5MM
Weight：0.2Kg/pcs
