Non-dimmable LED Driver

1050mA 63W 0-10V/PWM dimmable Constant Current LED driver

Item No. SMT-060-1050CD
Input: 100-265VAC / 47-63Hz
Output: 30-60VDC   0-1050Amp  63Watt
PF:>0.9
IP rate: IP67
Warranty: 3years
  • item no.:

    SMT-060-1050CD
  • brand:

    SMARTS
inquiry now
product details

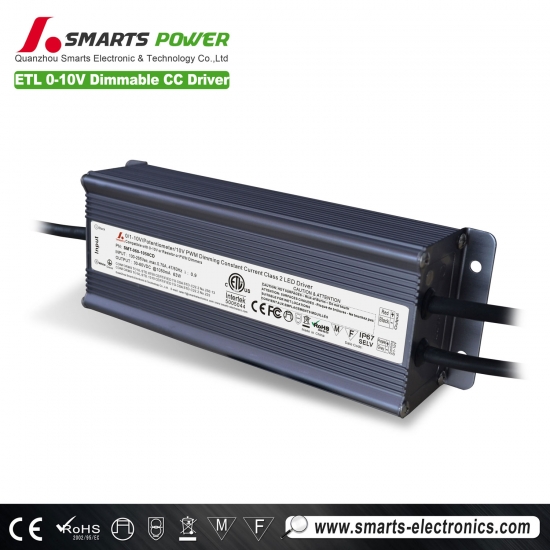

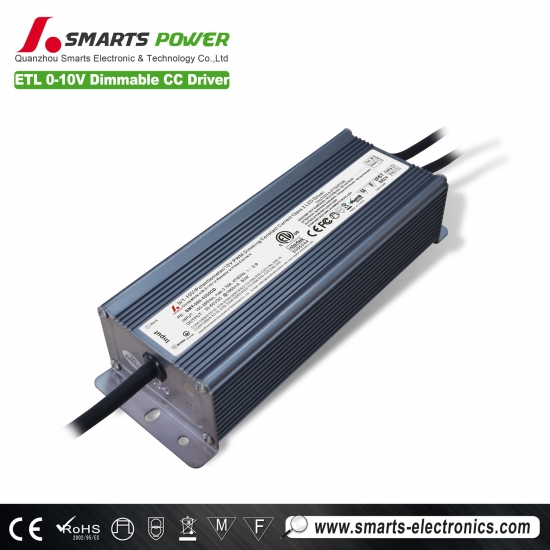

Product name: 1050mA 63W 0-10V/PWM dimmable Constant Current LED driver

  Specifications


1. Modle: SMT-060-1050CD
2. Input: 100~265vAC / 47-63HZ
3. Output : 30-60V  0-1050mA  63Watt
4. Case material:Aluminum
5. Waterproof rate: IP67
6. Unit weight: 1100g
7. Product size: 200*68*45mm
8. Box size: 324*298*188mm
9. Pack qty: 10pcs/ctn
10.Pack weight: 13.2kg/ctn
11.Three years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

  Features


1. High efficiency,save energy ,protected environment.
2. High stability and low ripple, increase light efficiency and decrease light attenuation.
3. Meet to safety standard and EMC
4. Assure LED stability long lift and light efficiency by constant voltage.
5. Integrity protection,over loading, over voltage ,over current.
6. Protections:Short circuit/Overload/Over temperature
7. Cooling by free air convection
8. 100% full load burn-in test.
9. Suitable for LED lighting

  Environment


1. Working temp: -30~+50℃ (Refer to output load derating curve)
2. Working humidity: 20~99% RH non-condensing(Waterproof)
3. Storage temp. humidity:? -40~+80℃,10~99%RH

  Safety


* Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
* Withstand Voltage : I/P-O/P: 3000KVAC
* Isolation Resistance : I/P-O/P:100M Ohms/500VDC


  Applications


Our products are widely used in various industries, such as
* indoor LED illuminating lights
* LED Neon
* LED urban Decoration
* LED Lighting Advertising,
* LED Display
* Safety Protection Apparatus
* Telecommunications
* Networks

* Vehicle Lights Controller Panels,etc.
