120v 240v to 12v low voltage dimmable transformer for strip lighting

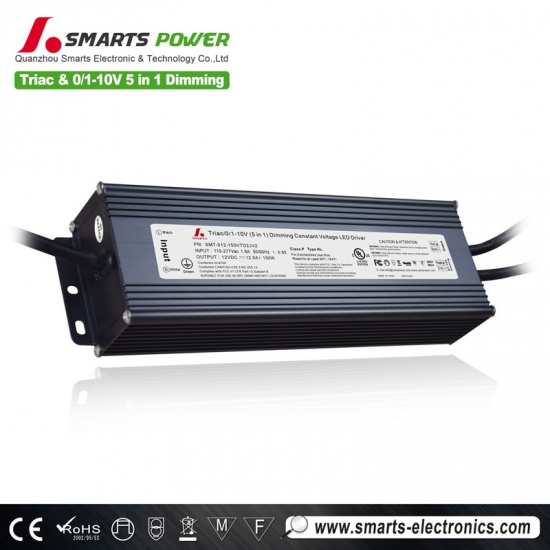

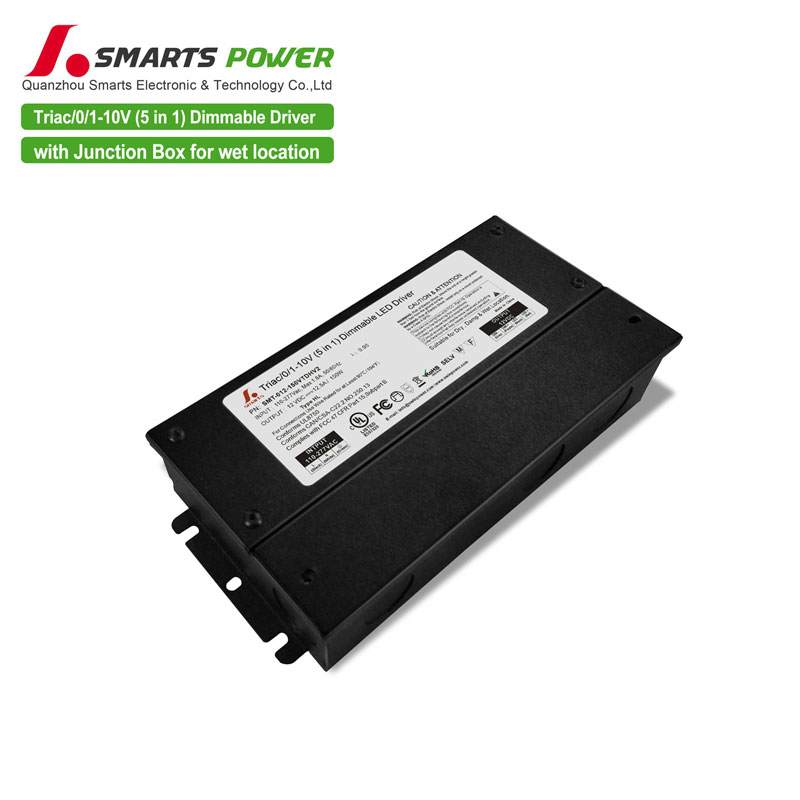

Low voltage transformer 12v 150w is the ultimate power supply for flawless dimming capabilities in any type of project. Offering a wide voltage input range, it is perfectly compatible with single channel LED products, can take a replacement of Magnitude’s Magnetic 12V dimmable LED driver.
Product parameters
model
SMT-012-150VTD2JV2
SMT-024-150VTD2JV2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
12.5A
6.25A
Voltage Regulation
±0.5%
Load Regulation
±2 %
±1 %
Rated power
150W
150W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
THD(Typ.) @full load
<20%
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.97@120VAC 0.94@277VAC
Full Load Efficiency(Typ.)
85%@120VAC 86%@277VAC
85%@120VAC 87%@277VAC
AC Current（Typ.）
1.8A/110VAC
Inrush Current （Typ.）
15A, 50%, 1.4ms @120VAC; 30A, 50% 1.4ms @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Net Weight
1.5Kg
Size
256*78*47mm(L*W*H)
packing
340*280*185mm 10pcs /CTN
Notes
1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

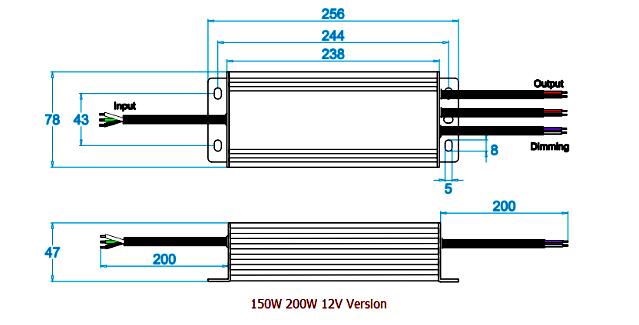

Mechanical Specification
Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC
Output cable 2*16AWG,Red" (+) to LED Positive side (+) , "Black"(-) to LED Negative side (-).
noted that 12V 200W is with 2 group of 2*16AWG output wires to separate the output current.)
Dimming cable 2*18AWG,DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V
dimmer signal (-)
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

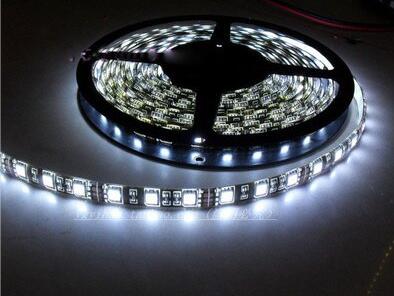

Compatible Strip Lighting Type
DELIGHT 12VDC low voltage LED strip lights are perfect solution together with 12v dc transformer for a wide variety of lighting applications, such as under-cabinet lighting, decorative lighting, flexible LED strip lighting.
Related Products
|
Mode：SMT-012-150VTDHV2 |
