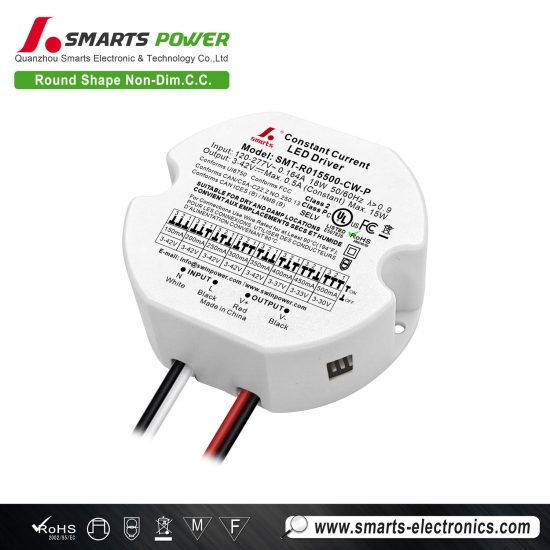

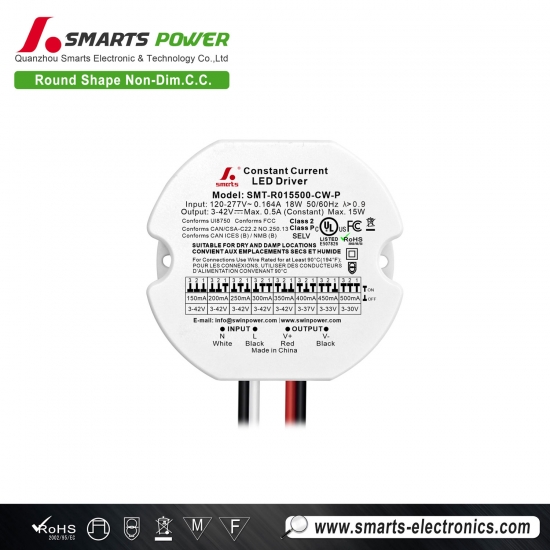

150–500mA Output 15W Constant Current Round LED Driver for led lighting
the 15W constant-current round LED driver replaces multiple fixed-output units. Set 150–500mA by DIP switch across a 3–42V window and cover assorted LED modules and fixtures. The 120–277VAC input with PF correction runs at up to 80% efficiency; short-circuit and over-temperature protection and silent convection cooling keep it maintenance-free. Compact, dry/damp-rated, and backed by a 7-year warranty.

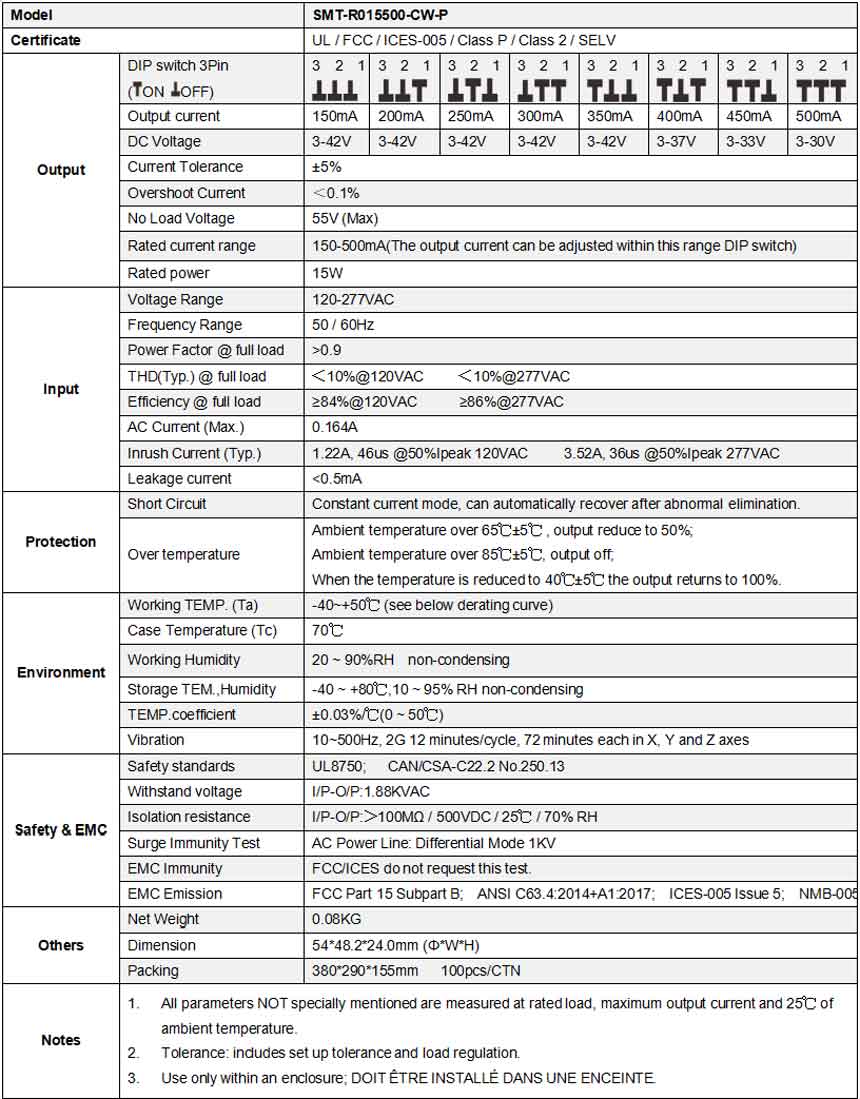

Specification
 |
 |
 |
 |

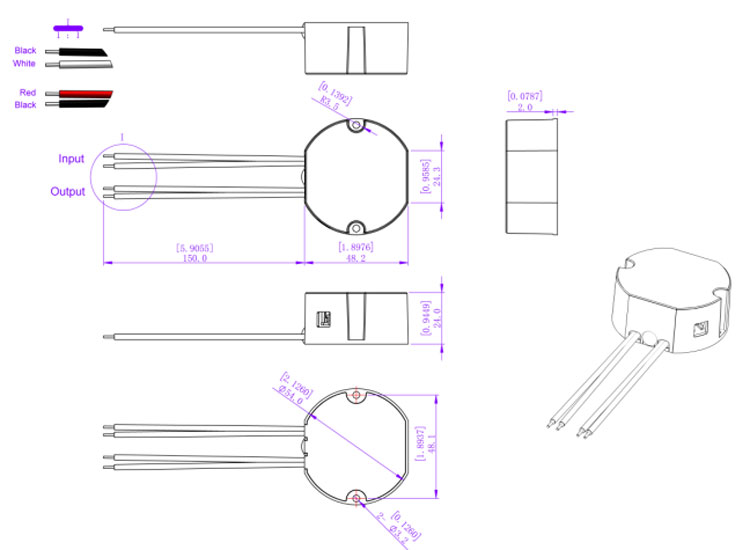

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
Dimming Operation
Related Products

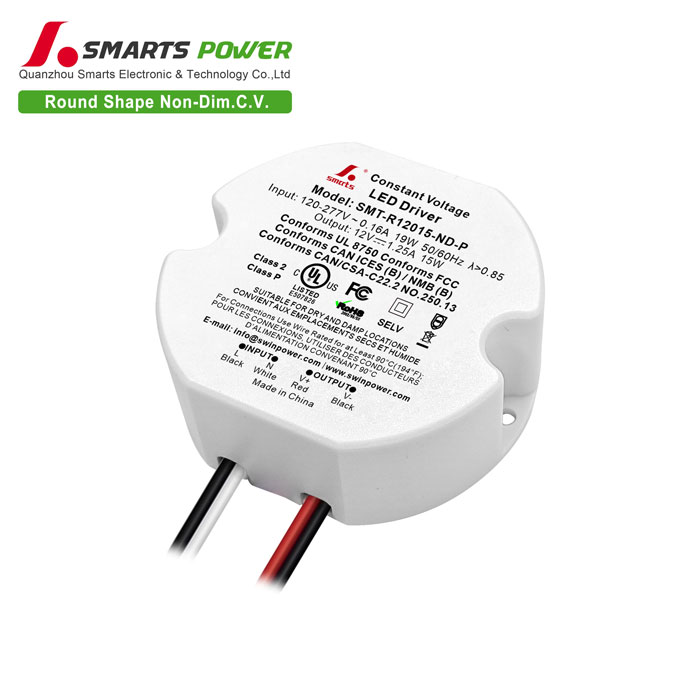

The 15W round LED driver outputs stable constant voltage across a 120–277VAC input, fitting homes, shops, and offices alike. Active PFC and up to 86% efficiency cut waste, while short-circuit and overload protection shield your LEDs.
