Non-dimmable LED Driver
Non dimmable Constant Voltage LED Driver
home >Round Shape / Small size LED Driver >Non dimmable Constant Voltage LED Driver >

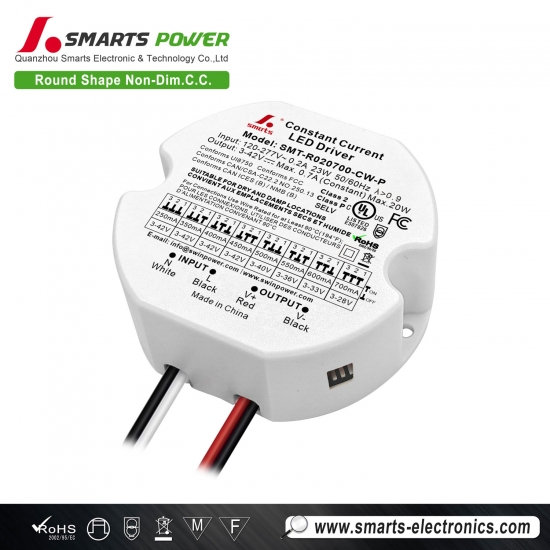

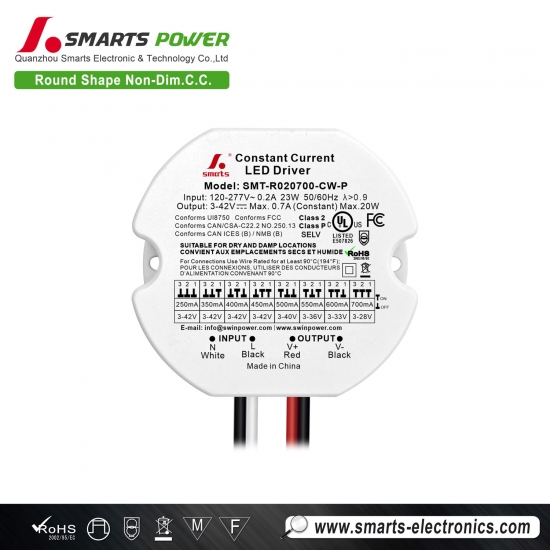

20W 250–700mA Adjustable Constant Current Round LED Driver Power Supply for indoor


20W 250–700mA Adjustable Constant Current Round LED Driver Power Supply for indoor

Stock less, cover more: the 20W constant-current LED driver spans 250–700mA via DIP switch, matching a range of LED loads on one compact round unit. Its 120–277VAC input and PF-corrected design suit both residential and commercial sites, while over-temperature and short-circuit protection guard every install.

  • item no.:

    SMT-R020700-CW-P

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    250-700mA

  • Working Mode:

    Constant Current

  • Certification:

    UL,FCC, CE, ROHS

  • Warranty:

    7 years
inquiry now
product details

20W 250–700mA Adjustable Constant Current Round LED Driver Power Supply for indoor

The 20W round plastic LED driver provides constant-current output with a DIP-switch adjustable 250–700mA over 3–42V. Running on 120–277VAC with power factor correction and up to 80% efficiency, it keeps power stable for LED modules and downlights. Short-circuit and over-temperature protection, fanless convection cooling, and a dry/damp-rated housing round out a dependable, non-dimming design. 7-year warranty.

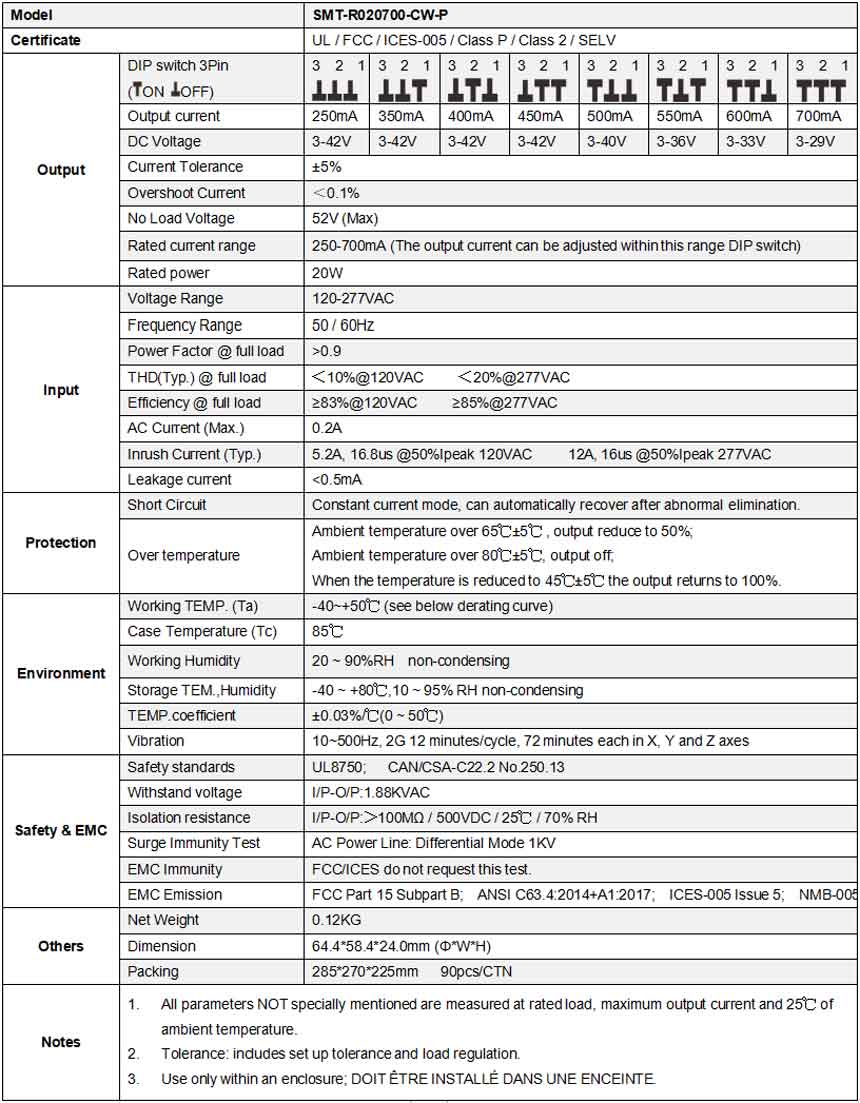

  Specification


Click Send Email for Details
 Click Teams 24 hours Online Reply
 Scan to start our communication
Back to top

  Mechanical Specification

American wire gauge
CO4C
Input wire Black(L) White(N) (2*18AWG)
Output wire Red(V+) Black(V-) (2*22AWG)


  Dimming Operation


  Related Products

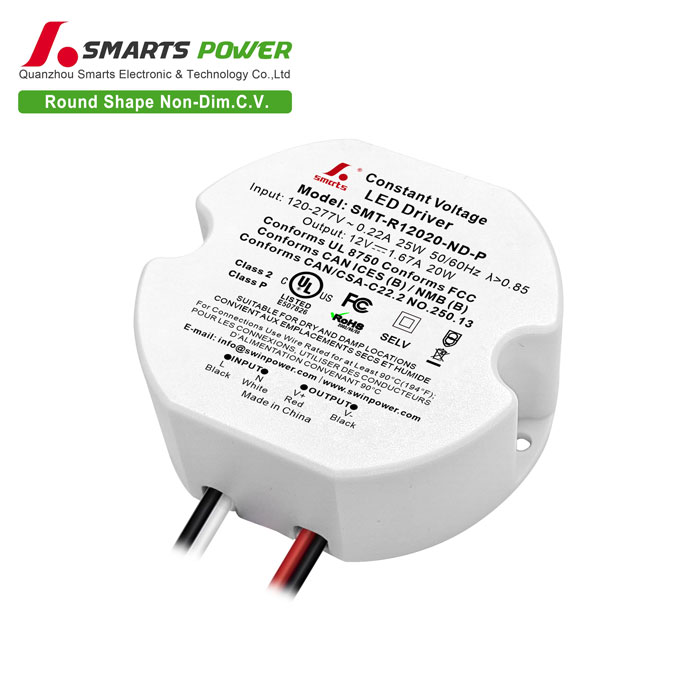

The 20W round LED driver brings constant-voltage output across 120–277VAC to a wide range of LED fixtures. Active PFC and up to 86% efficiency keep power clean and costs low.



Mode：SMT-R12020-ND-P

intput voltage：100-277vac

Size : 54*48.2*24MM
 output voltage：12vdc
Weight：0.103Kg/pcs
