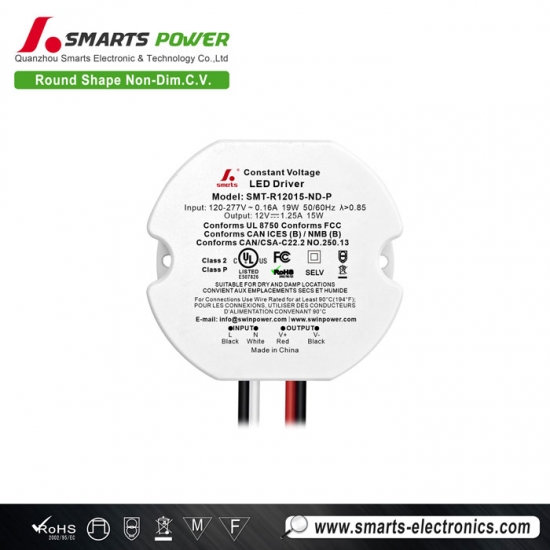

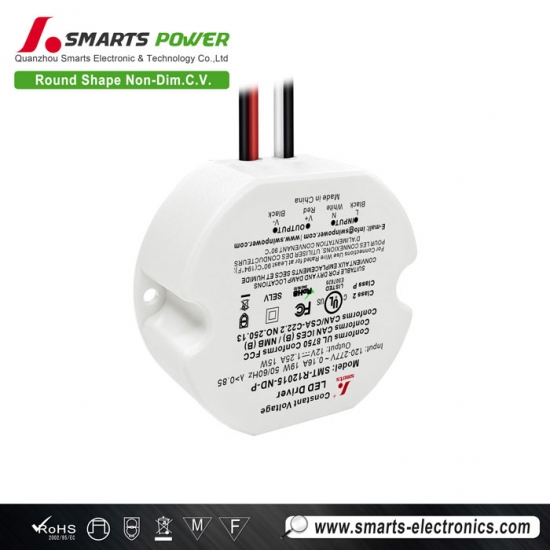

Reliable in a Minimal 15W Non-Dimming Round LED Driver for indoor
Perfect for under-cabinet lights, display cases, and small signage. The compact non-dimming design mounts easily and stays cost-effective, and the damp-rated enclosure suits humidity-prone spots. Active PFC with short-circuit/overload protection adds trusted safety and efficiency. Up to 86% efficiency and a 7-year warranty make it a reliable small investment.
Specification
| Model | SMT-R12015-ND-P | SMT-R24015-ND-P | SMT-R48015-ND-P | |
| Certificate | UL / Class P / Class 2 / SELV / RoHS / REACH | |||
| Output | DC Rate Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±3% | ±2% | ±2% | |
| Load Regulation | ±2% | ±1% | ±1% | |
| Voltage Regulation | ±0.5% | |||
| Rated current | 1.25A | 0.625A | 0.313A | |
| Rated power | 15W | |||
| Overshoot | 8% | 5% | 5% | |
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor @ full load | >0.85 | |||
| THD(Typ.) @ full load | ≤8%@120VAC ≤20%@277VAC | |||
| Efficiency @ full load |
79%@120VAC 81%@277VAC |
82.4%@120VAC 83.9%@277VAC |
82.5%@120VAC 84%@277VAC |
|
| AC Current (Max.) | 0.16A | |||
| Inrush Current (Typ.) | 1.4A,2 2.4us @50%Ipeak 120VAC 2.36A, 25.2us @50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Shut down o/p voltage, recovers automatically after fault condition is removed. | ||
| Over Load | 105%~110% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Environment | Working TEMP. (Ta) | -40~+50℃ | ||
| Case Temperature (Tc) | 90℃ | |||
| Working Humidity | 20 - 90%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 2G 10 minutes/cycle, X Y Z axis 72minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P: 1.88KVAC | |||
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70% RH | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | FCC Part 15 Subpart B | |||
| Surge Immunity Test | AC Power Line: Differential Mode 2 kV | |||
| Others | Net Weight | 0.11KG | ||
| Dimension | 54*48.2*24.0mm (Φ*W*H) | |||
| Packing | 380*290*155mm 100pcs/CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Use only within an enclosure; DOIT ÊTRE INSTALLÉ DANS UNE ENCEINTE. | ||||
 |
 |
 |
 |
Mechanical Specification
| When the input voltage is 120Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 40 |
| 13A | 52 | |
| 16A | 64 | |
| 20A | 81 | |
| 25A | 101 | |
| When the input voltage is 277Vac, the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
|
C type(breaking capacity:6KA) |
10A | 83 |
| 13A | 108 | |
| 16A | 133 | |
| 20A | 166 | |
| 25A | 208 | |
