2-channel 2 key button 0-10v dimmer switch for Dimming Control


0 10v led dimmer
0 10v led dimmer 0 10v led dimmer 0 10v led dimmer

2-channel 2 key button 0-10v dimmer switch for Dimming Control

This wall-mounted 0-10V dimmer utilizes dual-signal 0-1V0 transmission technology. No professional commissioning is required. The dimmer and 0-10V ballast/driver are independently connected to the input power supply. The dimming range is from 0.1% to 100%, offering ultra-deep dimming.

  • item no.:

    SMT-U-2CVDW2

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    Max.50mA

  • Certification:

    ETL,CE, FCC, ROHS

  • Warranty:

    5 years
inquiry now
product details

2-channel 2 key button 0-10v dimmer switch for Dimming Control

Smartspower's new generation of intelligent dimmers leads the lighting control technology and is compatible with any 0-10V dimmable LED lamp or power supply on the market. It can be installed on the wall and is easy to operate and use. Suitable for home lighting use


  Installation Instructions

Please read before installing.

Model
 SMT-U-2CVDW2
 SMT-U-2CVDG2
Colour
 White
 Grey
Maximum Capacity (Limited by whichever is achieved first)
Input Voltage:AC110-277 V~50 / 60 Hz
0-10V-Sink
 50mA
loads
 120V:500W    277V:1000W


1、Turn power OFF at circuit breaker


WARNING: SHOCK HAZARD.
May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.
2、Remove existing device & Mount the controller fixed seat

3、Label and remove existing wires

To assist in the wiring of the new control, label the wallbox wires before removing them from the existing device.
For screw terminal products, tag the wire from the different color screw.


4、Connect the Dimmer (1)

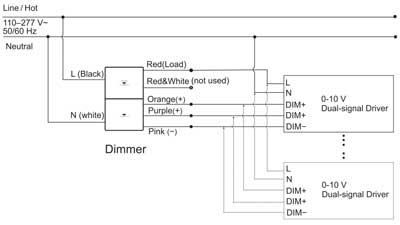

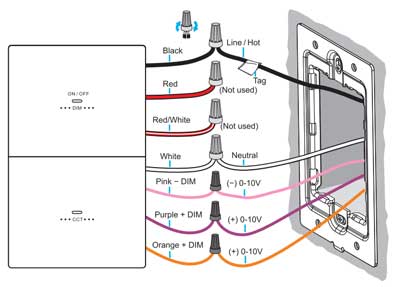

Simple Wiring
Note: The dimmer and 0-10V Ballast/driver are independently connected to the input power (AC mains)

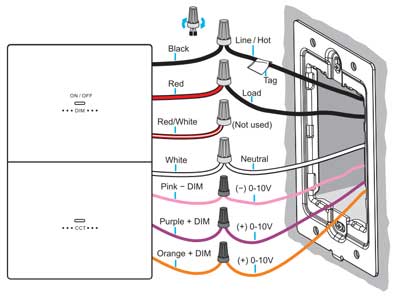

Simple Wiring



Note:Connect the AC input live wire (L) of the 0-10V Ballast/driver to the dimmer's Load wire(Red).
Troubleshooting:
If the dimmer can start ,but the 0-10V Ballast/driver fails to start, please check whether the hot wire and neutral wire at the dimmer (or 0-10V Ballast/driver ) input are reversed.

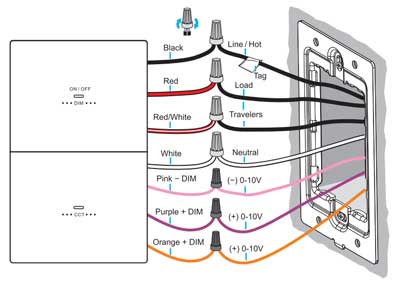

5、Connect the Dimmer (2)

3-Way Wiring



Note: Use standard single pole switch can be combined with a controller to form a dual-control switch system


6、Mount the Dimmer

Press and snap into place to complete installation

7、Turn power ON at circuit breaker


8、Setup Dimmer Operation

Note:When the dimming button (long press) reaches maximum or minimum brightness. The indicator light blinks slowly

Low-End Trim Adjustment
Optional
1.With the lights on and set to the lowest light level，turn the low-end trim dial counterclockwise until there is no flicker.
2.Turn lights off and on. If lights do not turn on or are not stable, turn the low-end trim dial clockwise slightly until there is no flicker.

9、Product Dimension
