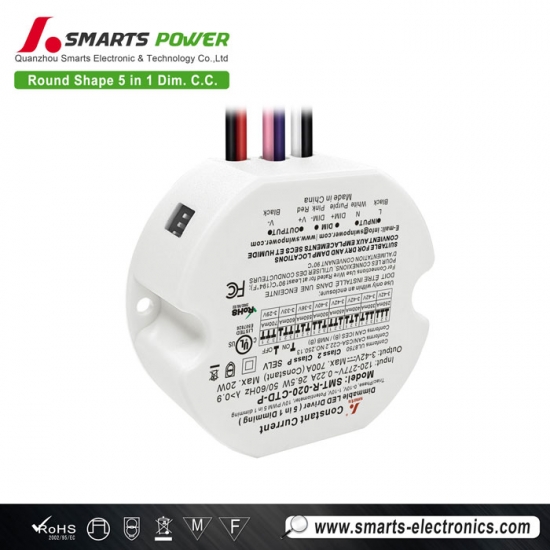

250MA-700MA triac & 0 10v dimmable constant current led driver for Plastic housing

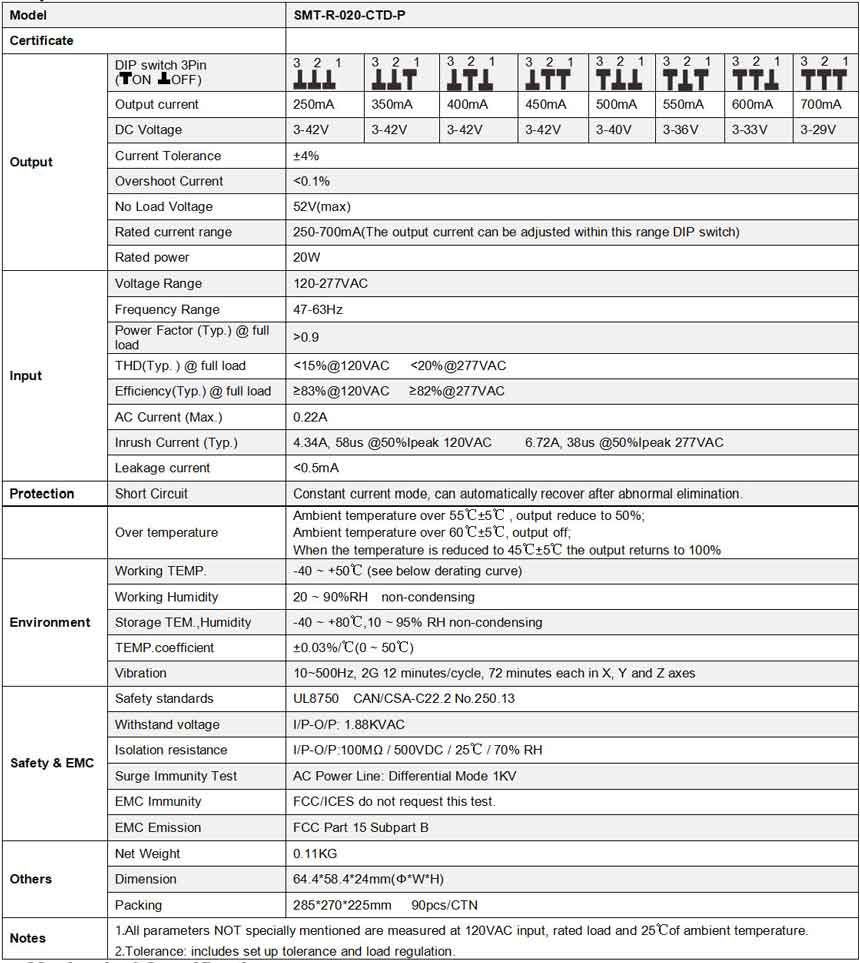

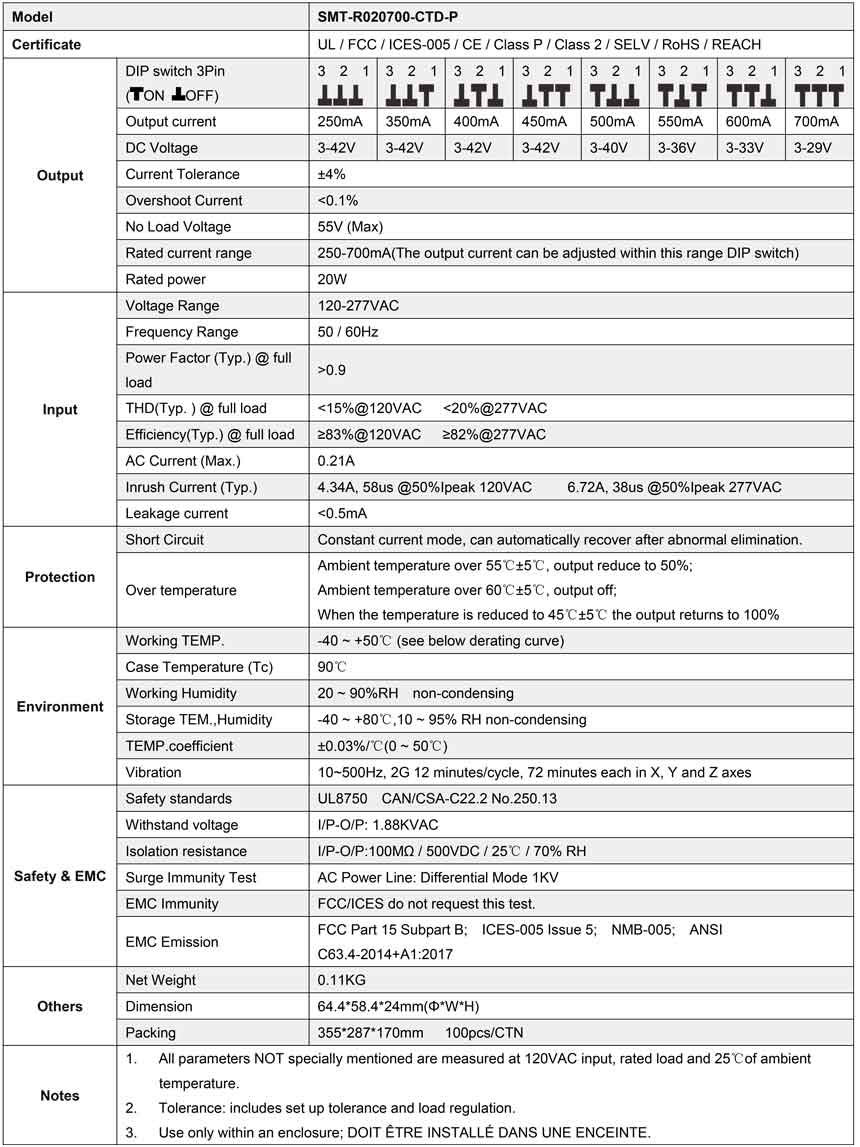

Specification
 |
 |
 |
 |

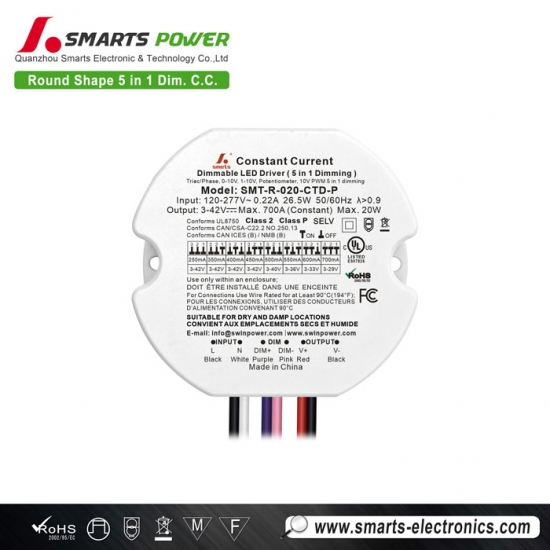

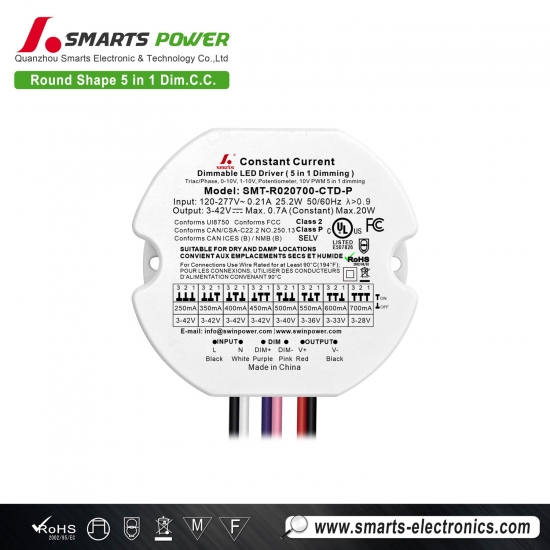

Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |

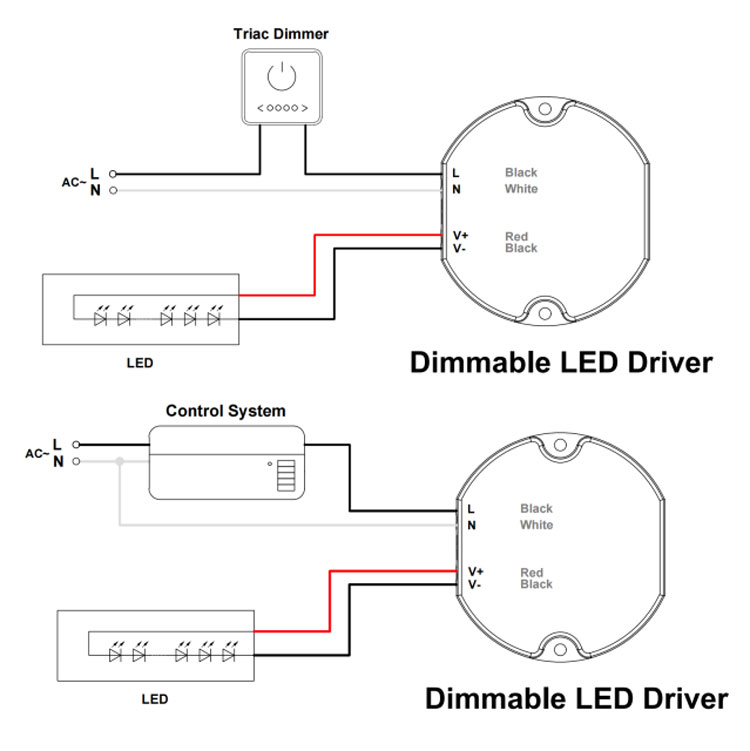

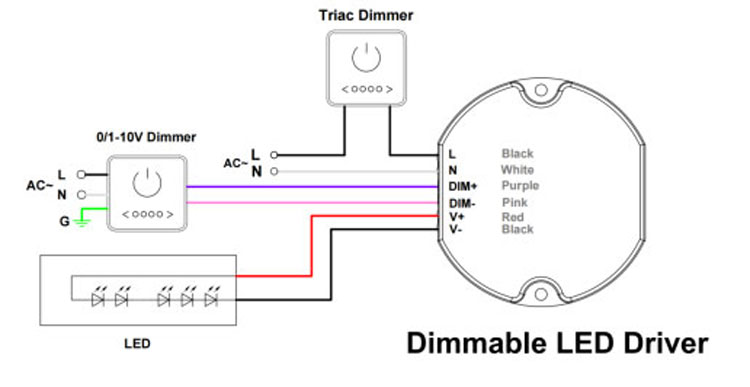

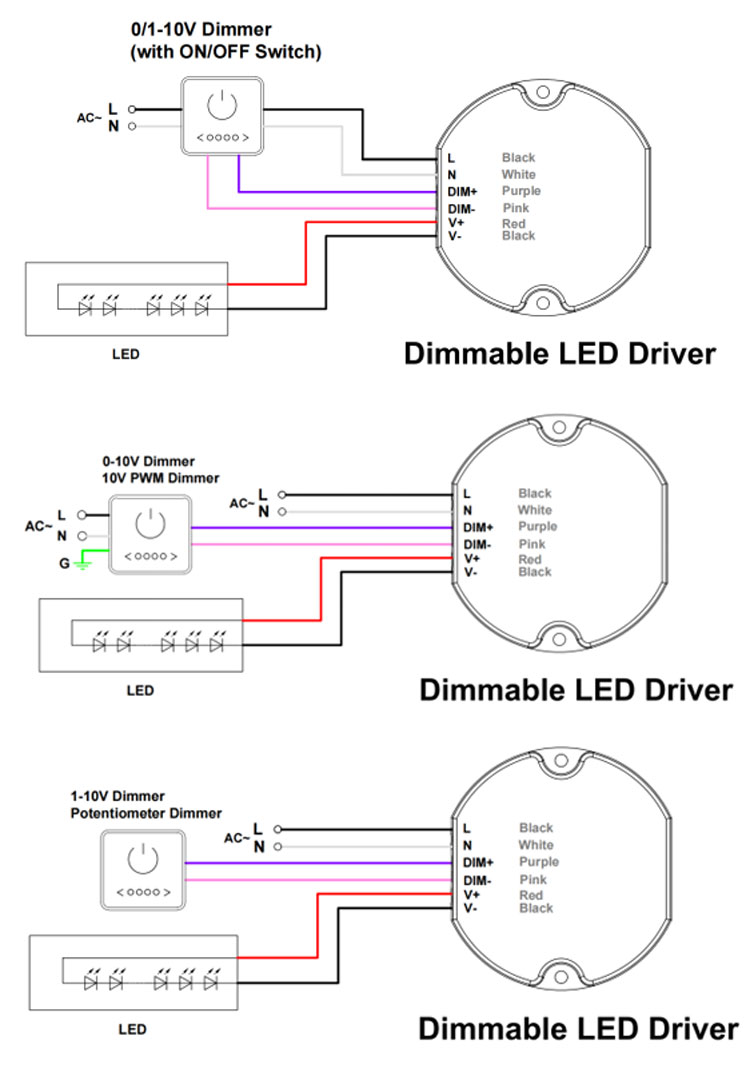

Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products
This TRIAC & 0-10V dimmable LED power supply features constant voltage operation and an efficiency of up to 78%. It offers excellent heat dissipation and a compact design for quick, easy installation. It is UL-certified, compliant with global lighting safety standards, and backed by an extensive 7-year warranty.

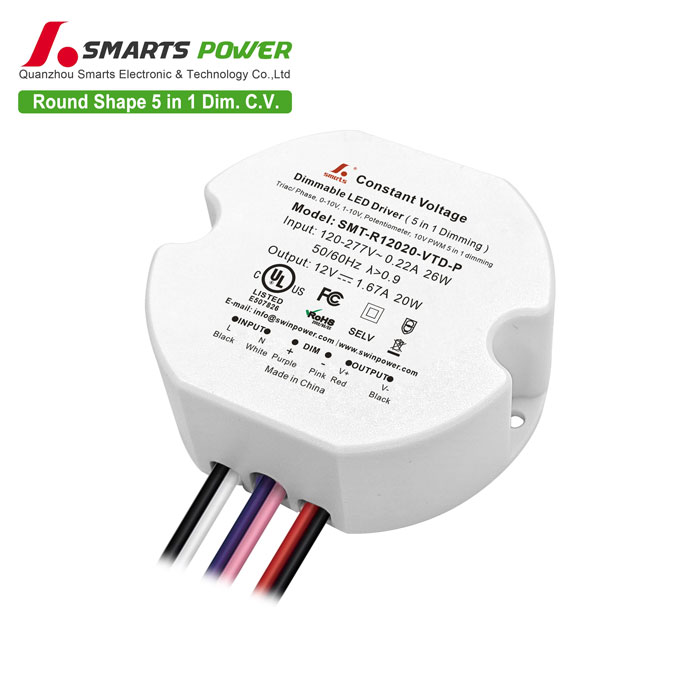

Mode：SMT-R12020-VTD-P intput voltage：100-277vac

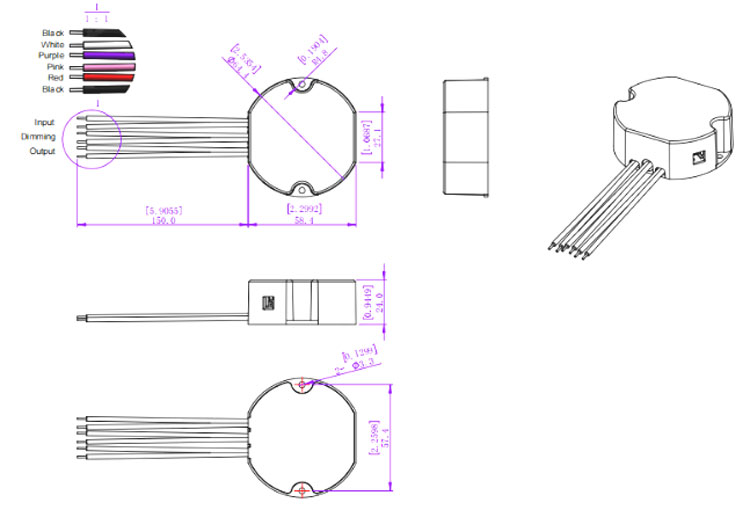

Size :64.4*58.4*24MM |
