triac & 0 10v 30W dimmable constant current led driver power supply 300ma-1050ma

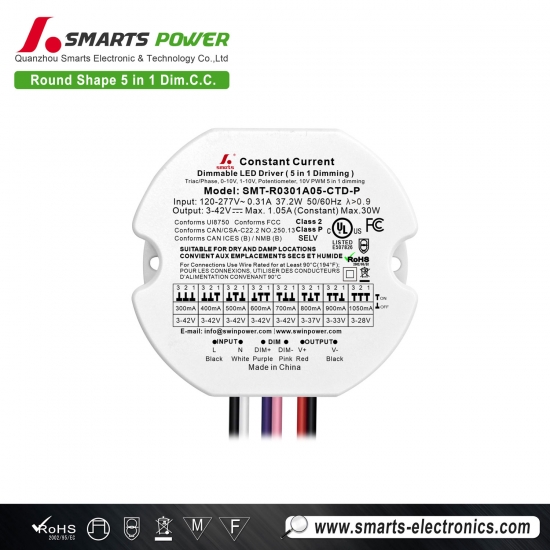

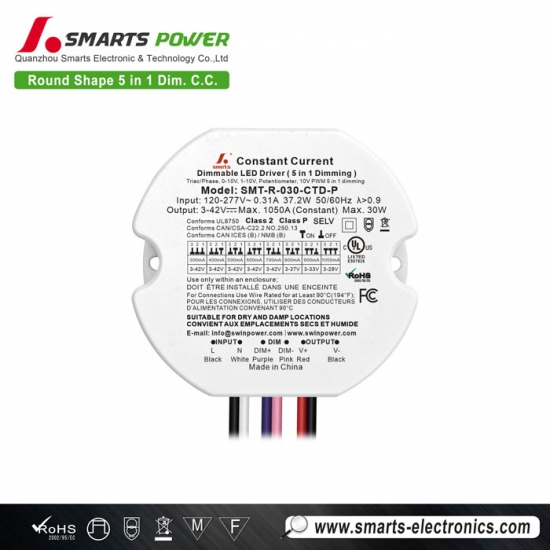

This TRIAC & 0-10V dimmable LED power supply features a circular plastic housing design and is compatible with most TRIAC and 0-10V dimmers on the market. It offers smooth, stable, and flicker-free dimming across the 0–100% range and comes with a 7-year warranty.

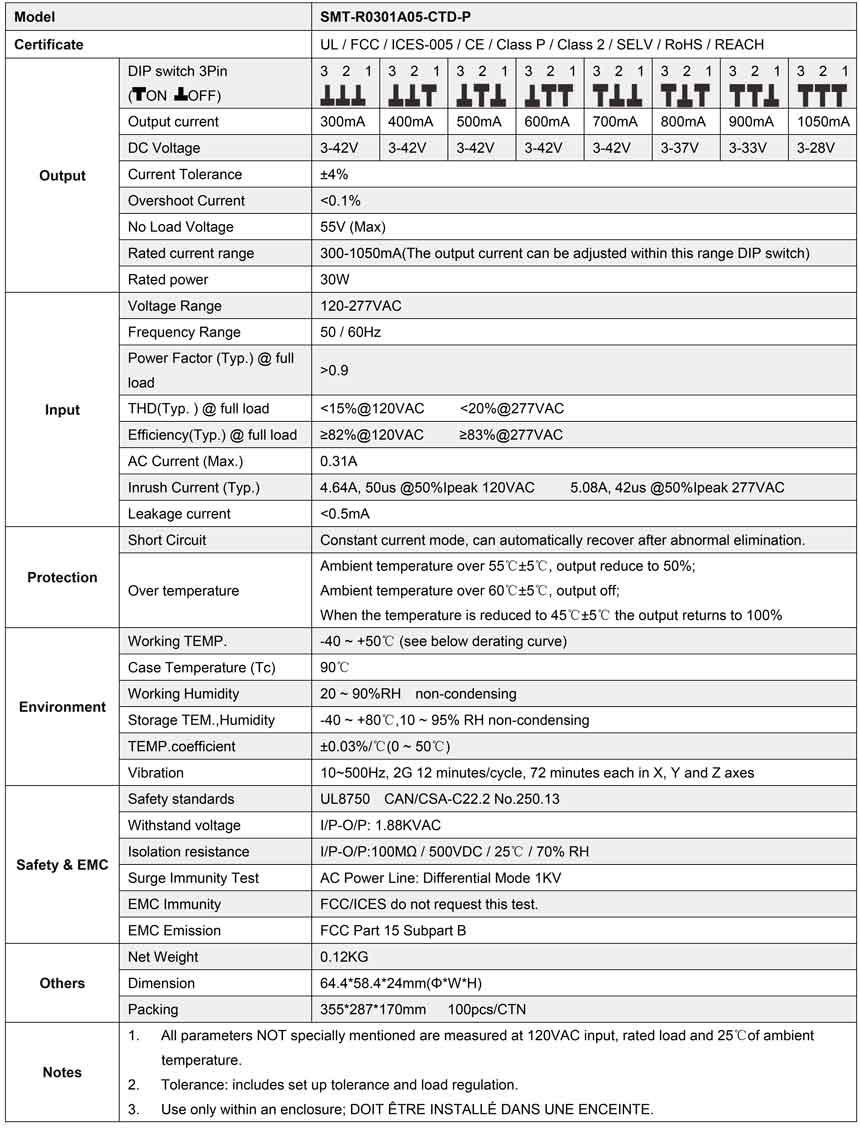

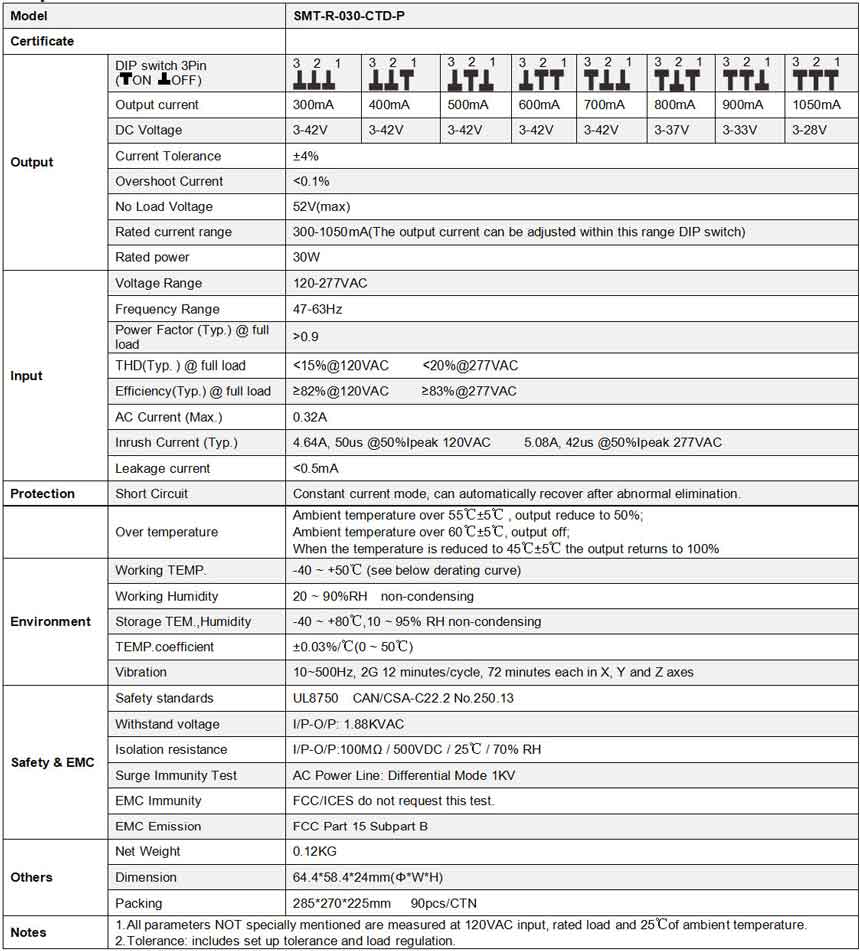

Specification
 |
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
| Remark: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged. | |
Dimming Operation
Using two ways of dimming at the same time, you must be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2. Working with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers or light system.
3. Min. loading is about 10%
4. Please try to use dimmers with power at least 2 times as the output power of the driver.
Using one dimming ---0-10/ 1-10V/ 10V PWM/ Potentiometer dimming
Related Products

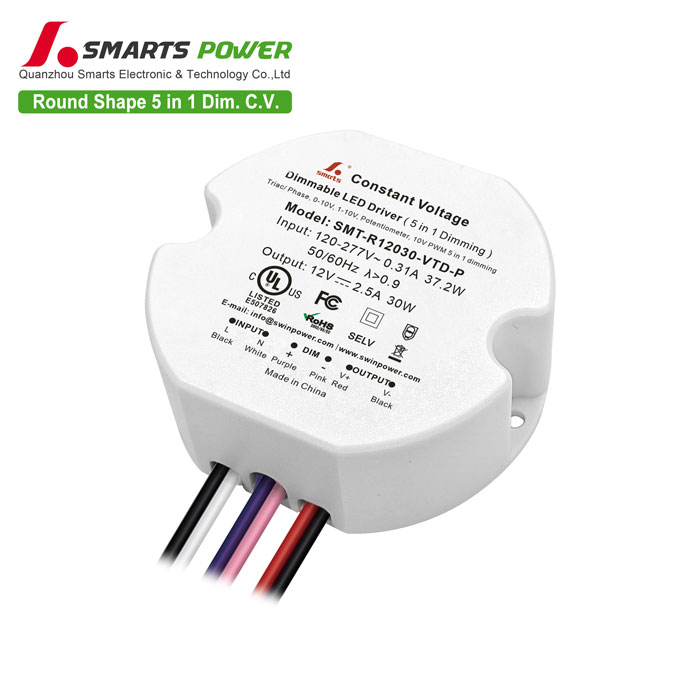

30W constant-voltage LED driver (Triac & 0-10V dimmable) featuring a circular plastic housing design with excellent heat dissipation; compliant with global lighting safety standards; 7-year warranty.
Mode：SMT-R12030-VTD-P intput voltage：100-277vac
Size :64.4*58.4*24MM |
