Non-dimmable LED Driver

high power 5 in 1 dimmable 24V 48V DC led driver 340W Multi output 4x85W

UL cUL 5 in 1 dimmable class 2 led driver 340W Flexible wiring compartment to adjust the AC and DC wiring space


  • item no.:

    SMT-CV24340-VTDHV3
  • brand:

    SMARTS
  • Output Voltage:

    24Vdc 48Vdc
  • Input Voltage:

    100-277Vac
  • Output Power(Watt):

    340W
  • Dimming Mode:

    Triac 0-10V 1-10V 10V PWM Potentiometer dimming
  • Output:

    Dual channel (2 colors)
  • Working Mode:

    Constnat Voltage LED Driver
  • Shape & Size:

    J-BOX Driver
  • Size:

    289*132*42.5mm
  • Weight:

    2.3kg
  • Certification:

    UL cUL ROHS
  • Warranty:

    7 Years
inquiry now
product details

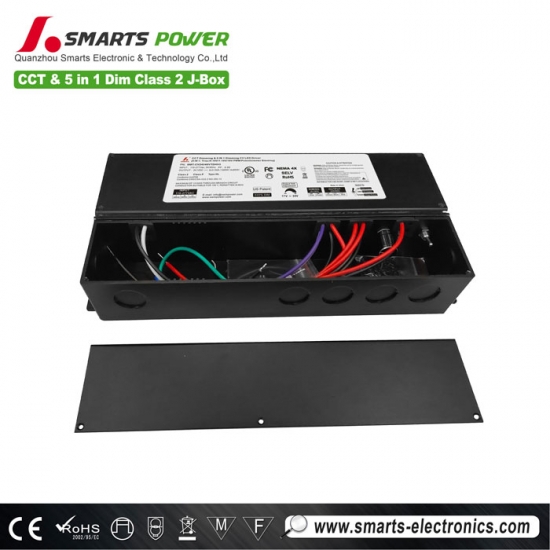

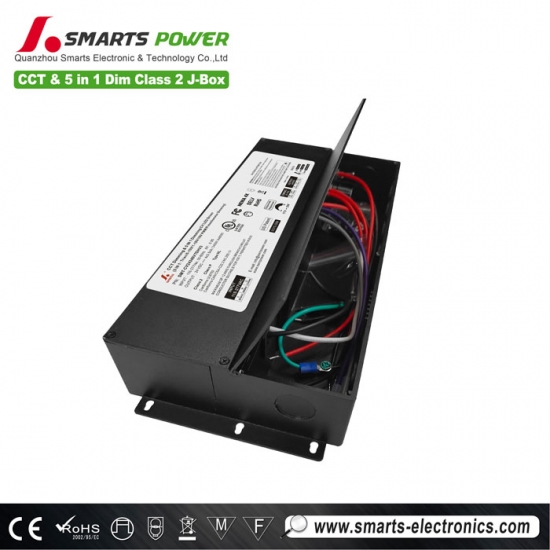

high power 5 in 1 dimmable 24V 48V DC led driver 340W Multi output 4x85W


Triac/0-10V/1-10V/10V PWM/Potentiometer Dimmable J-box led driver 340W  NEMA 4X for indoor and outdoor use; Wet, damp, and dry location



  Specification


Model Number SMT-CV24340-VTDHV3  SMT-CV48340-VTDHV3
OUTPUT
Rated Power 340W (4*96W) 340W (4*96W)
Rated Voltage 24V 48V
Rated Current 4*3.54A 4*1.77A
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
INPUT
Voltage Range 100-277V
Frequency Range 47-63Hz
Power Factor(typ.) [email protected]  [email protected]  Full load
Total Harmonic Distortion THD< 20%@120VC/277VAC;
Efficiency(Typ.) 87%@120VAC   90%@277VAC 88%@120VAC   91%@277VAC
AC Current(Typ.) [email protected] [email protected]
Inrush Current(Typ.) 36A ,50%,960us @120VAC ;  44A,50%,1ms @277VAC
Leakage Current <0.5mA/ 120VAC
PROTECTION
Short Circuit shut down o/p voltage, re-power on to recover after fault condition removed
Over Load ≤120% shut down o/p voltage, re-power on to recover after fault condition removed
Over Temperate 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
ENVIRONMENT
Working Temp. Tcase=-40 ~ +60 ℃
Max. Case Temp. Tcase=+90℃
Working humidity 20 ~ 95% RH non-condensing
Storage temp., Humidity -40 ~ +90, 10 ~ 95% RH
Temp .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards UL8750, CSAC22.2 No. 250.0-08
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission Compliance to FCC part 15  Subpart B
OTHERS
Dimension 289x132x49mm (L*W*H)  N.W: 2.7kg
Packing 8pcs/CTN   G.W:25.1KG   SIZE: 340*210*245mm

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Feature


•Multiple dimming driver: Triac/0-10V/1-10V/10V PWM/Potentiometer
•Switch to PWM or Voltage Reduce output  ref. To Unique Selling Points
•Switch to dual color temperature LED strips
•Dimming effect:
Voltage Reduce mode: 100%-0.01% dim, stepless dimming, flicker-free,
PWM dim mode:100-0.1% dim, flicker-free
•Triac dim mode: Forward phase & reverse phase, MLV, ELV dim
•Exclusive patent design of “Clamshell” junction box,low-profile
•Flexible wiring compartment to adjust the AC and DC wiring space
•UL cUL listed, Class 2, Class P, Type HL, FCC, NEMA 4X, CE, RoHs
•NEMA 4X for indoor and outdoor use; Wet, damp, and dry location,
•Title 24 JA8 compliant
•Universal input, 100-277Vac
•Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
•Constant voltage type, fine tune of output voltage  ref. to chart 1
•Super low loading request, works perfect at 10-100% load.
•Short-circuit, over-temperature, over-load protection.
•7 years warranty

  Unique Selling Points


      1)Voltage Reduce Output
√Dimming range: 100%-0.01% Ultra Deep Amplitude
√The output voltage peak is in the affordable value of the LED during driver on/off and dimming, no harm to the LED for long-term using, and slow down the speed of lumen depreciation.
√Works with single channel dim to warm LED strip/tape (2 wires).
√Works with two channel CCT warm-dim LED strip/tape (3 wires).


2)Compatible PWM & Voltage Reduce output
√synchronously dimming the LEDs with different starting voltages.
√compatible with DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/tape


  Series Information


Include 60-340W, single & multiple outputs



SMT-xxyyy-VTDHV3  in Junction box

SMT-xxyyy-VTD-S    no Junction box



xx=12/24/36/48V

yyy=60/96/100/150/192/200/300/340W

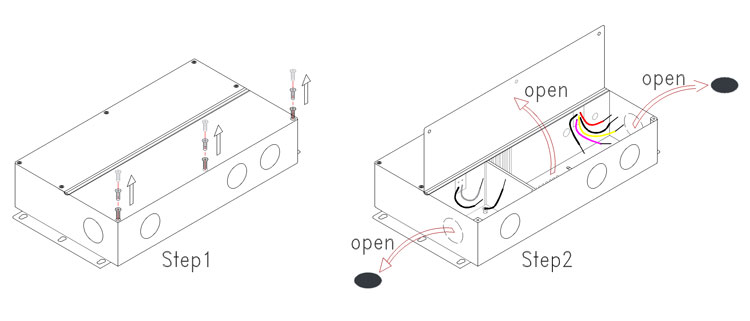

  Mechanical Diagram

  Wiring Diagram


Works with Two channel CCT warm-dim LED strip/tape (3 wires)

1) Triac dimming -Triac/MLV load type   (Notice: Not request neutral wire of dimmer.)

Triac & 0-10V Dimmable J-box 96W


2) 0-10V dimming-only dimming  (Notice: The dimmer cant cut off the power in this connecting way.)

Triac & 0-10V Dimmable J-box 96W
