ip67 constant voltage led driver outdoor mr16 12v 24v 60w
constant voltage led driver IP67 takes about 2 years warranty,and it is have short circuit/overload/over temperature protection. Can protect le power led stree lights operating temperature -40℃~50℃.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL

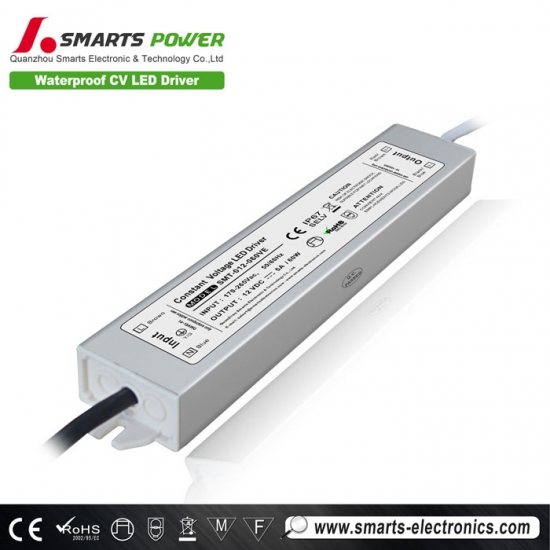

SMT-012-060VE

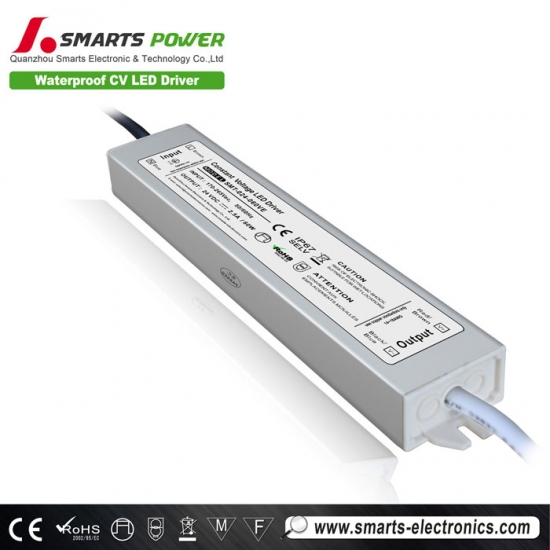

SMT-024-060VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
5.0A
2.5A
CURRENT RANGE
0-5.0A
0-2.5A
RATED POWER
60W
60W
RIPPLE&NOISE(max)
<400mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
170-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
》86%
AC CURRENT(Typ.)
0.45A/220VAC
PROTECTION
Short circuit
Hiccpe mode,recovers automatically after condition is removed
Overload
5.55A
3.0A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |

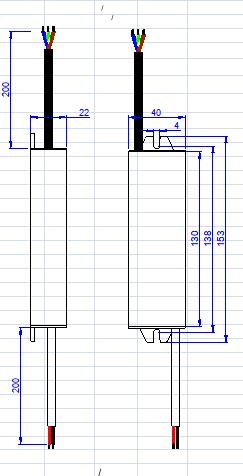

Mechanical Specification
Derating Curve
Application

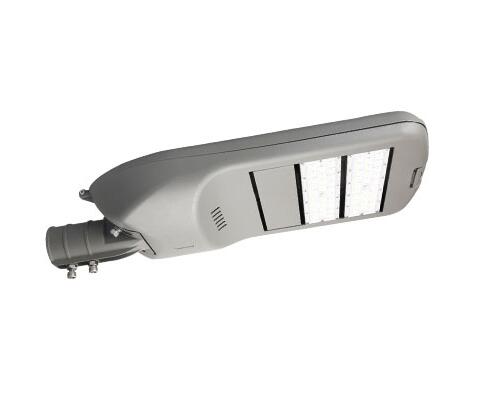

220V 230V input outdoor led driver are our strengh product for South African Market， the output voltage 12vDC & 24VDC，output power from 24w-300w, which can matche le power led stree lights 160-190lm/w...
Related Products
Cheap waterproof led driver 2 years warranty, non-dimmable led driver which are popular for Asia.

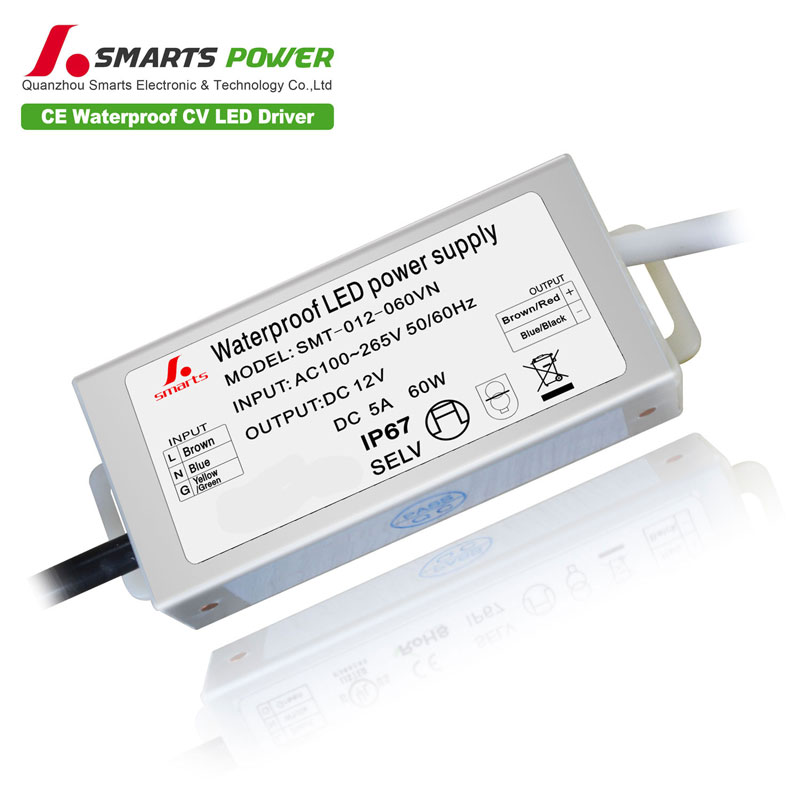

Mode：SMT-012-060VN intput voltage：100~265VAC Size : 122*58*26mm Working mode: constant voltage dimming mode: non- dimmable without any certificated 2 years warranty |
