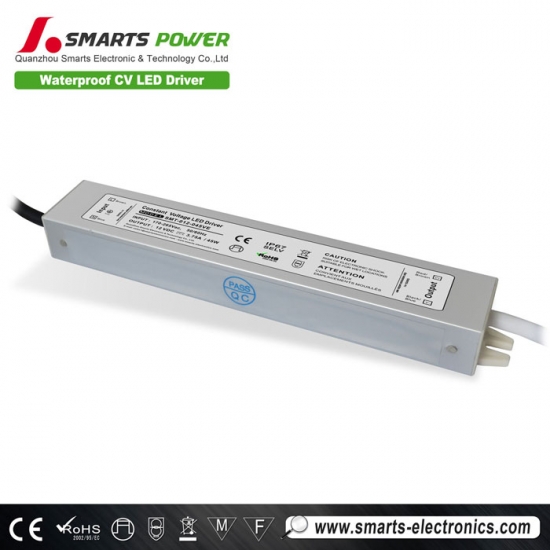

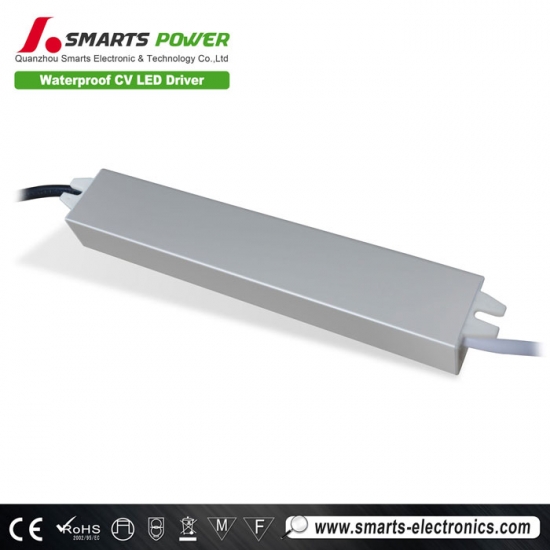

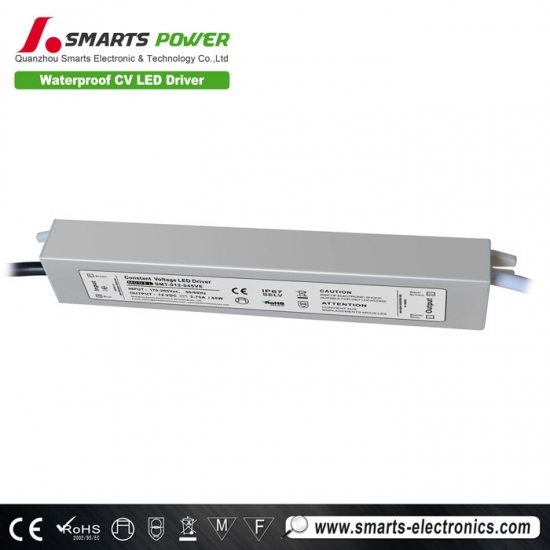

waterproof led driver led strip 12v 45w 230v
SMARTS waterproof electronic led driver is being a highly reliable and low cost way to drive Edge light Downlight saving energy. There have 24w-300w output power for your choose.
Specification
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.
SPECIFICAION
MODEL
SMT-012-045VE
SMT-024-045VE
OUTPUT
DC VOLTAGE
12V
24V
RATED CURRENT
3.75A
1.875A
CURRENT RANGE
0-3.75A
0-1.875A
RATED POWER
45W
45W
RIPPLE&NOISE(max)
<650mV
VOLTAGE TOLERANCE
±0.5V
INPUT
VOLTAGE RANGE
100-265VAC
FREQUENCY RANGE
47-63Hz
POWER FACTOR(Typ.)
no PFC
EFFICIENCY(Typ.)
》86%
AC CURRENT(Typ.)
0.45A/220VAC
PROTECTION
Short circuit
Hiccpe mode,recovers automatically after condition is removed
Overload
4.3A
2.3A
ENVIRONMENT
WORKING TEMP.
-30~+50℃ (Refer to output load derating curve)
INGRESS PROTECTION
IP67 design for indoor or outdoor installations
STORAGE TEMP
-40~+80℃
SAFETY&EMC
SAFETY STANDARDS
EN61347-1;EN61347-2-13;SELV;IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards
NOTE
 |
 |
 |
 |
Mechanical Specification
Derating Curve
Application

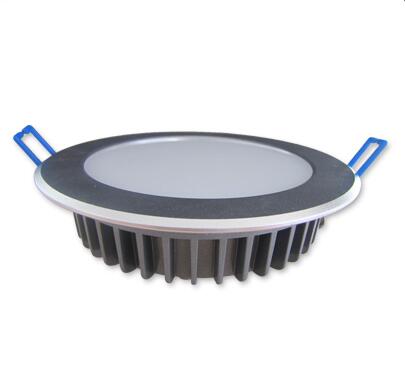

SMT-012-045VE led driver 12v dc meet with CE(LVD) Test Standards waterproof IP67 compatible with Edge light Downlight natural soft lighting, 2 years warranty provided.
