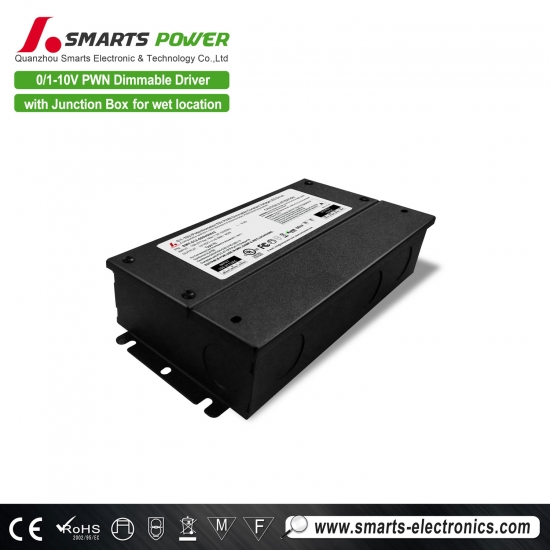

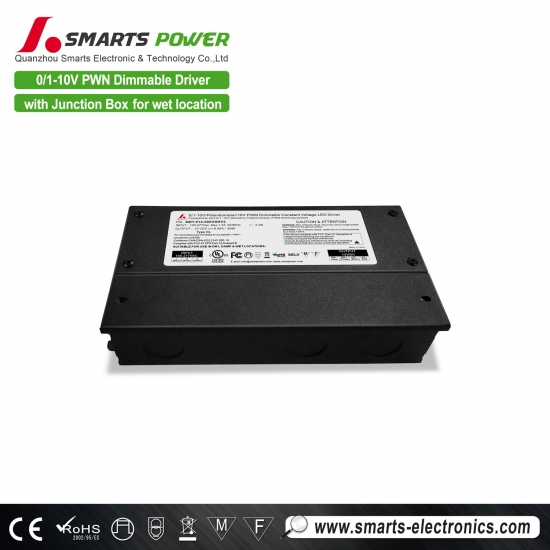

UL listed 12vdc dimmable led transformer 80w manufacturer
The dimmable led driver transformer 80w is 7 years warranty , which are facilities to get all the benefits of going LED including efficiency, better quality light, without the high cost of buying and installing new 5.25” wide strip fixtures from Linmore LED.
Specification
model
SMT-012-080VDH (1.0 version)
SMT-012-080VDHV2 (2.0 version)
SMT-024-080VDH (1.0 version)
SMT-024-080VDHV2 (2.0 version)
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
Rated current
6.66A
3.33A (class 2 type)
Rated power
80W
80W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.95/110V , PF≧0.95/277V
THD（Typ.）@ full load
<20%
Full Load Efficiency(Typ.)
86%@120VAC 88%@277VAC
>85%
AC Current（Typ.）
1.3A @110VAC
Inrush Current （Typ.）
18A, 50%, 1.6ms
1.0A/120VAC 0.63A/170VAC 0.50A/220VAC 0.41A/277VAC
Leakage current
﹤0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.3Kg (1.0 version)
Size
1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H)
packing
330*280*176mm / 10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |
Mechanical Specification

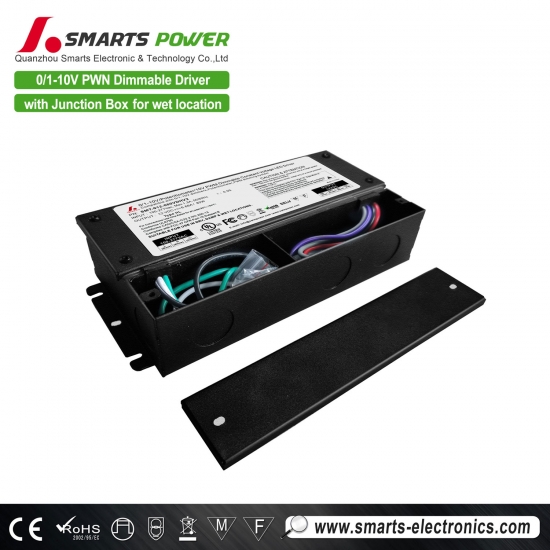

Input wire Black and White to be connected to AC L and N ,Green wire go ground,
Output wire Red to LED Positive side (+) , Black to LED Negative side (-).
Dimming cable DIM (+) Purple to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Compatible LED bulb Type
The dimmable led transformer is compatible well with ecorative bulbs for chandeliers, sconces, fixtures where the bulb is visible and enclosed outdoor fixtures
