UL 200 watt led power supply 200w 12v 0-10v dimmable led driver

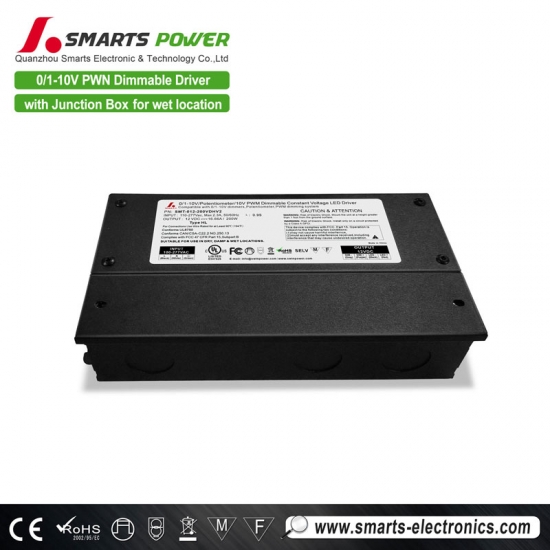

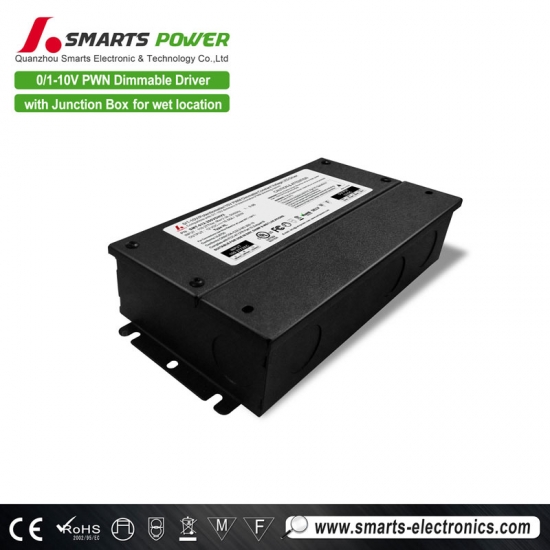

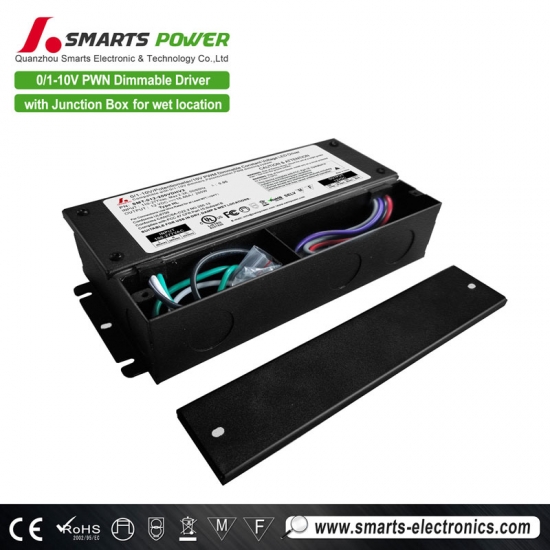

SMT-012-200VDHV2 is 200 watt led power supply dimmable led driver. It is led driver with junction box integrated can be installed at dry, damp, wet place. Its PF>0.95, high efficiency>90%. It has CE UL FCC ROHS approval, 7 years warranty. It is compatible with ledels bulb light.
Product parameters
|
Model |
SMT-012-200VDH (1.0 version) SMT-012-200VDHV2 (2.0 version) SMT-012-200VDHWV2 (3.0 version) |
SMT-024-200VDH (1.0 version) SMT-024-200VDHV2 (2.0 version) SMT-024-200VDHWV2 (3.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
|
Rated Current |
16.67A |
||
|
|
Rated Power |
200W |
||
|
|
Voltage Tolerance |
±0.5V |
||
|
|
Voltage Regulation |
±0.5% |
||
|
|
Load Regulation |
±2% ±1% |
||
|
Input |
Voltage Range |
110-277VAC |
||
|
|
Frequency Range |
47-63Hz |
||
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.97@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
|
THD(Typ.)@ full load |
<20% |
||
|
|
Efficiency(Typ)@ full load |
83% @120Vac / 87%@277Vac 79% |
86% @120Vac / 88%@277Vac
|
|
|
|
AC Current（Max.） |
2.3A@100Vac |
||
|
|
Inrush Current (Typ.) |
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac |
||
|
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
|
Working Humidity |
20～90%RH, non-condensing |
||
|
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
||
|
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
||
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
||
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
1.8Kg (1.0 version) |
||
|
|
Size |
1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H) |
||
|
|
packaging |
Packaging: 10PCS |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||
 |
 |
 |
 |

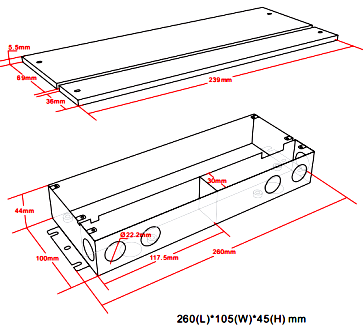

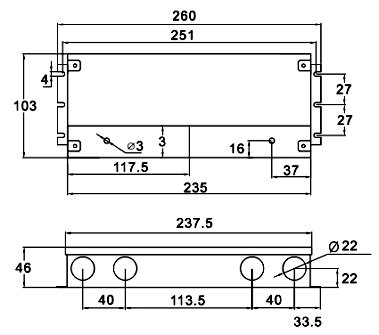

Mechanical Specification

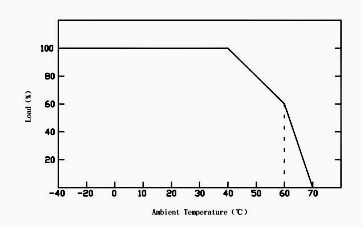

Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

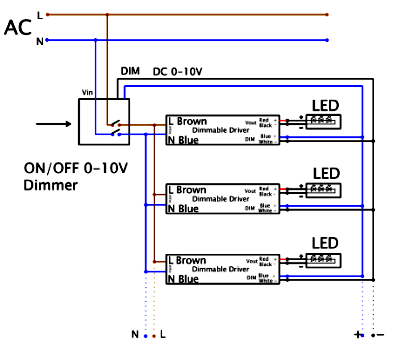

Compatible Dimmer Type

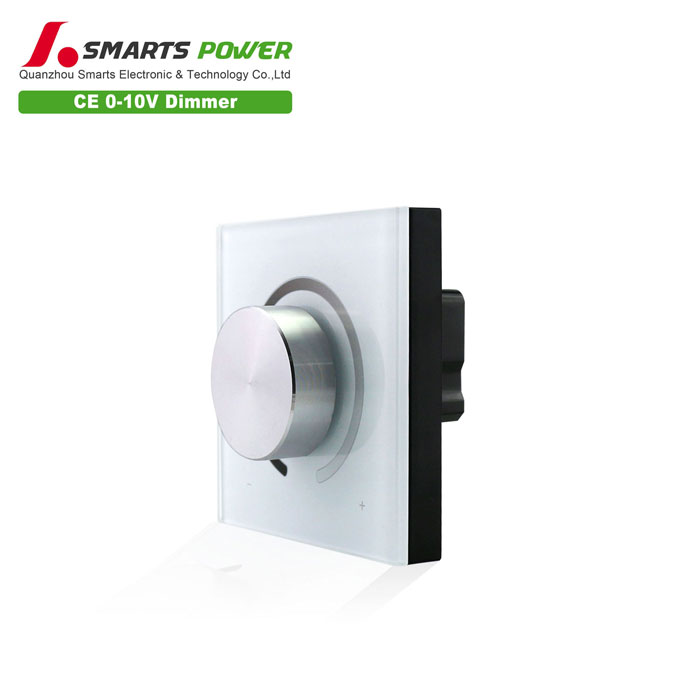

SMT50-R-D1 is rotary 0-10v dimmer. Its input voltage range is 100-265Vac, max. Load Current: 1.5Amp, Max.Load Switching Capacity: 350Watt. It is dimming well with ansell led's downlight.
Related Products

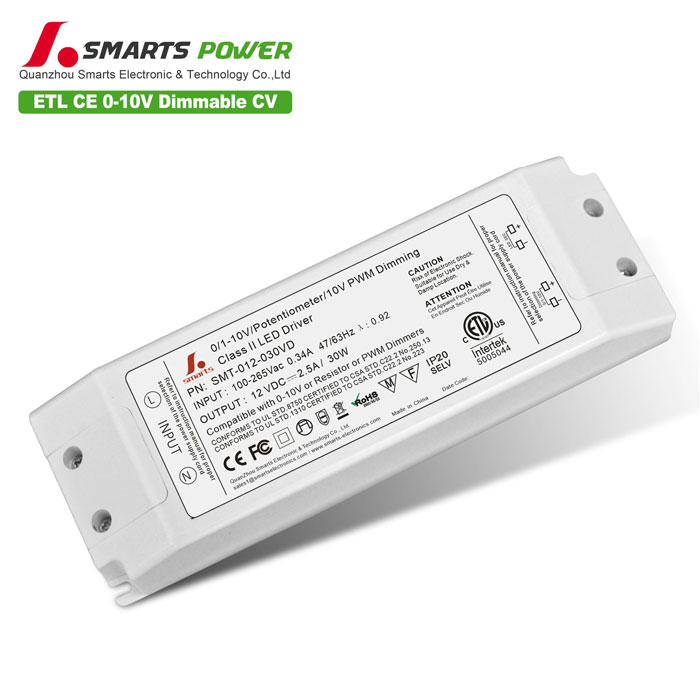

It is 0-10v dimmable 12v 30w led driver. It is plastic outer case with IP20 rate. It can be paired with junction box
