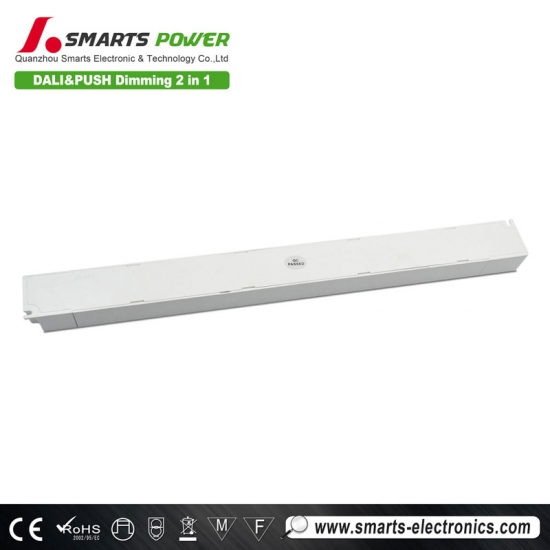

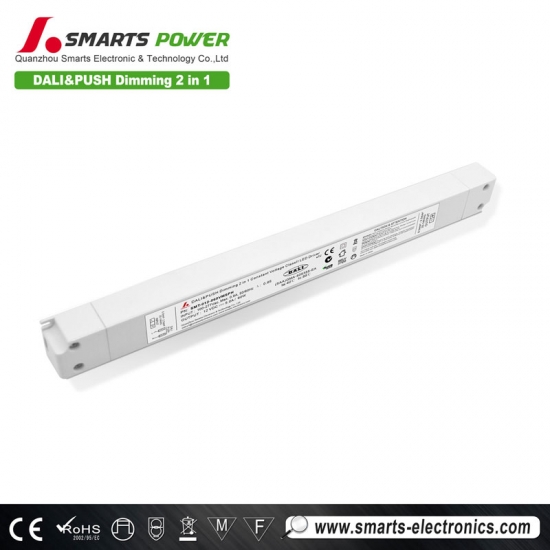

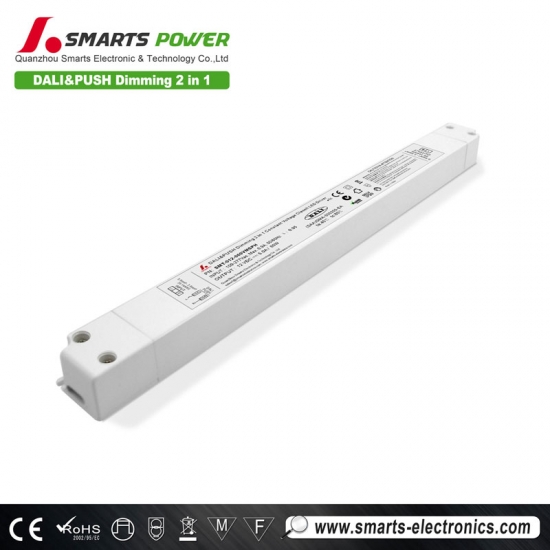

ultra thin CE rohs 12v 60w dali dimmable led strip driver 200-240VAC
The CE rohs led driver is built in DALI interface dimming function conform to DALI Protocol IEC62386. it meets safe standard CE and Rohs. SmartsSMT-012-060VMSPH shows strong compatible, Instyle Led dali tape can be matched with.
Specification
|
model |
SMT-012-060VMSPH |
SMT-024-060VMSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
VoltageTolerance |
±0.5V |
±0.5V |
|
|
Rated current |
5.0Amp |
2.5Amp |
|
|
Rated power |
60W |
60W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±2% ±1% |
||
|
Input |
Voltage Range |
100-277VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor(Typ.)@ full load |
0.98@120VAC |
0.98@120VAC |
|
|
Efficiency(Typ.)@ full load（Typ.） |
>86% |
>88% |
|
|
AC Current(Max.) |
0.73A@100VAC |
||
|
THD(Typ. ) @ full load |
10%@120VAC |
10%@120VAC |
|
|
Inrush Current（Typ.） |
3A (twidth=220us) @120VAC ; 34A (twidth=121us) @230VAC ; 12.4A (twidth=680us) @277VAC ; |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
|
|
Over Load |
≤120% Hiccup mode ,recovers automatically after fault condition is removed or shut down o/p voltage, re-power on to recover afterfault condition removed |
||
|
Protection Class |
II |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling
|
||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) and UL8750 (US) |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US) |
||
|
Isolation resistance |
I/P-O/P：100M Ohms/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) andFCC Part 15 (US) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
|
Others |
Net Weight |
0.25Kg |
|
|
Dimension |
300*30*18.5mm(L*W*H) |
||
|
packing |
330*330*130mm/50PCS/CTN G.W.:13.6KG/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

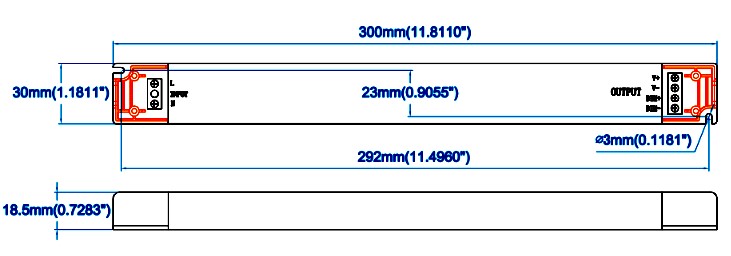

■ Mechanical Specification
Unite: mm Tolerance:P 0.5-2mm
Ø Input terminal with Live Wire(L) , Neutral Wire (N)
Ø Output LED SEC (LED+), output negative (LED). Connected to LED Lamps
■ Dimming wiring

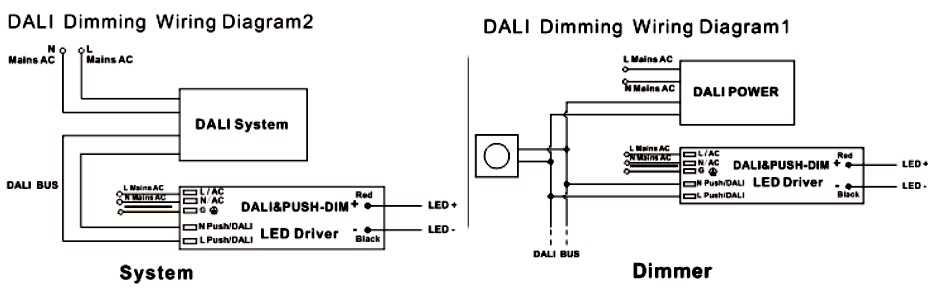

Ø Dimming wires are installed for Dimming terminals (No polar) and are connected to the DALI BUS when use DALI function .

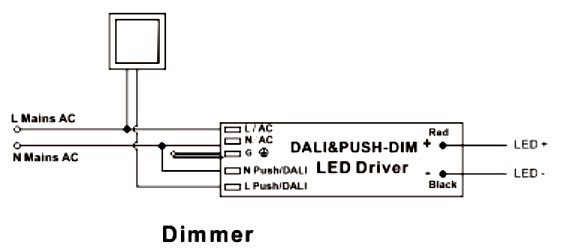

Ø wire (N) is connected to AC (N) while and wire (L) is connected to Push dim switch dimmer( L) when use Push function.
Ø Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

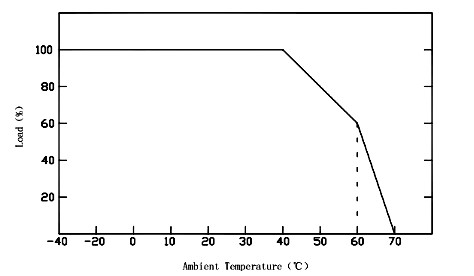

■ Derating Curve
Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.

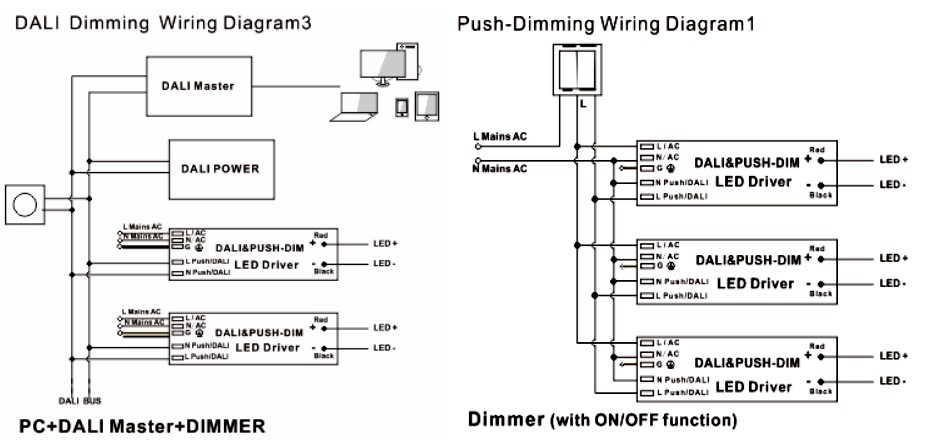

■ Dimming Operation
Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
■ Instruction
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales1@smartselectronics.com Or take a phonecall: 0086-595-22863721ext.808
Official website: www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type

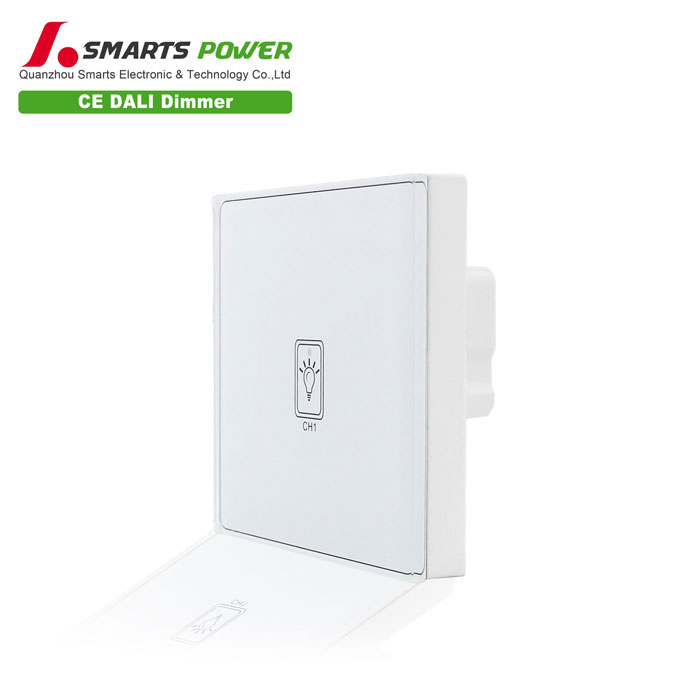

The driver is designed for the regions which require 200-240 input voltage. The dali dimmable led strip driver are preferable to interior use. Smarts SMT-M1 dimmer has good compatibility with it based on test result.
Related Products

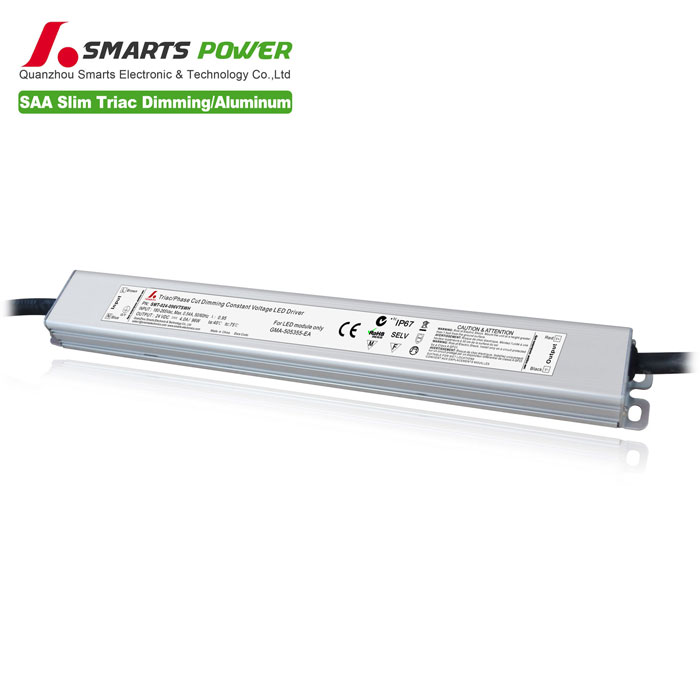

The ultra thin led driver has different dimming type. This mdels is triac dimming with24v 96w. Both 12v and 24v are available. A range from 30w to 96w/100w.
Output current:4A
Certification: CE Rohs
|
