Non-dimmable LED Driver

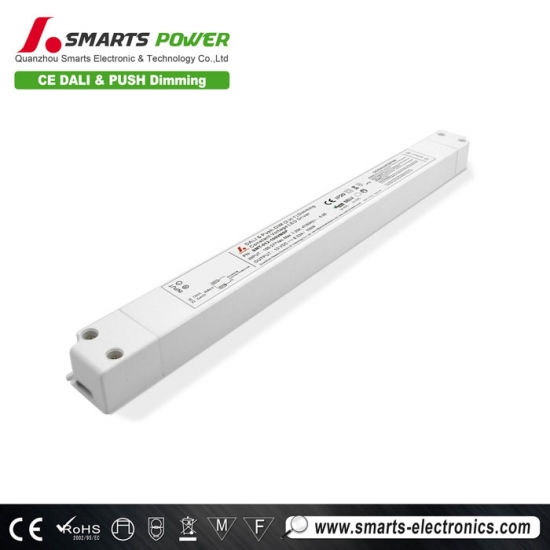

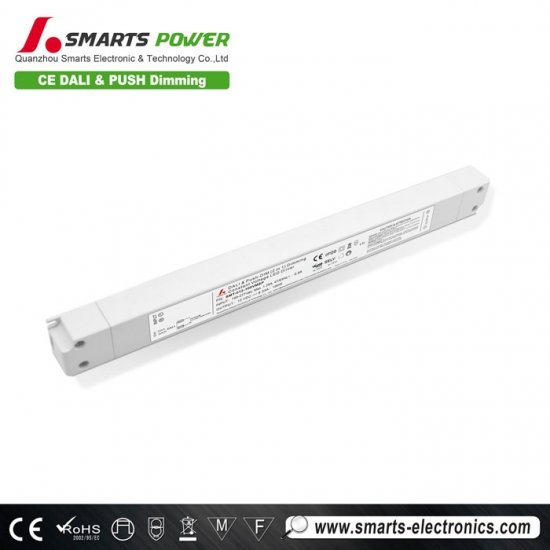

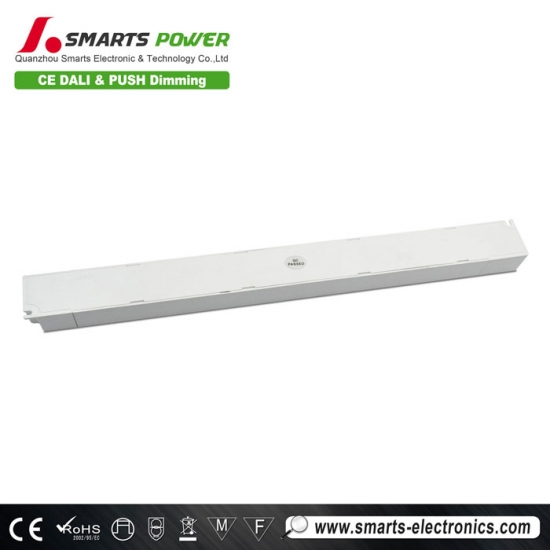

CE ROHS 100w led driver 12v DALI slim dimmable power supply

SMT-012-100VMSPH is 100w led driver super slim. It is 12v DALI dimmable led driver, it can only be used in dry location for indoor projects. It is working well with gkoled's GKOFD08.


  • item no.:

    SMT-012-100VMSPH
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    8.33A
  • Working Mode:

    Constant Volatge DALI Dimmable
  • Certification:

    CE ROHS
  • Warranty:

    7 years
inquiry now
product details

CE ROHS 100w led driver 12v DALI slim dimmable power supply


SMT-012-100VMSPH is 100w led driver DALI dimmable slim 12v. It has CE ROHS approved for European market mainly. It can use for some project with narrow space for led driver, like mirror lighting, cabinet lighting projects etc... The input voltage voltage range 110-277Vac. It is compatible with ansell led's ABOLED/2000/WW.


  Product parameters


model

SMT-012-100VMSPH

SMT-024-096VMSPH

Output

DC Voltage

12VDC

24VDC



Voltage Tolerance

±0.5V

±0.5V



Rated current

8.33Amp

4.0Amp



Rated power

100W

96W



Voltage Regulation

±0.5%



Load Regulation

±2%  ±1%

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power Factor(Typ.)@ full load

0.98@120VAC

0.98@120VAC



Efficiency(Typ.)@ full loadTyp.

>88%

>88%



AC Current(Max.)

1.2A@100VAC



THD(Typ. ) @ full load

10%@120VAC

10%@120VAC



Inrush CurrentTyp.

4.1A (twidth=220us) @120VAC ;  35.2A (twidth=164us) @230VAC ;

12.8A (twidth=960us) @277VAC ;



Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Load

≤120% Hiccup mode ,recovers automatically after fault condition is removed or

shut down o/p voltage, re-power on to recover after fault condition removed



Protection Class

II



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling

Environment

Working TEMP.

-40~+60 (see below derating curve)



Working Humidity

2095%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)



Withstand voltage

I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)



Isolation resistance

I/P-O/P100M Ohms/500VDC/25℃/70%RH



EMC EMISSION

Compliance to EN55015, EN61000-3-2 (60%load) (EU) and FCC Part 15 (US)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11,  EN61547, light industry

Others

Net Weight

0.29Kg



Dimension

330*30*22mm(L*W*H)



packing

350*330*145mm/50PCS/CTN    G.W.:15.5KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  CompatibleDimmer Type

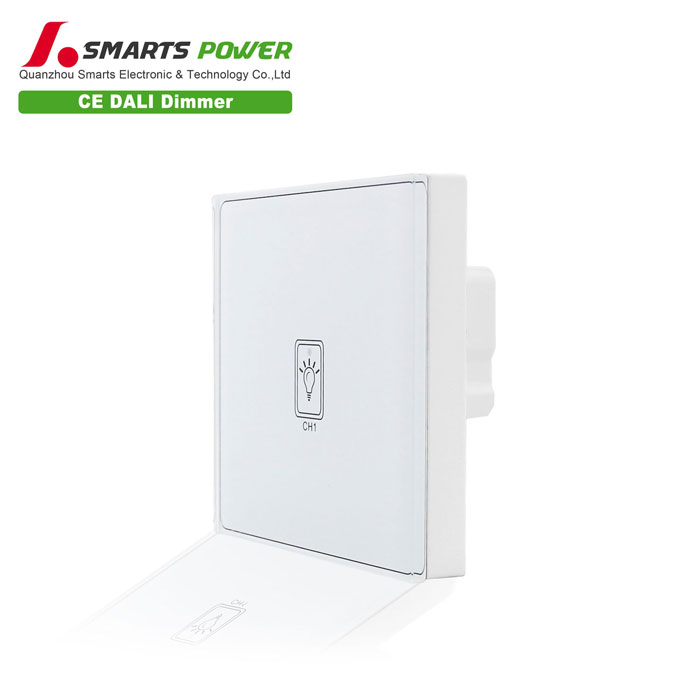

SMT-M1 is CE dimmer switch DALI. It is only has one button to turn on or off your strip light. It is easy to operate. It has overload, overheat protection. It has 2 years warranty. It is dimming well with gkoled's GKOCP03.


CE dimmer switch DALI          CE dimmer switch DALI


  Related Products

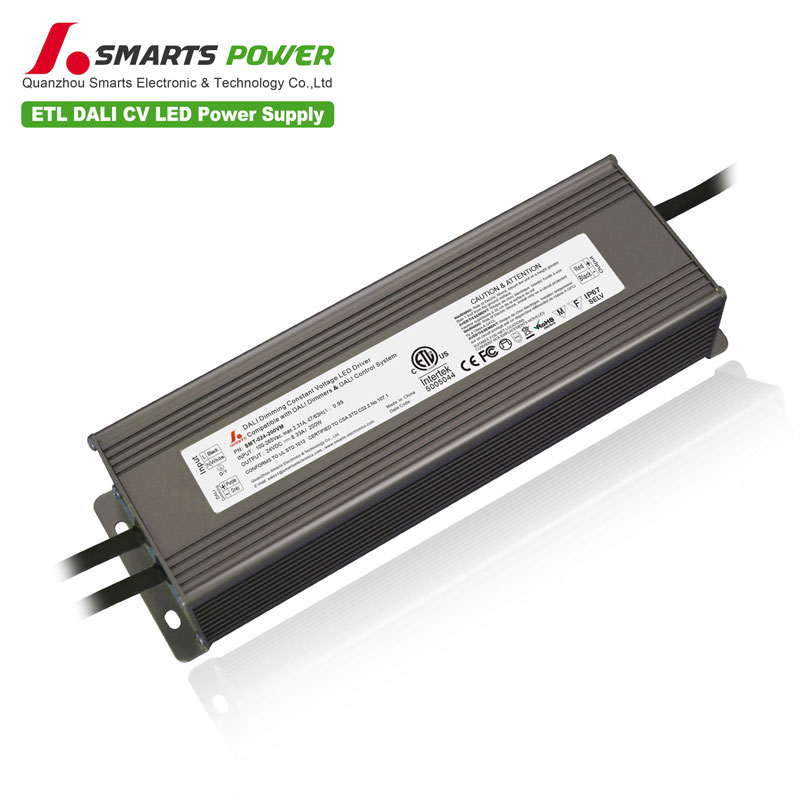

24v 200w DALI dimmable led driver
