ip20 downlight dali dimmable led lights led driver 12v 30w

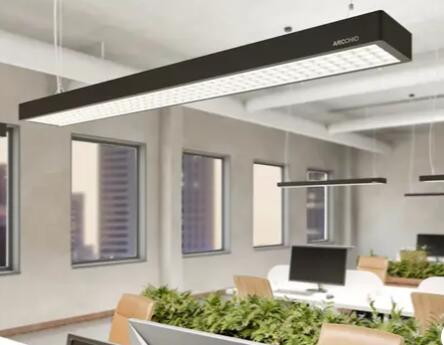

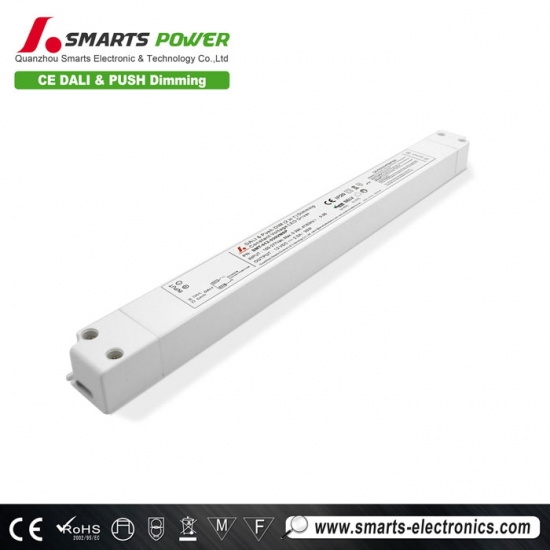

SMT-012-030VMSP is dali dimmable led driver 12v 30w, it's plastic case could suit for indoor, and compliance to worldwide safety regulations for lighting.Fast heat dissipation, longer service life that you workable with Lights office hanging light black.
Specification
model
SMT-012-030VMSP
SMT-024-030VMSP
Output
DC Voltage
12VDC
24VDC
Voltage Tolerance
±0.5V
±0.5V
Rated current
2.5Amp
1.25Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47~63HZ
Power Factor(Typ.)@ full load
0.98@120VAC
0.98@120VAC
Efficiency(Typ.)@ full load(Typ.)
>81%
>81%
AC Current(Max.)
0.38A@100VAC
THD(Typ. ) @ full load
10%@120VAC
10%@120VAC
Inrush Current(Typ.)
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ;
12.4A (twidth=430us) @277VAC ;
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Load
≤120% Hiccup mode ,recovers automatically after fault condition is removed
Protection Class
II
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~95%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) and UL8750 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US)
Isolation resistance
I/P-O/P:100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Net Weight
0.20Kg
Dimension
260*30*18.5mm(L*W*H)
packing
330*275*130mm/50PCS/CTN G.W.:11KG/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
Derating Curve
Application
Our slim type led driver 12v 30w for led strips feature flexible input voltage (100-277VAC) and can be ordered in 12VDC or 24VDC outputs. Wattage displayed is the Maximum Wattage. With load function, it can effectively protect Lights office hanging light 27w and make the life of the lamp longer.
Related Products

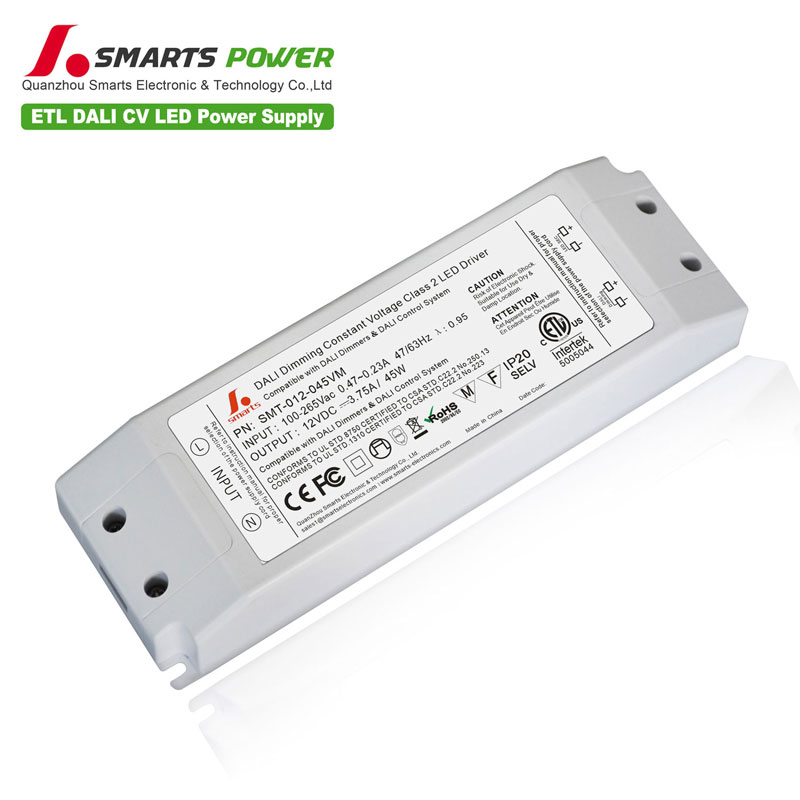

Dali dimmable 12 volt led power supply 45w with plastic case IP20. use for indoor project...
