CE listed 12v DALI dimmable led driver 36w slim power supply

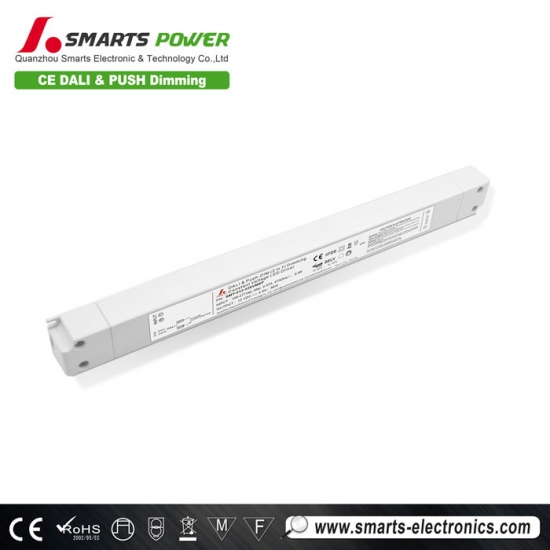

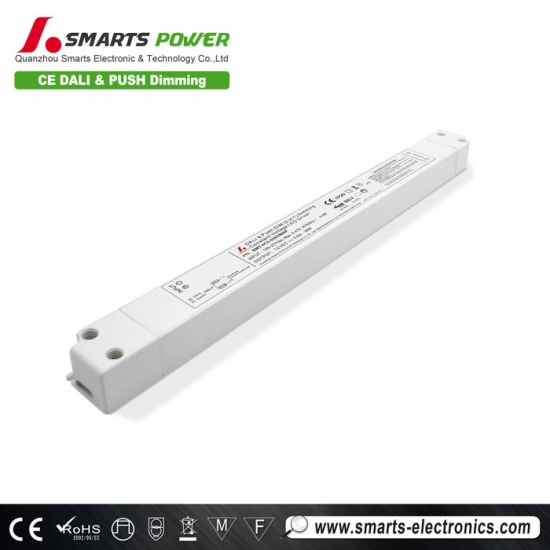

SMT-012-036VMSPH is 12v dimmable led driver. It is 36w constant voltage slim DALI dimmable led driver. PFC function > 0.9, the efficiency>88%. It has short circuit/over load/ over temperature. It is cooling by free air convection. It can work with jaylumi's TRK9000W.
Product parameters
|
model |
SMT-012-036VMSPH |
SMT-024-036VMSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Rated current |
3.0Amp |
1.5Amp |
|
|
Rated power |
36W |
36W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2% ±1% |
|
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC |
0.98@120VAC |
|
|
Efficiency(Typ.)@ full load（Typ.） |
>82% |
>82% |
|
|
AC Current(Max.) |
0.45A@100VAC |
|
|
|
THD(Typ. ) @ full load |
10%@120VAC |
10%@120VAC |
|
|
Inrush Current（Typ.） |
4.64A (twidth=460us) @120VAC ; 33.2A (twidth=116us) @230VAC ; 12.4A (twidth=430us) @277VAC ; |
|
|
|
Leakage current |
<0.5mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
|
|
|
Over Load |
≤120% Hiccup mode ,recovers automatically after fault condition is removed |
|
|
|
Protection Class |
II |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling
|
|
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20～95%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) and UL8750 (US) |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US) |
|
|
|
Isolation resistance |
I/P-O/P：100M Ohms/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US) |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
|
|
Others |
Net Weight |
0.20Kg |
|
|
|
Dimension |
260*30*18.5mm(L*W*H) |
|
|
|
packing |
330*275*130mm/50PCS/CTN G.W.:11KG/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |
CompatibleDimmer Type

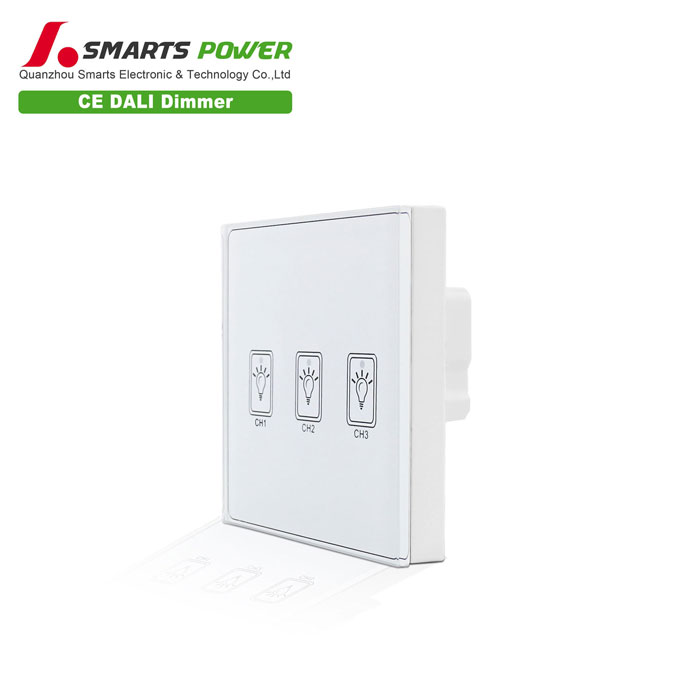

SMT-M3 is CE DALI dimmer. It has DIP Switch Operation. The input voltage range is 100-240Vac, it is DALI touch panel. It is compatible our DALI dimmable led driver. The product dimension is L86*W86*H38mm. It is dimming well with TCP LED Lights Bulbs's F17T6.
Related Products

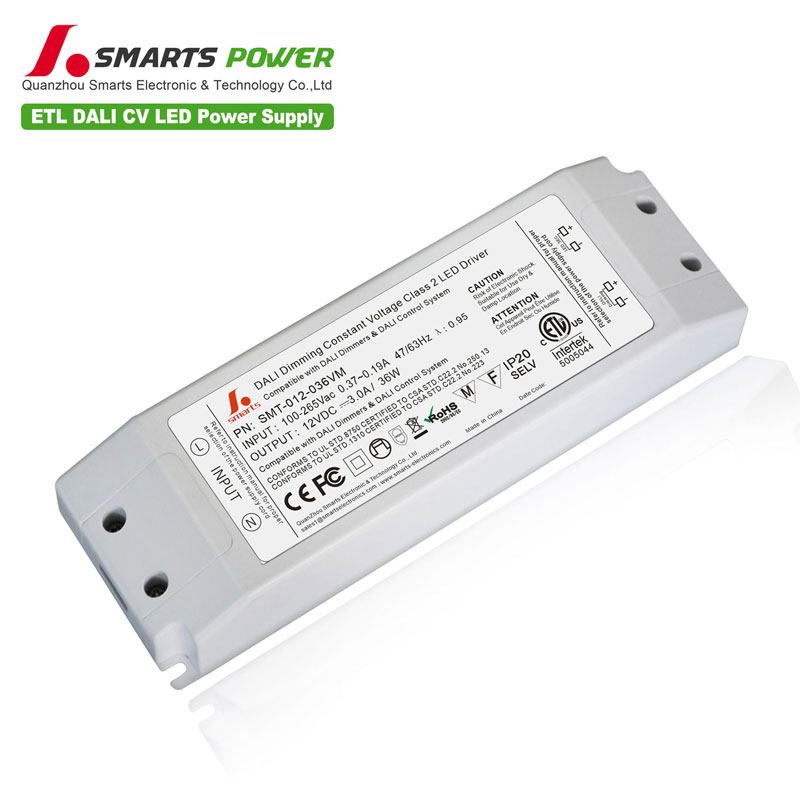

It is 12volt output 36 watt DALI dimmable led driver. It has CE ETL ROHS approved. The dimming range is 0-100%.
Mode：SMT-012-036VM |
