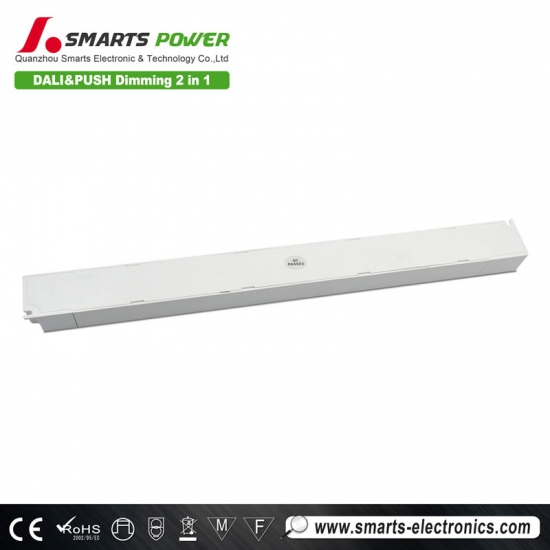

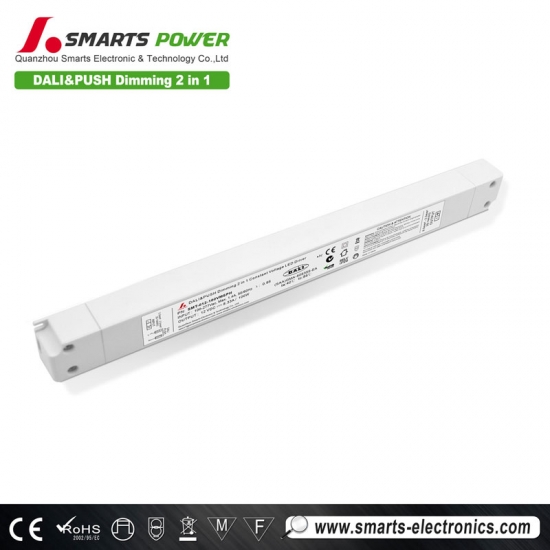

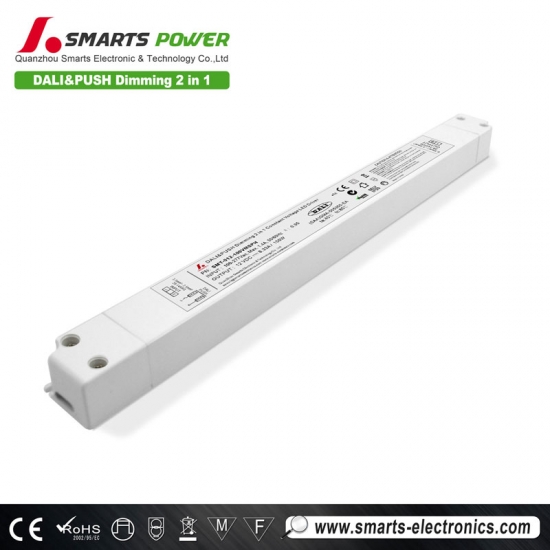

Dali dimming CE/ROHS approval 220v 12v 100w slim led driver for led mirrors
The compact size of 100w 330*30*22mm enables the item widely used in limited space. Compared with Sunricher dali CV drivers, Smartsdali slim led driver has more advantages in slim shape.
Specification：
|
model |
SMT-012-100VMSPH |
SMT-024-096VMSPH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
VoltageTolerance |
±0.5V |
±0.5V |
|
|
Rated current |
8.33Amp |
4.0Amp |
|
|
Rated power |
100W |
96W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±2% ±1% |
||
|
Input |
Voltage Range |
100-277VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor(Typ.)@ full load |
0.98@120VAC |
0.98@120VAC |
|
|
Efficiency(Typ.)@ full load（Typ.） |
>88% |
>88% |
|
|
AC Current(Max.) |
1.2A@100VAC |
||
|
THD(Typ. ) @ full load |
10%@120VAC |
10%@120VAC |
|
|
Inrush Current（Typ.） |
4.1A (twidth=220us) @120VAC ; 35.2A (twidth=164us) @230VAC ; 12.8A (twidth=960us) @277VAC ; |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
|
|
Over Load |
≤120% Hiccup mode ,recovers automatically after fault condition is removed or shut down o/p voltage, re-power on to recover afterfault condition removed |
||
|
Protection Class |
II |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling
|
||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
|
|
Working Humidity |
20～95%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) and UL8750 (US) |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC (EU) and I/P-O/P:1.88KVAC (US) |
||
|
Isolation resistance |
I/P-O/P：100M Ohms/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) andFCC Part 15 (US) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
||
|
Others |
Net Weight |
0.29Kg |
|
|
Dimension |
330*30*22mm(L*W*H) |
||
|
packing |
350*330*145mm/50PCS/CTN G.W.:15.5KG/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |

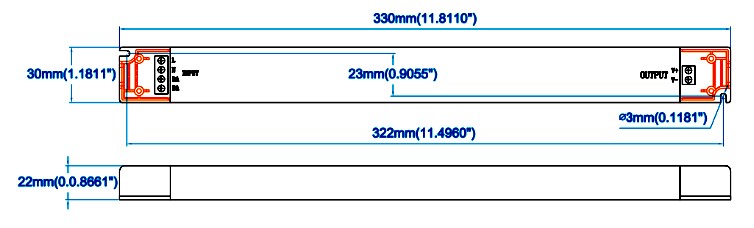

■ Mechanical Specification
Unite: mm Tolerance:P 0.5-2mm
Ø Input terminal with Live Wire(L) , Neutral Wire (N)
Ø Output LED SEC (LED+), output negative (LED). Connected to LED Lamps

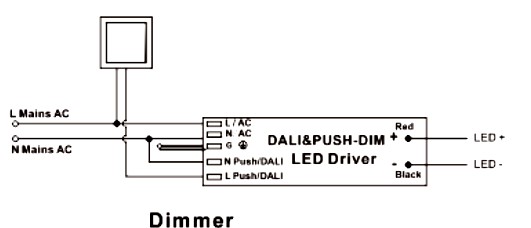

■ Dimming wiring
Ø Dimming wires are installed for Dimming terminals (No polar) and are connected to the DALI BUS when use DALI function .
Ø wire (N) is connected to AC (N) while and wire (L) is connected to Push dim switch dimmer( L) when use Push function.
Ø Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
■ Dimming curve

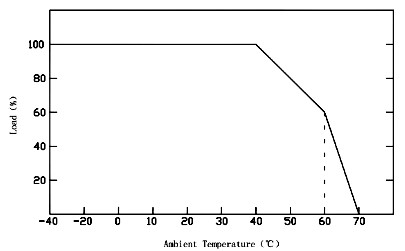

Ø To extend their life, please refer to the Derating Curve and derate according to the temperature.

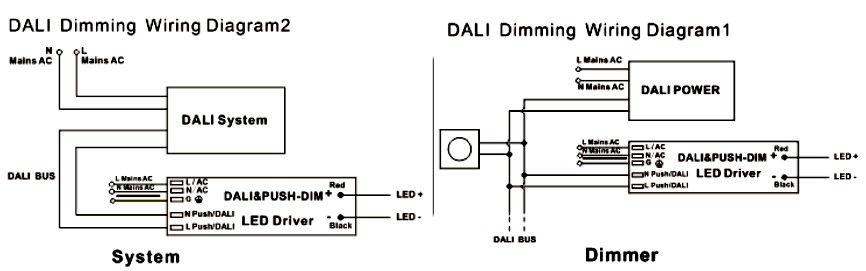

■ Dimming Operation
Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.
■ Instruction:
Ø This driver should be installed by qualified and professional person;
Ø Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Ø Ensure that wiring is correct before test in order to avoid light and power supply damage;
Ø If the dimmable LED drivers do not work normally, pl. don’t maintain privately, but contact us:sales9@smartselectronics.com Or take a phonecall: 0086-180166251
Official website:www.smarts-electronics.com & www.swinpower.com
Compatible Dimmer Type

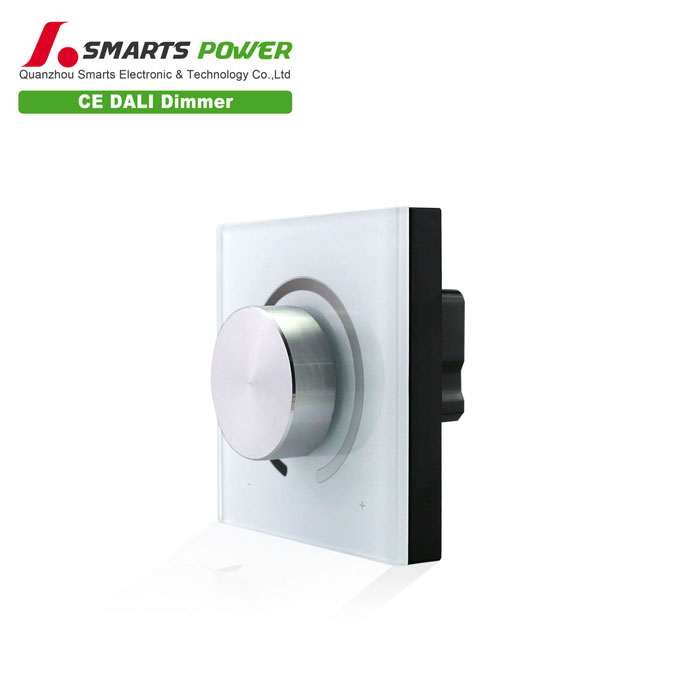

This dali led driver also have overvoltage and overheat protection for the driver, as well as short circuit protection. Smarts Dali rotary dimmer can well matched with the driver.
Related Products

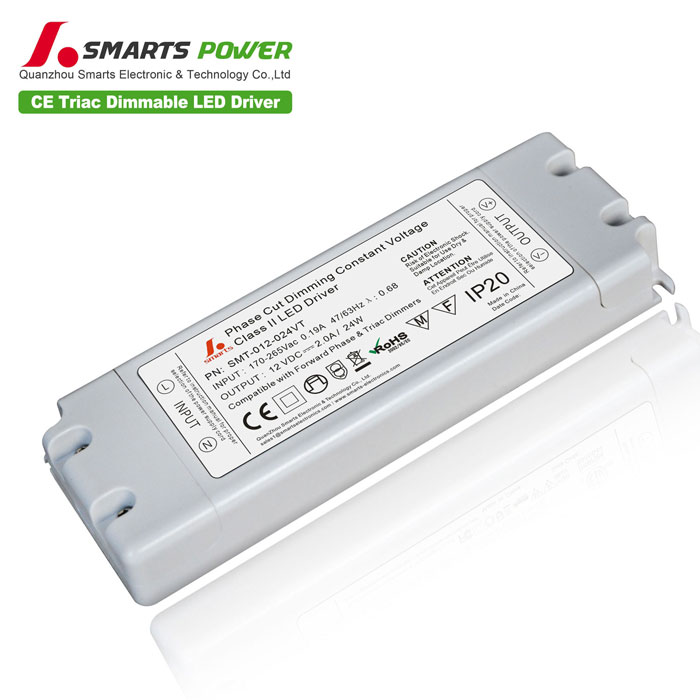

The dimmable 12v led power supply is a kind of triac dimming. A wide output range for choosing, from 24w to 200w. Offer 5 years warranty.
