Non-dimmable LED Driver

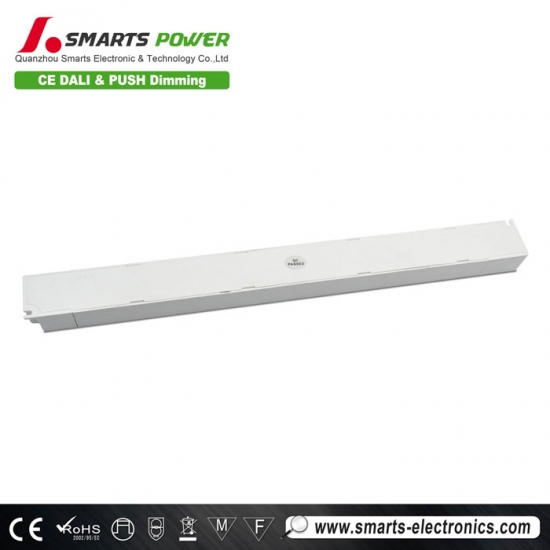

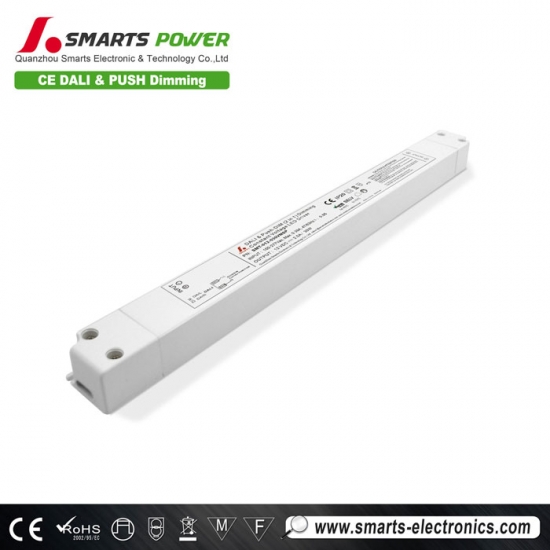

CE ROHS 30w led driver 12v dc DALI dimmable slim power supply

SMT-012-030VMSPH is 12v DALI slim dimmable 30w led driver. The height<20mm, width<30mm. It has 7 years warranty. It can be used with ansell led's ABOLED/300/WW.

  • item no.:

    SMT-012-030VMSPH
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    2.5A
  • Working Mode:

    Constant Volatge DALI Dimmable
  • Certification:

    CE ROHS
  • Warranty:

    7 years
inquiry now
product details

CE ROHS 30w led driver 12v dc DALI dimmable slim power supply


SMT-012-030VMSPH is 30w led driver DALI super slim dimmable. Its dimming range is 0-100%, compatible with most of dimmer in the market, like Lurton dimmers. It has CE ROHS approved for European market. It is able to work with gkoled's GKOFD07.


  Product parameters


model

SMT-012-030VMSPH

SMT-024-030VMSPH

Output

DC Voltage

12VDC

24VDC



Voltage Tolerance

±0.5V

±0.5V



Rated current

2.5Amp

1.25Amp



Rated power

30W

30W



Voltage Regulation

±0.5%



Load Regulation

±2%

±1%

Input

Voltage Range

100-277VAC



Frequency Range

4763HZ



Power Factor(Typ.)@ full load

0.98@120VAC

0.98@120VAC



Efficiency(Typ.)@ full loadTyp.

>81%

>81%



AC Current(Max.)

0.38A@100VAC



THD(Typ. ) @ full load

10%@120VAC

10%@120VAC



Inrush CurrentTyp.

4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;

12.4A (twidth=430us) @277VAC ;



Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Load

≤120% Hiccup mode ,recovers automatically after fault condition is removed



Protection Class

II



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling



Environment

Working TEMP.

-40~+60 (see below derating curve)



Working Humidity

2095%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)



Withstand voltage

I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)



Isolation resistance

I/P-O/P100M Ohms/500VDC/25℃/70%RH



EMC EMISSION

Compliance to EN55015, EN61000-3-2 (60%load) (EU) and FCC Part 15 (US)



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11,  EN61547, light industry

Others

Net Weight

0.20Kg



Dimension

260*30*18.5mm(L*W*H)



packing

330*275*130mm/50PCS/CTN    G.W.:11KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  CompatibleDimmer Type

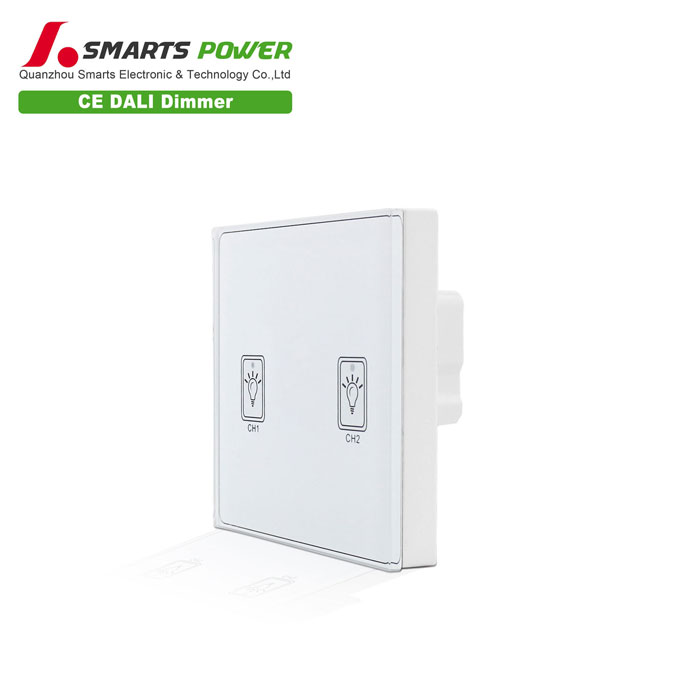

SMT-M2 is DALI dimmer. Short press to turn on/off the controller, long press to adjust brightness. The input voltage range is 100-240Vac. Its dimension is L86*W86*H38mm. It can working under -20-60temperature. It is dimming well with signify's SV5R1S3ASLD.


DALI dimmer          DALI dimmer


  Related Products

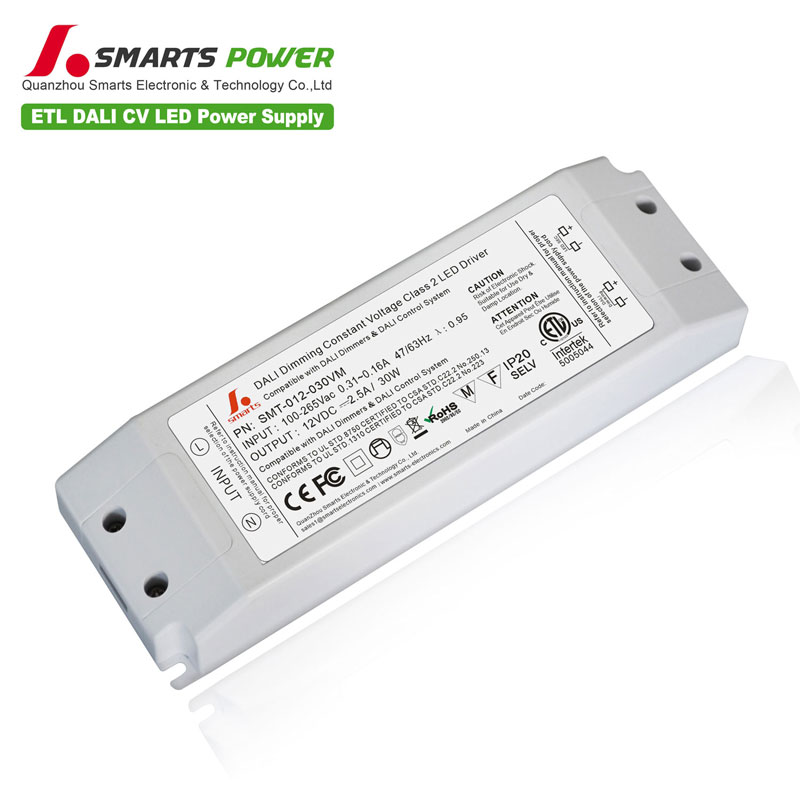

30w DALI dimmable led driver
