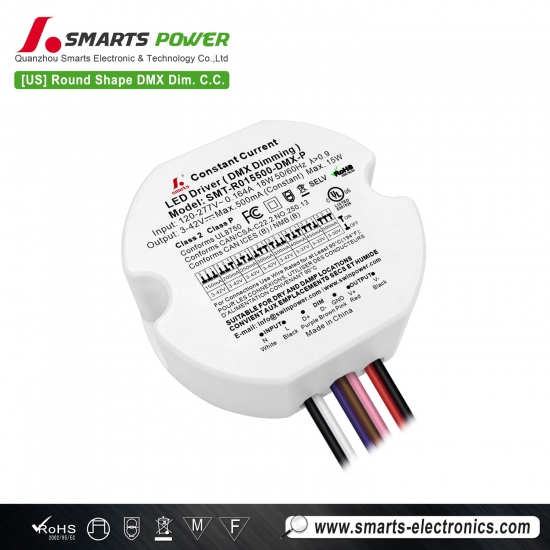

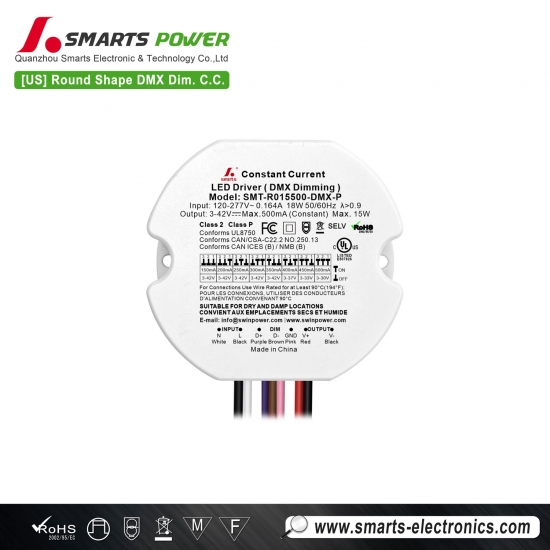

Zero Flicker 15W DMX512 Dimmable Constant Current Round LED Driver


Zero Flicker 15W DMX512 Dimmable Constant Current Round LED Driver

The 15W round plastic LED driver delivers DMX512 dimming from 1% to 100% at 1% depth — fine, flicker-free control for color washes and dynamic displays. The DIP switch sets 150–500mA over 3–42V, RDM handles remote addressing, and the 120–277VAC input with PF correction and up to 80% efficiency keeps it efficient. Short-circuit and over-temperature protection plus fanless cooling. Dry/damp rated; 7-year warranty.

  • item no.:

    SMT-R015500-DMX-P

  • brand:

    SMARTS

  • Input Voltage:

    100-277VAC

  • Output Current:

    100-450mA

  • Working Mode:

    Constant Current

  • Certification:

    UL,FCC, CE, ROHS

  • Warranty:

    7 years
inquiry now
product details

Zero Flicker 15W DMX512 Dimmable Constant Current Round LED Driver

the 15W constant-current driver delivers, on a DMX512 network with RDM addressing. Set 150–500mA by DIP switch, then dim flicker-free from 1% to 100%. The compact round plastic body installs fast in dry and damp locations, and convection cooling stays silent during shows. 7-year warranty.

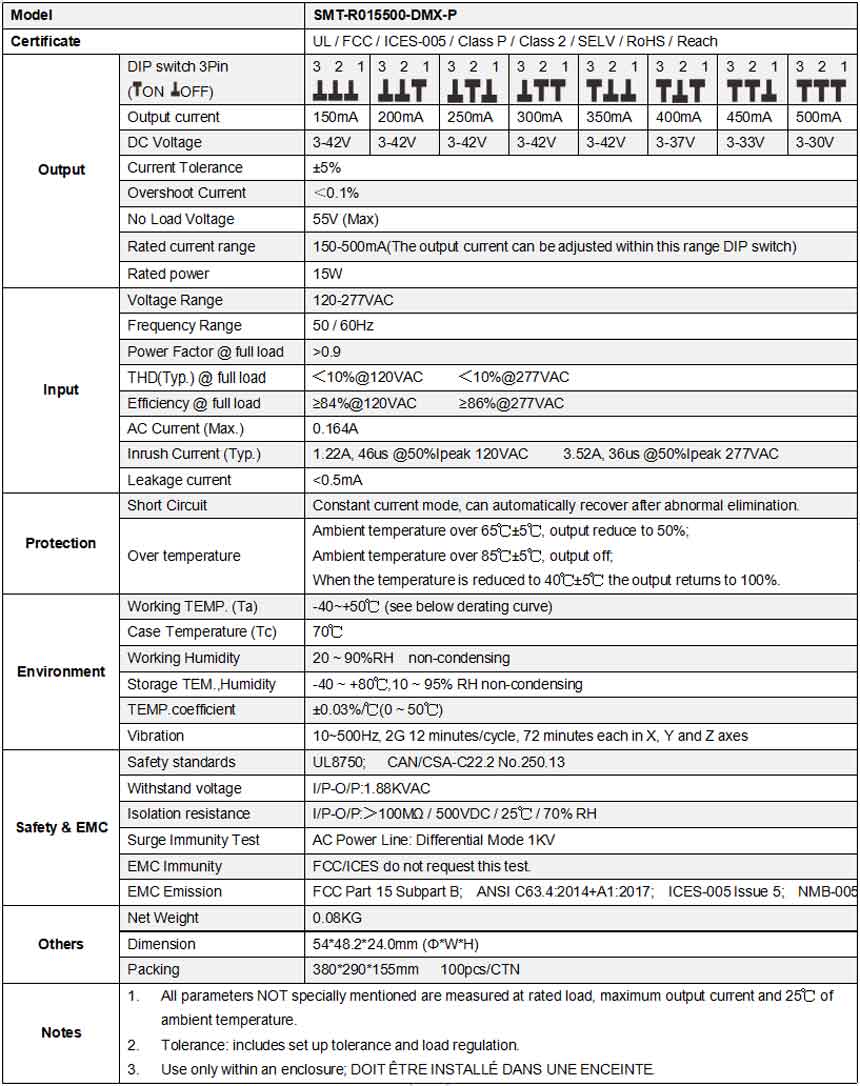

  Specification


Click Send Email for Details
 Click Teams 24 hours Online Reply
 Scan to start our communication
Back to top

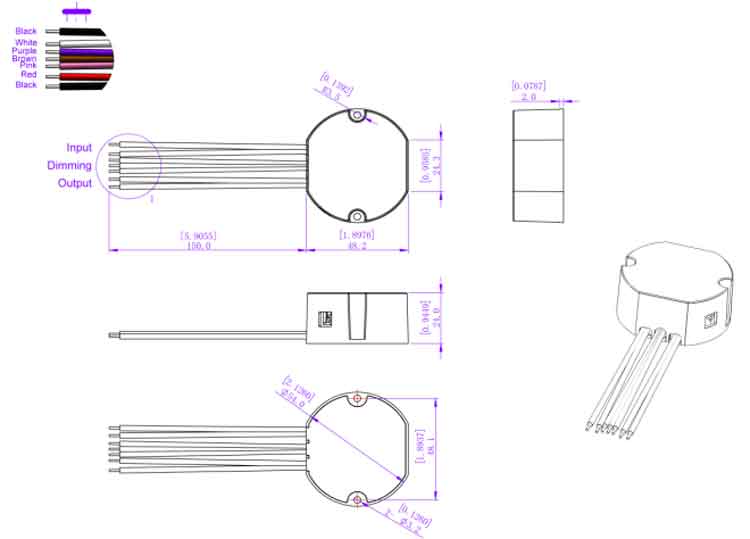

  Mechanical Specification

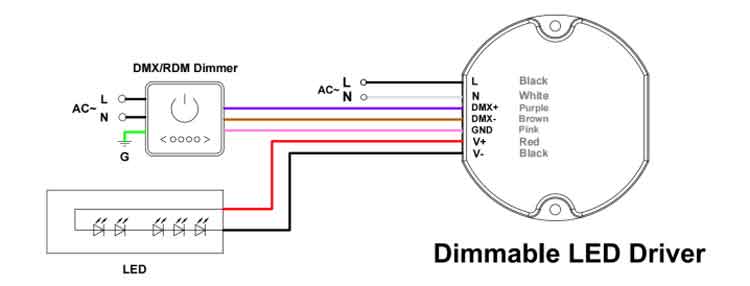

  Dimming Operation


  Related Products


Bring dynamic, flicker-free control to display cases, under-cabinet runs, and signage with the 15W constant-voltage round driver. DMX512 handles dimming across a 1–100% range at 1% depth, while RDM sets the address from your controller and the DIP switch adapts the output.


Mode：SMT-R12015-DMX-P

intput voltage：100-277vac

Size : 54*48.2*24MM
 output voltage：12vdc
Weight：0.103Kg/pcs
