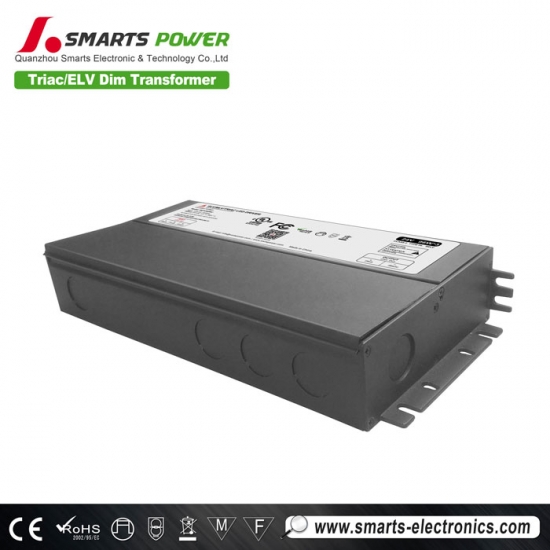

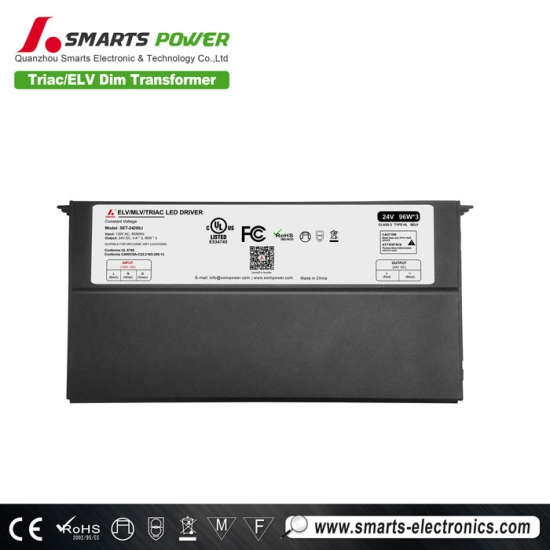

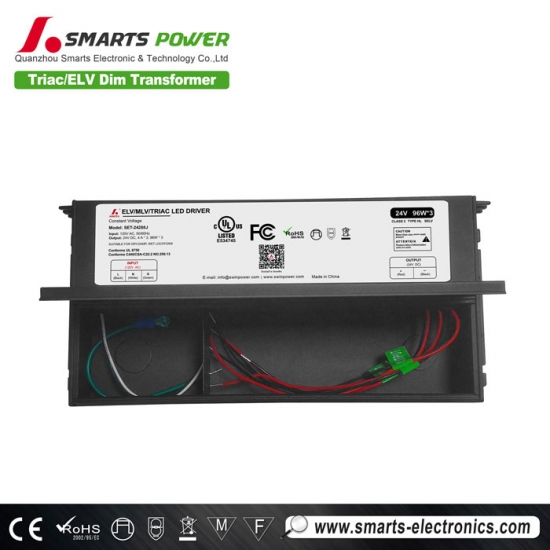

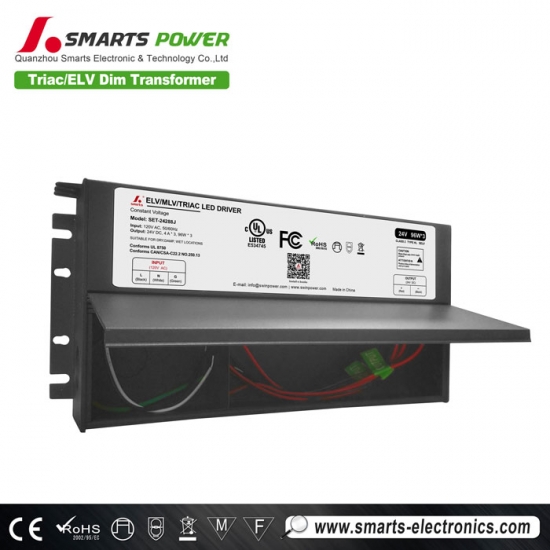

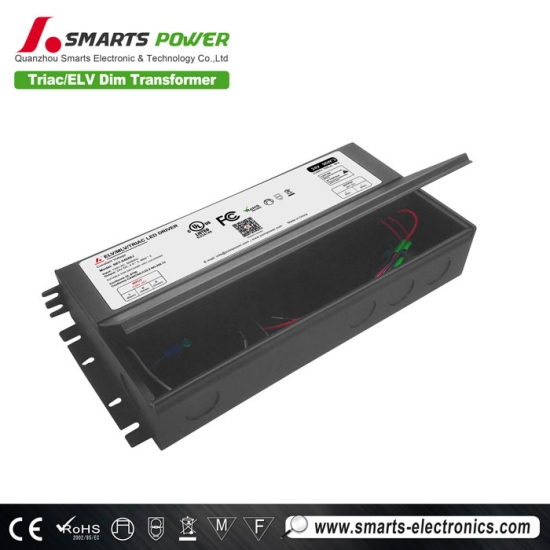

120VAC triac dimmable constant voltage class 2 output 288W led driver transformer
This new product of smarts, 288W TRIAC dimmable led electronic transformer, has integrated terminal box design, which can protect the safety of the power supply, easy to install and quick, with 3 year warranty
Specification
| Model Number | SET-24288J |
| Output Type | |
| Reted Power | 96W * 3 |
| Reted Voltage | 24V |
| Reted Current | 4A * 3 |
| Voltage Tolerance | ±0.5V |
| Voltage Regulation | ±0.5% |
| Load Regulation | ±1% |
| Input Type | |
| Voltage Range | 120V |
| Frequency Range | 47-63HZ |
| Efficiency(Typ.) | 87%@120VAC |
| Total Harmonic Distortion | THD< 20%(@100% load) |
| Power Factor(typ.) | 0.98@120VAC |
| AC Current(Typ.) | 2.79A |
| Inrush Current(Typ.) | - |
| Leakage Current | <0.5mA/ 120VAC |
| PROTECTION | |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. |
| Over Load | Hiccup mode, recovers automatically after fault condition is removed. |
| ENVIRONMENT | |
| Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) |
| Working humidity | 20 ~ 95% RH non-condensing |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH |
| Temp .coefficient | ±0.03%/℃(0~50℃) |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
| SAFETY & EMC | |
| Safety standards | UL8750, Class 2 |
| Safety standards | I/P-O/P:1.88KVAC |
| OTHERS | |

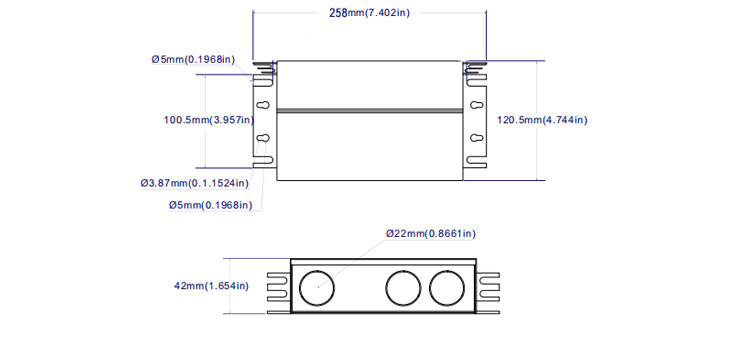

| Dimension |
10.15 x 4.74 x 1.65 inch (L*W*H) |
| Packing | - |
 |
 |
 |
 |
Mechanical Specification

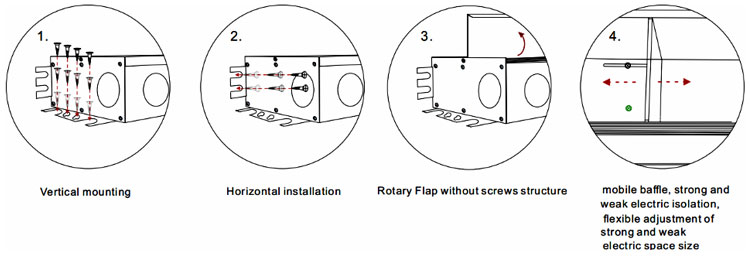

Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

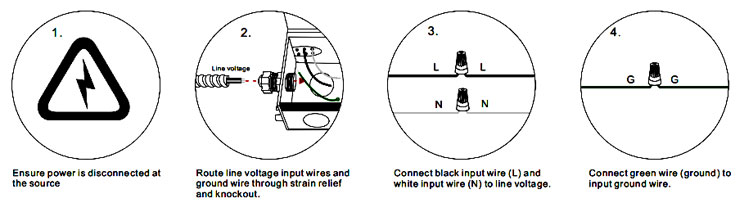

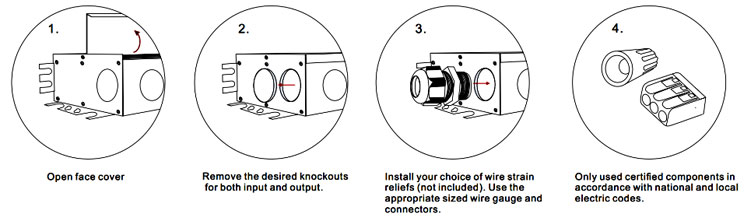

Connection Preparation
Input Connections & Grounding

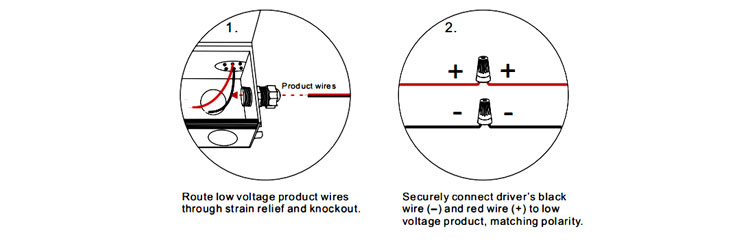

Output Connections

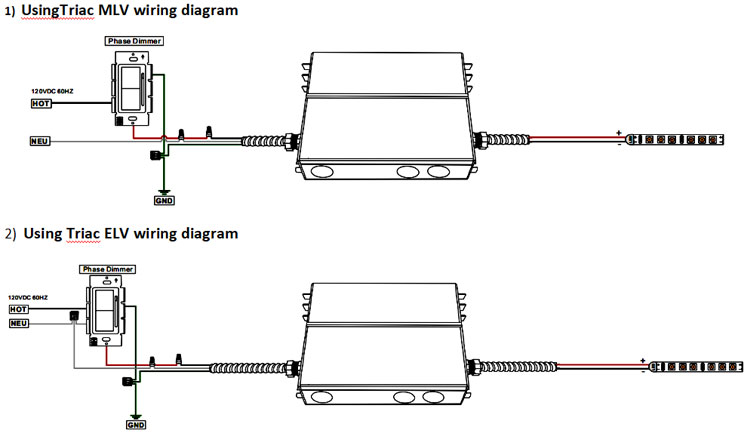

Dimming operation
Related Products
|

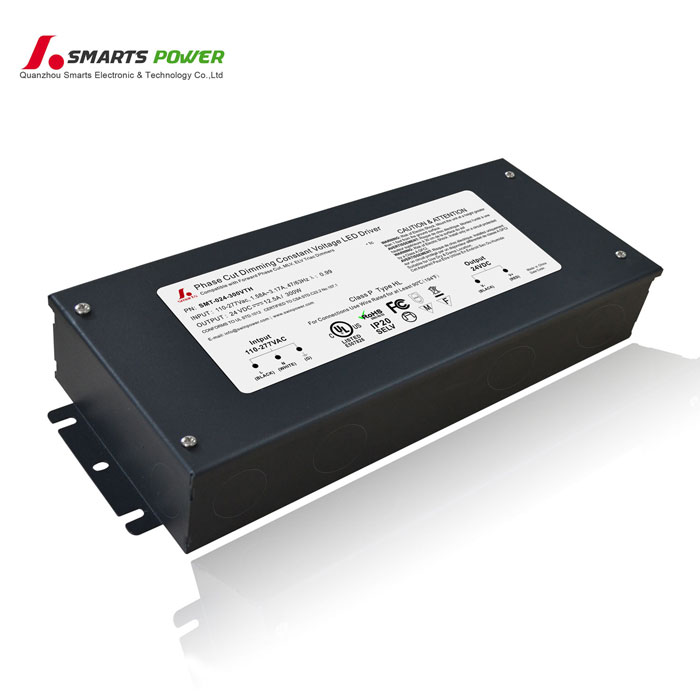

triac dimmable led driver Integrates a power supply with a terminal box to prevent power from being damaged by external forces. The Triac Dimmable LED Driver is easy to install and has an input voltage of 100-277vac. It is mainly sold in North America
Mode：SMT-024-300VTH intput voltage：100-277VAC
Size : 278*108*46mm |
