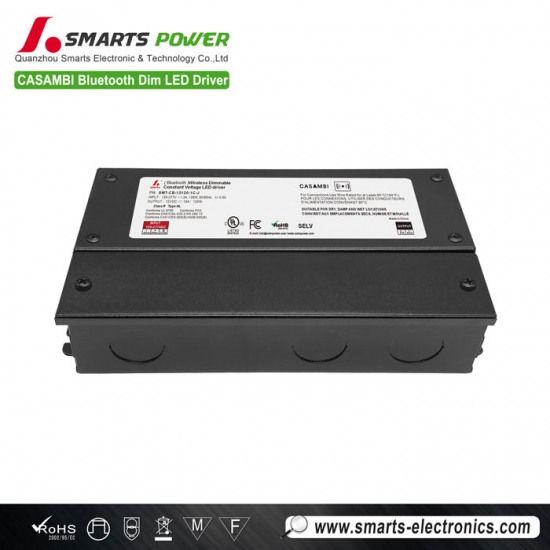

12v 100w CASAMBI dimmable constant voltage led driver power supply junction box
12v 100w CASAMBI dimmable constant voltage led driver power supply junction box
12v 100w CASAMBI dimmable constant voltage led driver power supply junction box

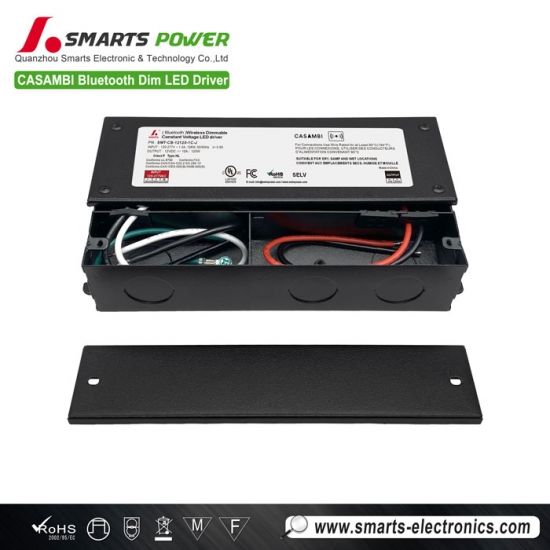

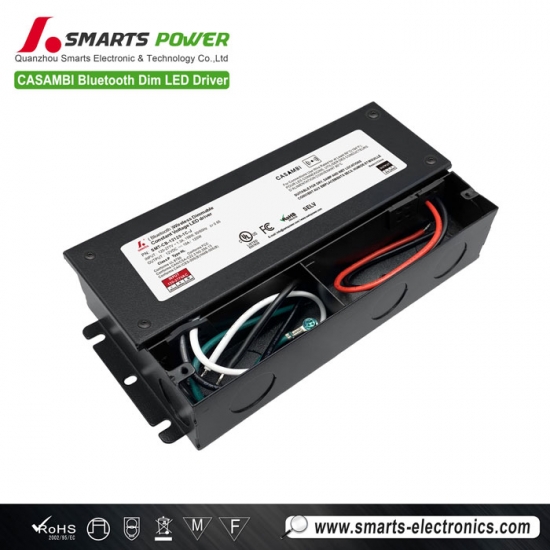

The Bluetooth CASAMBI dimmable LED driver features an integrated design with a junction box, PWM output mode, and easy and quick installation. It has a built-in NFC smart programming module, allowing for fine-tuning of the output voltage via a mobile app for smooth and stable dimming. 7-year warranty.
Specification
| Model | SMT-CB-12120-xC-J | SMT-CB-24120-xC-J | SMT-CB-48120-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class P / ROHS / REACH | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2% | |
| Load Regulation | ±3% | ±2% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | |
| Rated current | 10A | 5A | 2.5A | |
| Rated power | 120W | 120W | 120W | |
| RIPPLE & NOISE (max.) | 328mVp-p | 264mVp-p | 220mVp-p | |
| Overshoot voltage | <3% (full load),<4%(no load) | |||
| Input | Voltage Range | 120-277VAC | ||
| Frequency Range | 50 / 60Hz | |||
| Power Factor @ full load | >0.95 | |||
| THD(Typ. ) @ full load | ≤10%@120VAC ≤15%@277VAC | |||
| Efficiency(Typ.) @ full load |
85.8%@120VAC 90.0%@277VAC |
89.5%@120VAC 93.0%@277VAC |
88.0%@120VAC 91.0%@277VAC |
|
| AC Current (Max.) | 1.3A | |||
| Inrush Current (Typ.) | 49.6A/136 us@50%Ipeak 120VAC 96.0A/146us@50%Ipeak 277VAC | |||
| Leakage current | <0.5mA | |||
| Protection | Short Circuit | Hiccup mode, automatically recovers after an exception is removed. | ||
| Over Load | 105%~120% Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | |||
| Environment | Working TEMP. | -40~+50℃ (see below derating curve) | ||
| Working Humidity | 20 - 95%RH non-condensing | |||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | |||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | |||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | ||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |||
| Surge Immunity Test | AC Power Line:Differential Mode 1KV,Common Mode 2KV | |||
| EMC Immunity | FCC/ICES do not request this test. | |||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | |||
| Others | Net Weight | 2KG | ||
| Dimension | 188*95.4*42.7mm (L*W*H) | |||
| Packing | 415*265*270MM 20pcs /CTN | |||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | |||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | ||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | ||||
Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 6 |
| 13A | 7 | |
| 16A | 9 | |
| 20A | 11 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 °C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| American wire gauge | |||||
| JM8506 Built-in antenna | |||||
| 12V&24V&36V&48V Version Input wire | Black(L) White(N) Green(G)(3*18AWG) | ||||
| Output wire | 1 Channel:DW | 2 Channel:CCT | 3 Channel:RGB | 4 Channel:RGBW | 5 Channel:RGBCW |
|
Red(V+) Black(V-) |
Black(V+) White/Gray(CW-) Yellow(WW-) |
Black(V+) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Yellow(WW-) Red(R-) Green/Gray(G-) Blue(B-) |
|
| Output wire description | The cross-sectional area of the 12V &24V &48V Version output cable is 18AWG | ||||
| Remarks: | |||||
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
