12v 150w CASAMBI dimmable constant voltage led power supply driver for led strip lights
12v 150w CASAMBI dimmable constant voltage led power supply driver for led strip lights
12v 150w CASAMBI dimmable constant voltage led power supply driver for led strip lights

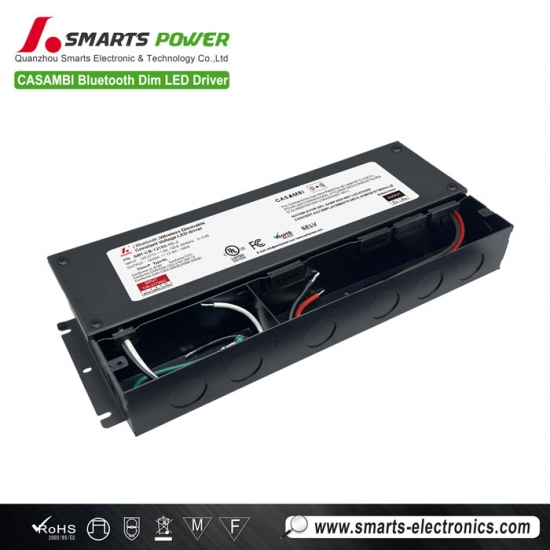

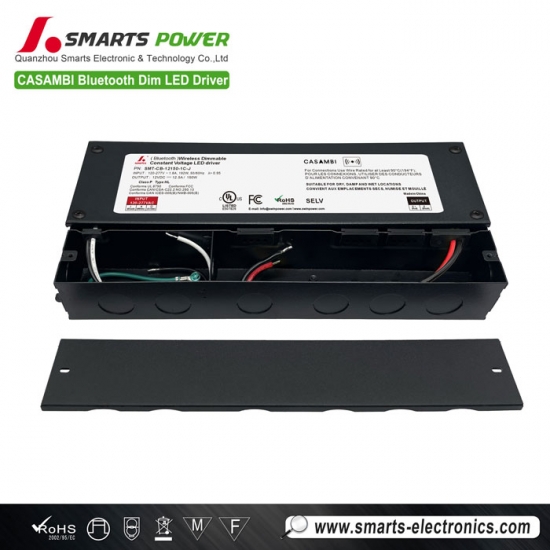

smartspower's new 150W 12V 24V 48V Bluetooth CASAMBI dimmable LED driver features an integrated design with a junction box, excellent heat dissipation, and smooth and stable flicker-free dimming from 0-100%. It comes with a 7-year warranty.
Specification
| Model | SMT-CB-12150-xC-J | SMT-CB-24150-xC-J | SMT-CB-36150-xC-J | SMT-CB-48150-xC-J | |
| Certificate | UL / FCC / ICES-005 / TYPE HL / Class P / ROHS / REACH | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±0.5V | ±0.5V | ±1V | ±1V | |
| Load Regulation | ±3% | ±1% | ±1% | ±1% | |
| Line Regulation | ≤1% | ≤1% | ≤1% | ≤1% | |
| Rated current | 12.5A | 6.25A | 4.17A | 3.125A | |
| Rated power | 150W | 150W | 150W | 150W | |
| RIPPLE & NOISE (max.) | 250mVp-p | 230mVp-p | 270mVp-p | 200mVp-p | |
| Overshoot voltage | <3% (full load) <4%(no load) | ||||
| Input | Voltage Range | 120-277VAC | |||
| Frequency Range | 50 / 60Hz | ||||
| Power Factor @ full load | >0.95 | ||||
| THD(Typ. ) @ full load | ≤15%@120VAC ≤15%@277VAC | ||||
| Efficiency(Typ.) @ full load |
89.0%@120VAC 91.5%@277VAC |
91.5%@120VAC 93.5%@277VAC |
89.0%@120VAC 91.5%@277VAC |
89.5%@120VAC 91.5%@277VAC |
|
| AC Current (Max.) | 1.6A | ||||
| Inrush Current (Typ.) | 33A/99us@50%Ipeak 120VAC 85.6A/266us@50%Ipeak 277VAC | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |||
| Over Load | 105%~110% Hiccup mode, recovers automatically after fault condition is removed. | ||||
| Over temperature | Turn off the output voltage and recover automatically after the temperature drops. | ||||
| Environment | Working TEMP. | -40~+45℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||||
| Safety & EMC | Safety standards | UL8750; CAN/CSA-C22.2 No.250.13 | |||
| Withstand voltage | I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | ||||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||||
| EMC Immunity | FCC/ICES do not request this test. | ||||
| EMC Emission | CFR47 FCC Part15 Subpart B:2020; ANSI C63.4a-2017; ICES-005 Issue 5 | ||||
| Others | Net Weight | 2KG | |||
| Dimension | 293*125*42.7mm (L*W*H) | ||||
| Packing | 335*270*280mm 10pcs /CTN | ||||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | ||||
| 2. Default states: Output voltage is DC Rate Voltage. Output frequency is 5.2KHZ. | |||||
| 3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10. | |||||

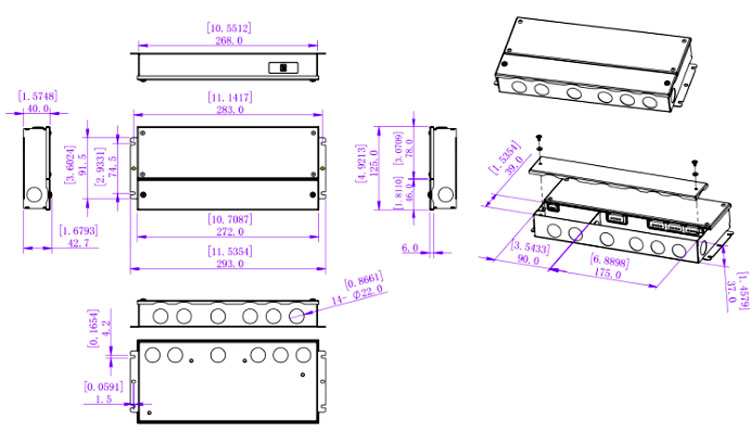

Mechanical Specification
MCB recommendation
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 9 |
| 13A | 11 | |
| 16A | 14 | |
| 20A | 17 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 6 |
| 13A | 7 | |
| 16A | 9 | |
| 20A | 11 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 °C
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
| American wire gauge | |||||
| JM8506 Built-in antenna | |||||
| 12V&24V&36V&48V Version Input wire | Black(L) White(N) Green(G)(3*18AWG) | ||||
| Output wire | 1 Channel:DW | 2 Channel:CCT | 3 Channel:RGB | 4 Channel:RGBW | 5 Channel:RGBCW |
|
Red(V+) Black(V-) |
Black(V+) White/Gray(CW-) Yellow(WW-) |
Black(V+) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Red(R-) Green/Gray(G-) Blue(B-) |
Black(V+) White/Gray(CW-) Yellow(WW-) Red(R-) Green/Gray(G-) Blue(B-) |
|
| Output wire description | The cross-sectional area of the 12V &24V &48V Version output cable is 18AWG | ||||
| Remarks: | |||||
Warm tips:
1. Recommended Max. Carrying Current (A) = wire diameter(mm²) x 10A/mm ²
For example: 1mm ² output cable, Recommended Max. Carrying Current (A) = 1mm ² x 10A/mm ²=10A
2. Any other requests for cable, we can customize.
Dimming Operation
Related Products
|
Mode：SMT-CB-12120-1C-A intput voltage：100-277vac
Size : 206*69*42MM |
