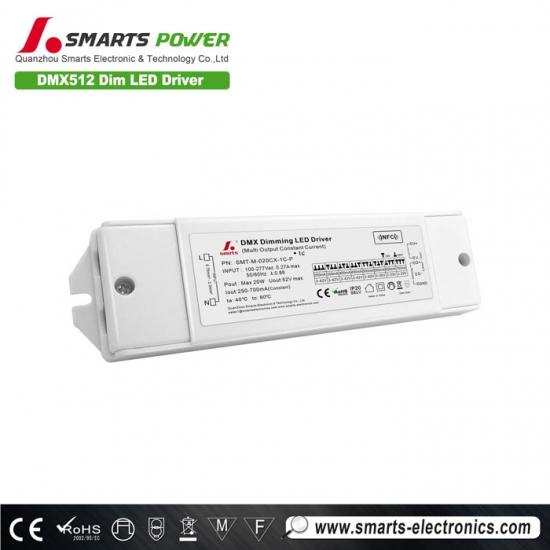

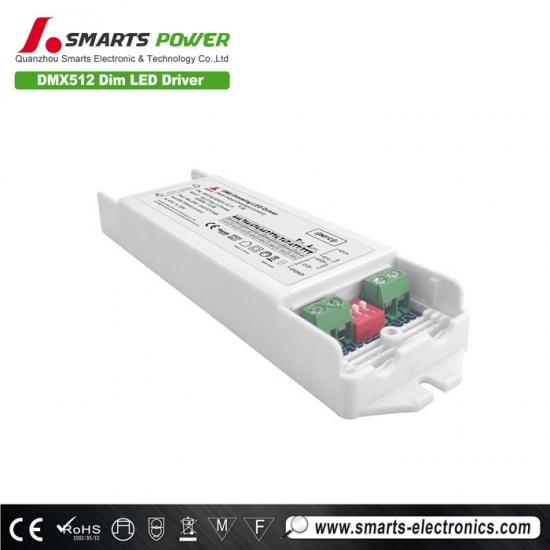

smarts new constant current dmx512 dimmable led driver 1 CH independent output, built-in NFC function, can use the application to write dmx512 address code, and adjust the output voltage, The output voltage is 250ma, 350ma, 400ma, 450ma, 500ma, 550ma, 600ma, 700ma optional

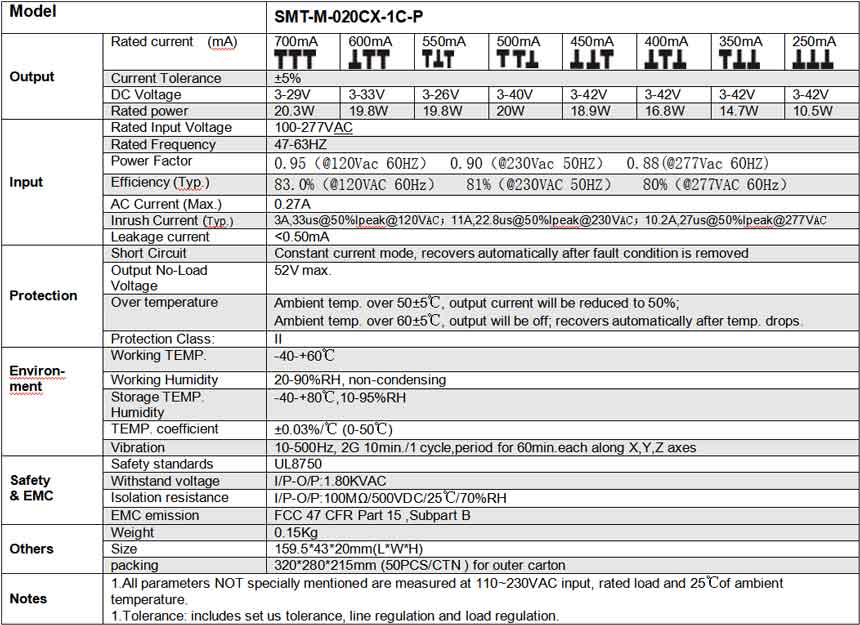

  Specification

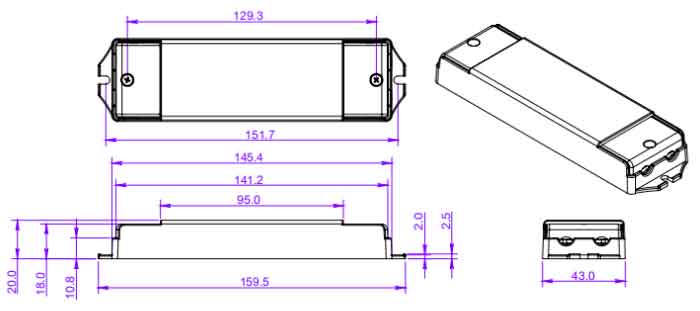

  Mechanical Specification

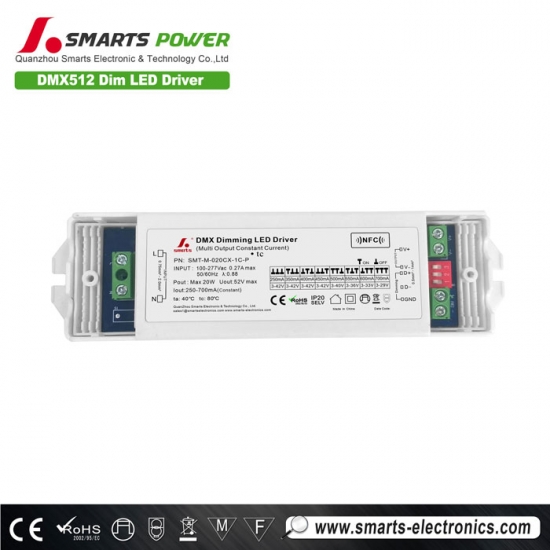

Ø Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)

Ø Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.

Ø Suggested wire diameter: Input 0.75-2mm²; Output:0.5-2mm².

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

  Dimming operation

DMX512 dimming:

 Input terminal with 3P;  Live Wire(L)  , Neutral Wire (N)  . Note: vacant for middle terminal

 Output terminals with 5P;  LED SEC positive (LED+), LED negative (LED-). Connected to LED light;

 Common anode design 3P for DIM (DMX512) dimming;

 Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.

 The default address for our DMX LED driver is 001.

 Address settings device:

 Address settings:

① RDM setting address:

Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

② NFC setting address:

The DMX address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DMX512 driver.

Simple operation about DMX512 address reset and adjusting output voltage slighting by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW)
