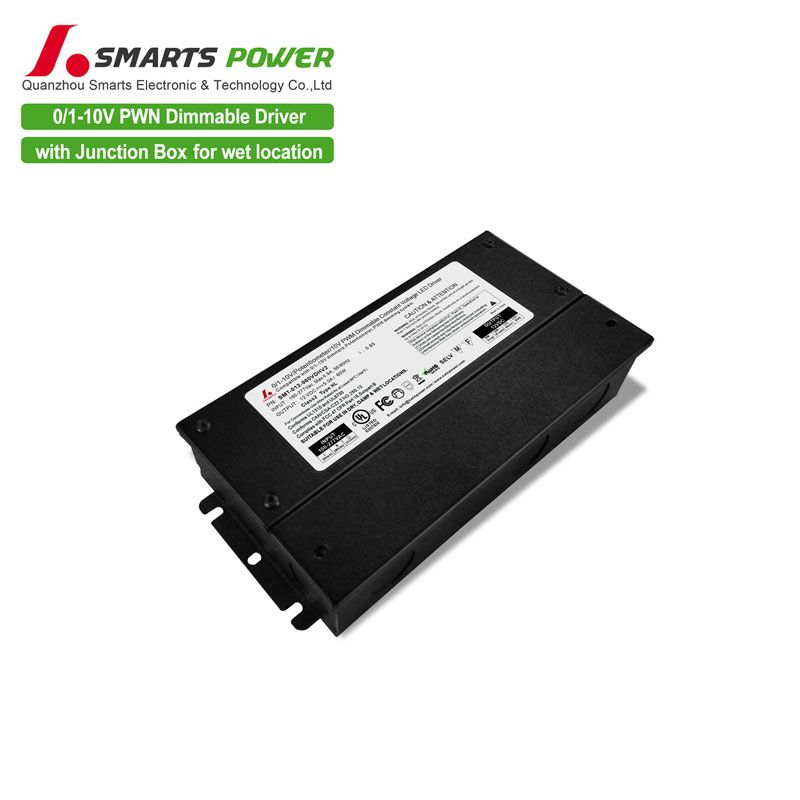

Model

SMT-012-180VDHJ (1.0 version)

SMT-012-180VDHJWV2 (2.0/3.0 ver.)

SMT-024-192VDHJ (1.0 version)

SMT-024-192VDHJWV2 (2.0/3.0 ver.)

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

±1%

Rated current

3*5A

2*4A

Rated power

180W

192W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@full load

0.99@120VAC  0.94@277VAC

0.99@120VAC  0.94@277VAC

THD(Typ.)@ full load

<20%

<20%

Efficiency(Typ.)@ full load

86%@120V   88%@277VAC

79%

87%@120V   89%@277VAC

AC Current(Max.)

2.2A@100VAC

2.3A@100VAC

Inrush Current (Typ.)

19A ,50%,1.3ms @120VAC ;  38A,50%,960us @277VAC

12.4A (twidth=430us) @277VAC

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

Others

Weight

2.2Kg (1.0 version)

Size

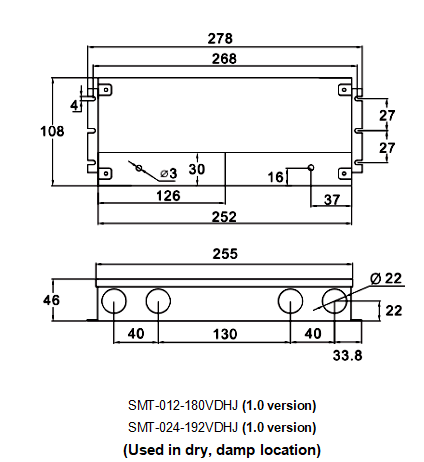

1.0 version: 278*108*46mm (L*W*H)

2.0 version: 278*110*45mm (L*W*H)  / 3.0 ver.: 278*130*45mm (L*W*H)

packaging

Carton size: 340*250*245mm  /  10pcs /CTN    G.W.:24.80KG/CTN

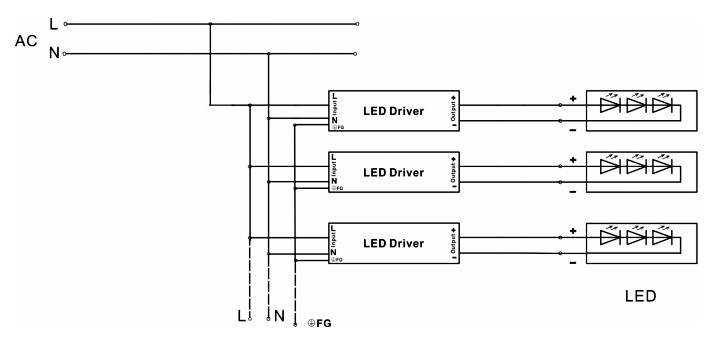

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .
