Non-dimmable LED Driver

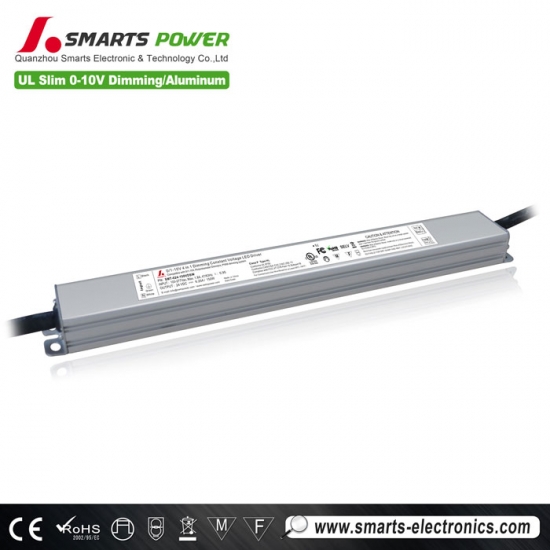

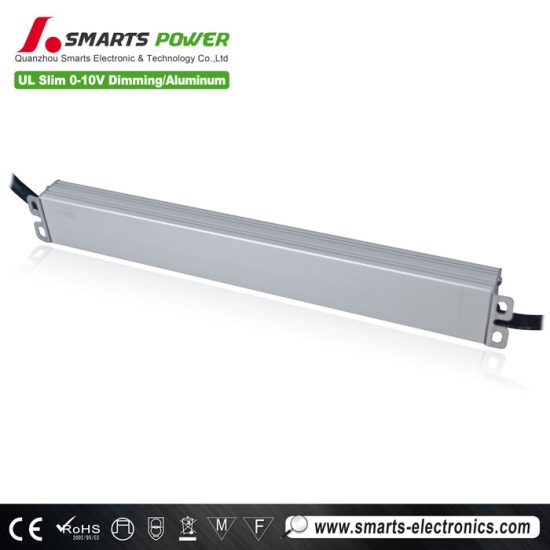

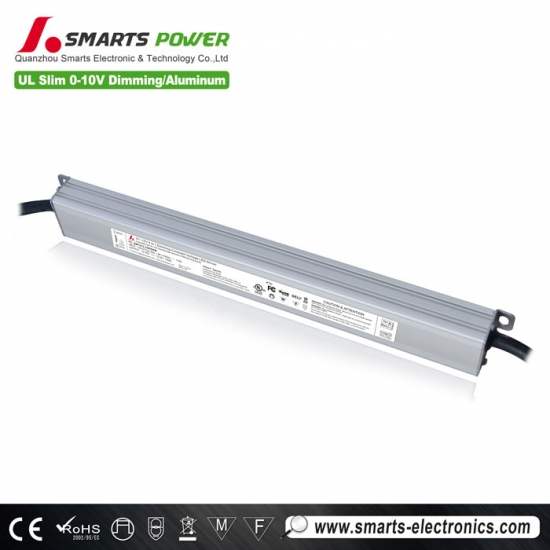

UL 277v 0-10v dimmable led driver 12v 150w slim power supply

SMT-012-150VDSW is UL led driver dimmable 0-10v 12v 150w. Ultra slim size, waterproof IP67 rating. It is able to work with gkoled's GKOCP05.


  • item no.:

    SMT-012-150VDSW
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    12.5A
  • Working Mode:

    Constant Volatge 0-10V Dimmable
  • Certification:

    CE UL FCC ROHS
  • Warranty:

    7 years
inquiry now
product details

UL 277v 0-10v dimmable led driver 12v 150w slim power supply


SMT-012-150VDSW is UL led driver dimmable super slim 150w. It has widely input voltage range 110-277Vac and 42-60Hz for north american market and european market. Output voltage is 12Vdc. It is waterproof IP67 version, aluminum case. Can be used at indoor and outdoor projects. It is compatible with jaylumi's GPC9510.


  Product parameters


model

SMT-012-150VDSW

SMT-024-150VDSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

12.5Amp

6.25Amp



Rated power

150W

150W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.95/277V



THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC



Full Load EfficiencyTyp.

84%@120VAC, 86%@277VAC

85%@120VAC, 88%@277VAC



AC CurrentTyp.

1.40A



Inrush CurrentTyp.

11A,50%,[email protected], 27A,50%,[email protected]



Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2095%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 ,CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P: 1.88KVAC



Isolation resistance

I/P-O/P100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.65Kg



Size

330*32*23mm (L*W*H)



packing

375*27*17.5mmmm , 30PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  CompatibleDimmer Type

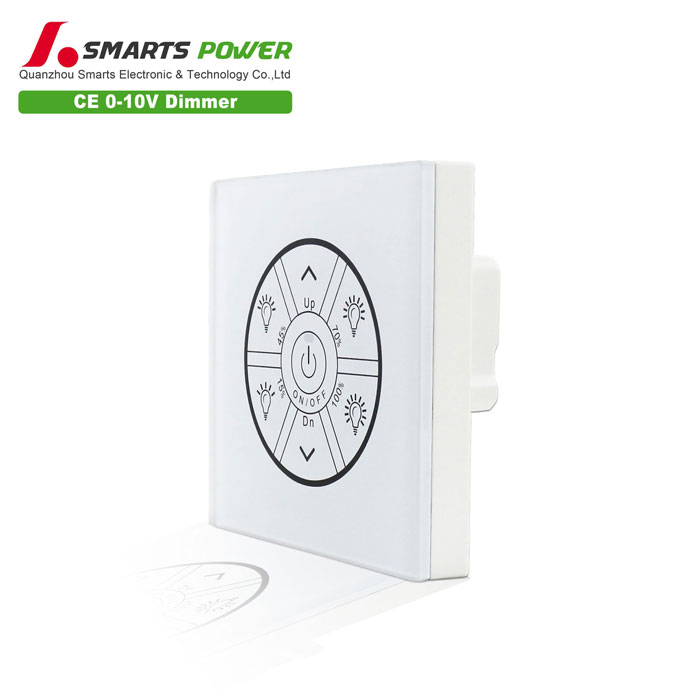

SMT50-D2 is 0-10v CE dimmer. Input Interface is AC100-265V input, it is supply power for the controller it takes. Its output Interface is DC0-10V output can control LED 0/1-10V DIM led driver. It is dimming well with gkoled's GKOWP08/01.


0-10v CE dimmer          0-10v CE dimmer


  Related Products

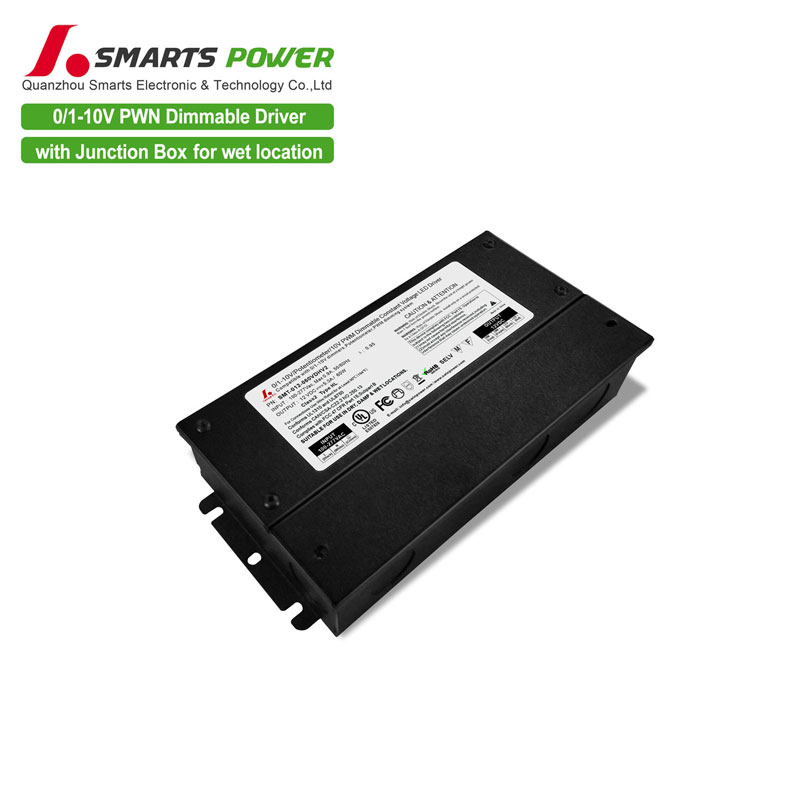

12v 60w 0-10v dimmable led driver
