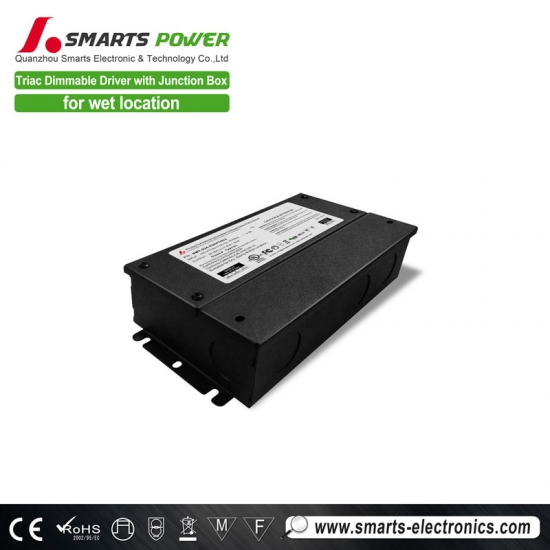

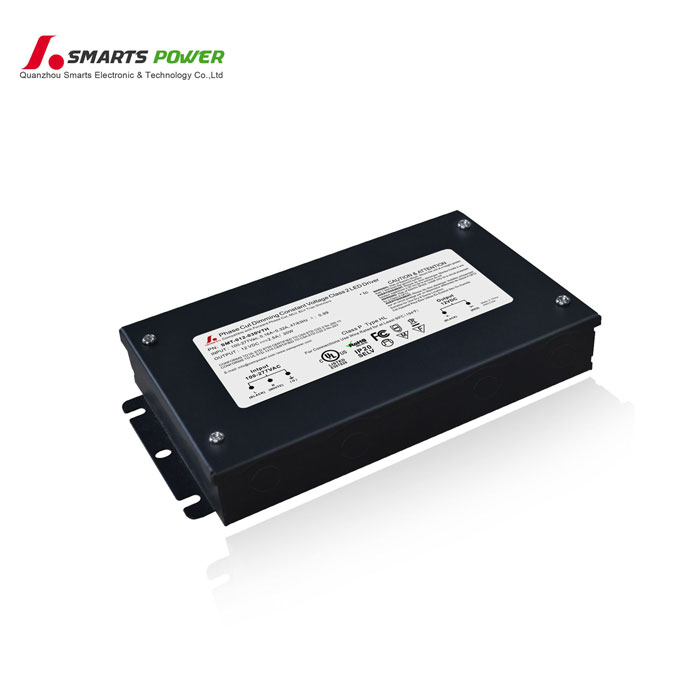

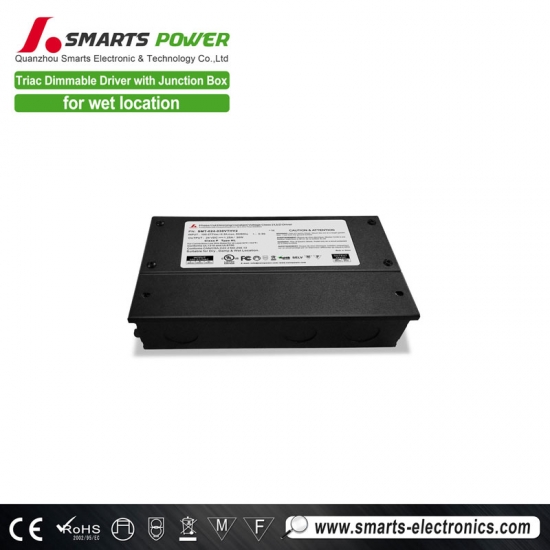

Class 2 12v 24v 30w triac dimming led strip lighting power supply

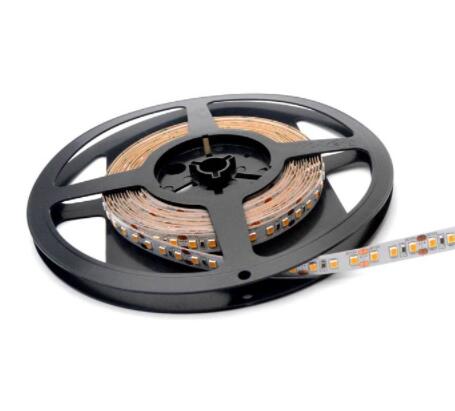

Inodoor and outdoor use, 12v 24v 30w led driver class 2 power supply, it can work well with Wave Form Lighting led strip 7 years warranty, both are good dimming and long life span.
Specification
model
SMT-012-030VTH (1.0 version)
SMT-012-030VTHV2 (2.0 version)
SMT-024-030VTH (1.0 version)
SMT-024-030VTHV2 (2.0 version)
Output
DC Voltage
12V
24V
Rated Current
2.5A
1.25A
Rated Power
30W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47-63HZ
Power Factor(Typ.)@ full load
0.99@120VAC 0.98@277VAC
0.99@120VAC 0.97@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
79%
79%
AC Current(Max.)
0.5A@100VAC
Inrush Current (Typ.)
7A, 50%, 420us
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
0.95Kg
Size
1.0 version:165*92*26mm (L*W*H); 2.0 version:165*94.5*40mm (L*W*H)
packing
355*215*215mm / 10PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

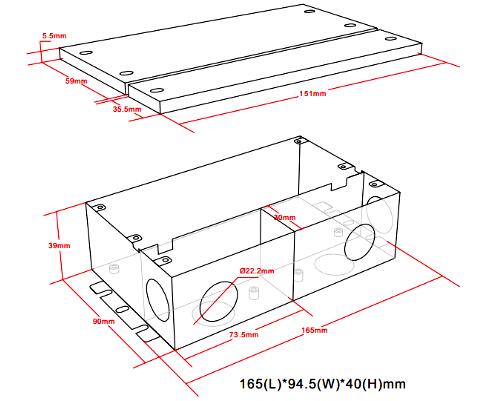

Mechanical Specification

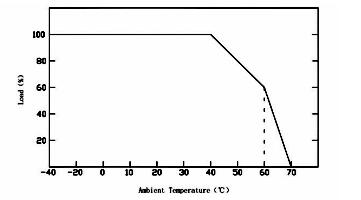

Derating Curve

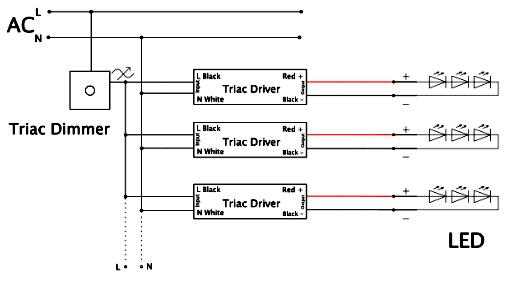

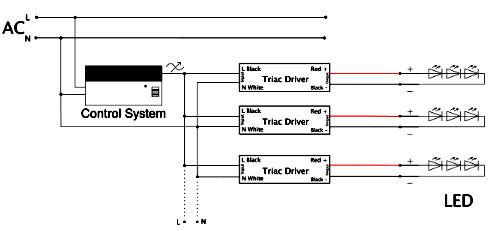

Application

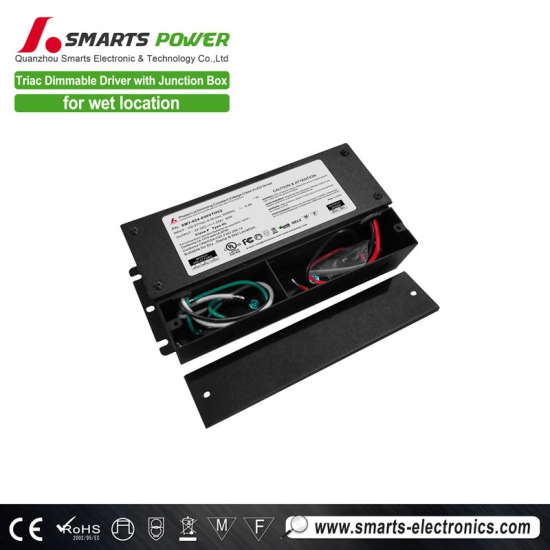

Smarts wholesale triac dimmable 30w led driver, Class 2, Class P, Type HL 100-277V AC,, UL Listed, for dry, damp and wet locations, FCC compliant, integrated junction box, Forward phase and reverse phase compatible, with the high quality led strip from Wave Form Lighting .
