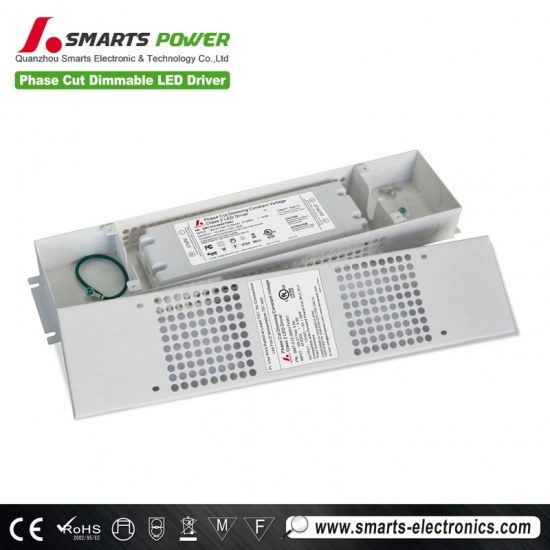

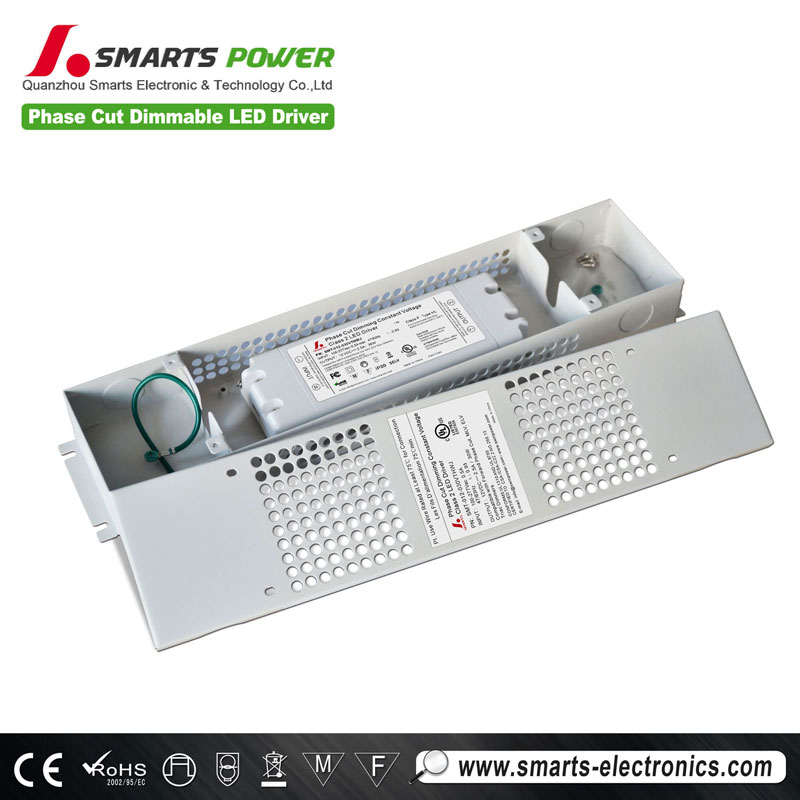

12v dc led driver triac dimmable power supply class 2 for led lighting
class 2 dimmable power supply UL Listed, newly enhanced, driver features a 0% minimum wattage load and provides superior dimming to Inter-led inc low-voltage LED tape lights, they come to with paired junction box.
Product parameters
model
SMT-012-060VTHWJ
SMT-024-060VTHWJ
Output
DC Voltage
12V
24V
Adj. Voltage Range
10-13V
21.5-25.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Voltage Tolerance
±0.5V
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.98@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
>83%
>83%
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
14A, 50%, 780us
Leakage current
<0.50mA
protection
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 0.35Kg
Size
178*61*24mm（L*W*H）
packing
20PCS/CTN
（L*W*H）
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

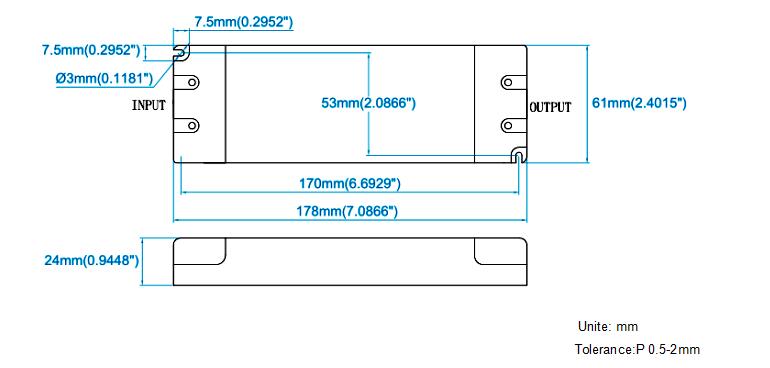

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
Compatible Strip Lighting Type

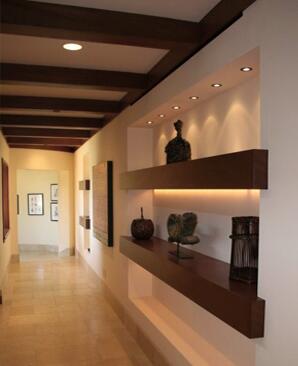

AV electric led strips as a light source, there are bright, colorful, brightness uniform characteristics, for home decoration, hotels, an ideal light source cabinet lighting options paired with this 12v 60 watt power supply.
