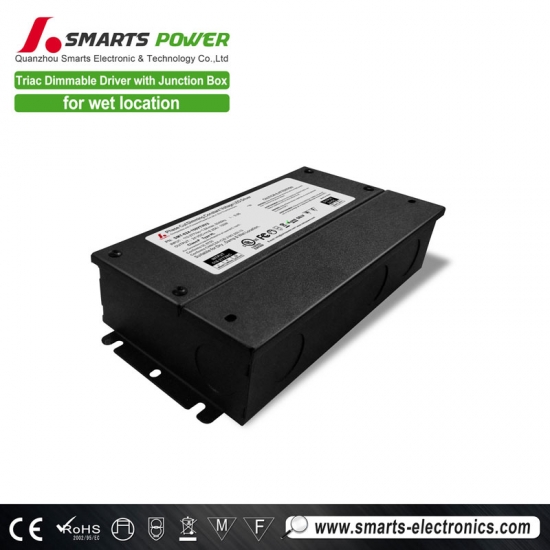

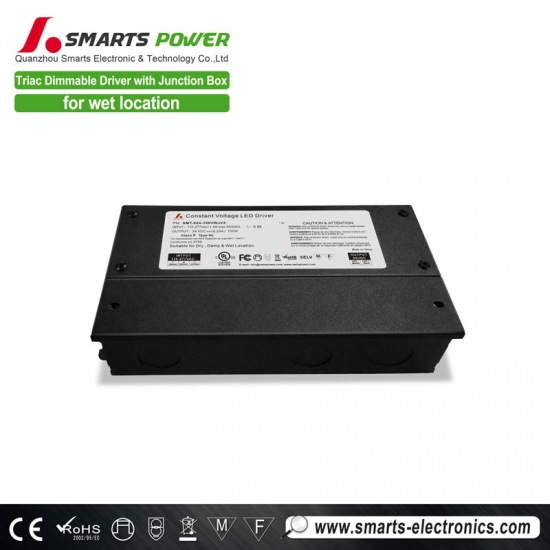

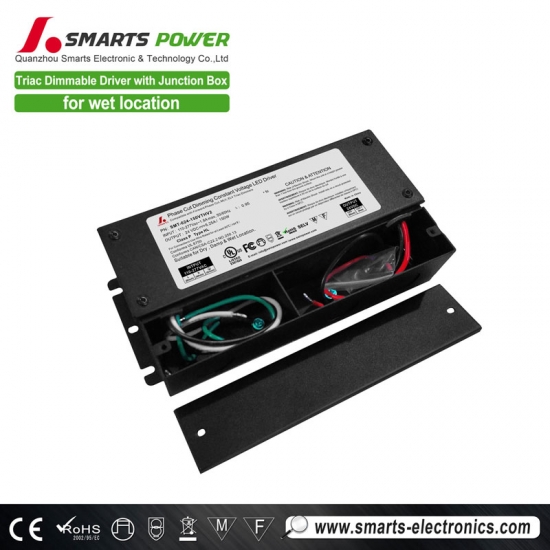

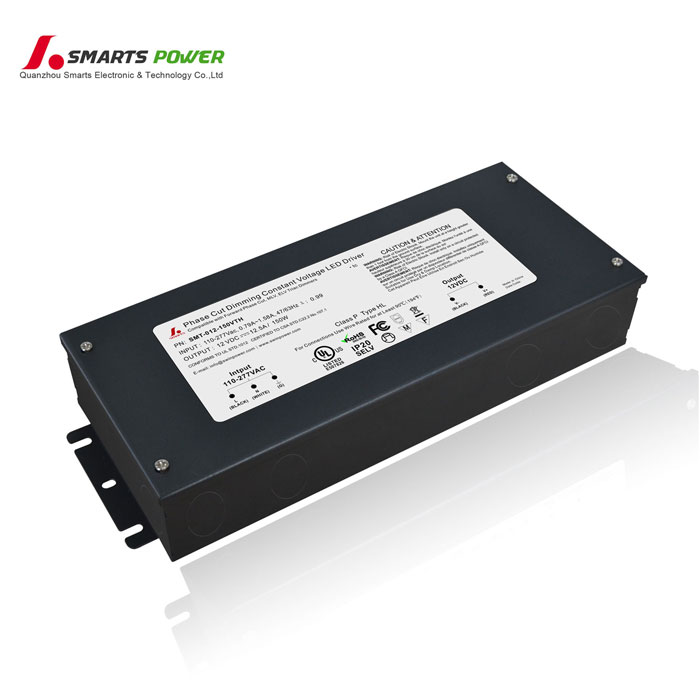

phase cut trailing edge dimmable 150 watt led drivers 12v 24v
Smarts can offers 12v 24v from 30watts to 300watts dimmer driver for led lights available with isolated circuits and overload protection. This 277vac dimming led power supply is designed to work with Firstcal Llighting led liner inddoor and outdoor project by triac dimming.
Specification
Model
SMT-012-150VTH (1.0 version)
SMT-012-150VTHV2 (2.0 version)
SMT-012-150VTHWV2 (3.0 version)
SMT-024-150VTH (1.0 version)
SMT-024-150VTHV2 (2.0 version)
SMT-024-150VTHWV2 (3.0 version)
Output
DC Voltage
12V
24V
Rated Current
12.5A
6.25A
Rated Power
150W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63HZ
Power Factor(Typ.)@
full load
0.98@120VAC 0.95@277VAC
0.99@120VAC 0.94@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
85%
85%
AC Current(Max.)
1.8A@110VAC
Inrush Current (Typ.)
15A, 50%, 1.4ms
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is
removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90% RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.8Kg
Size

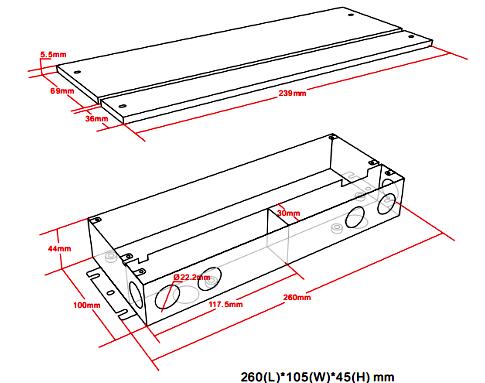

1.0 version: 260*103*46mm (L*W*H); 2.0 version: 260*105*45mm (L*W*H)
3.0 version: 260*125*45mm (L*W*H)
packing
Carton size: 440*295*145mm , Packaging: 10PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

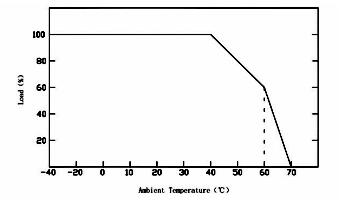

Derating Curve

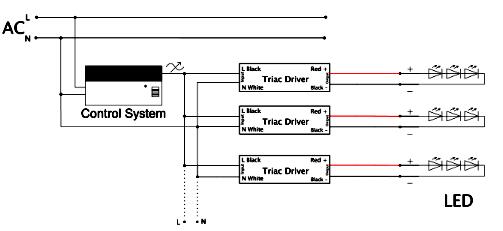

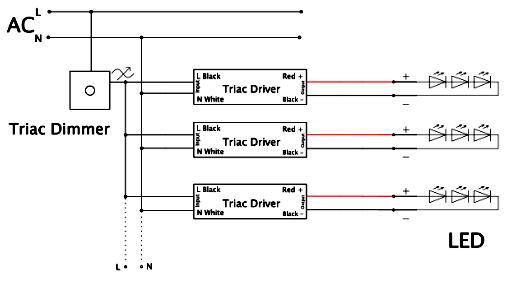

Application
Smarts 24v 150w phase cut dimmable led driver allows you to smoothly dim your Firstcal Llighting led liner triac dimming from 100% to 1% without any noise or flickering. UL/cUL listed, 7 years warranty, High PF>0.98 & High efficiency>87%.
