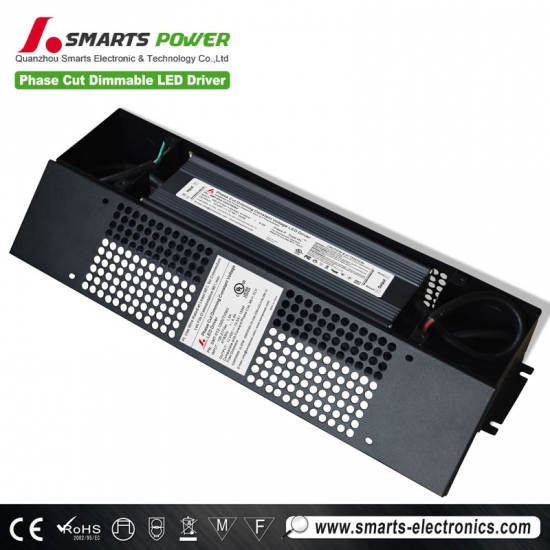

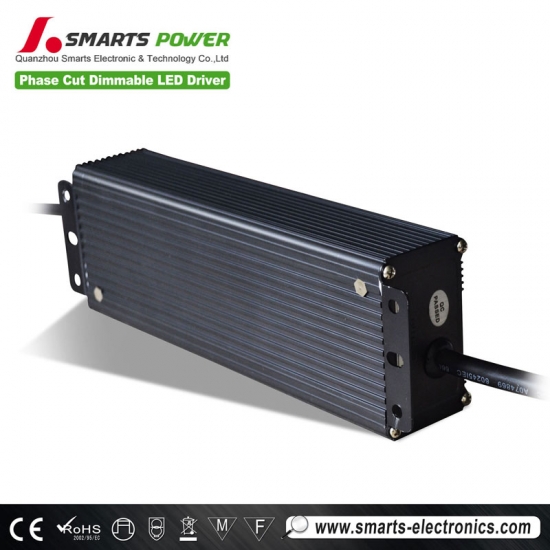

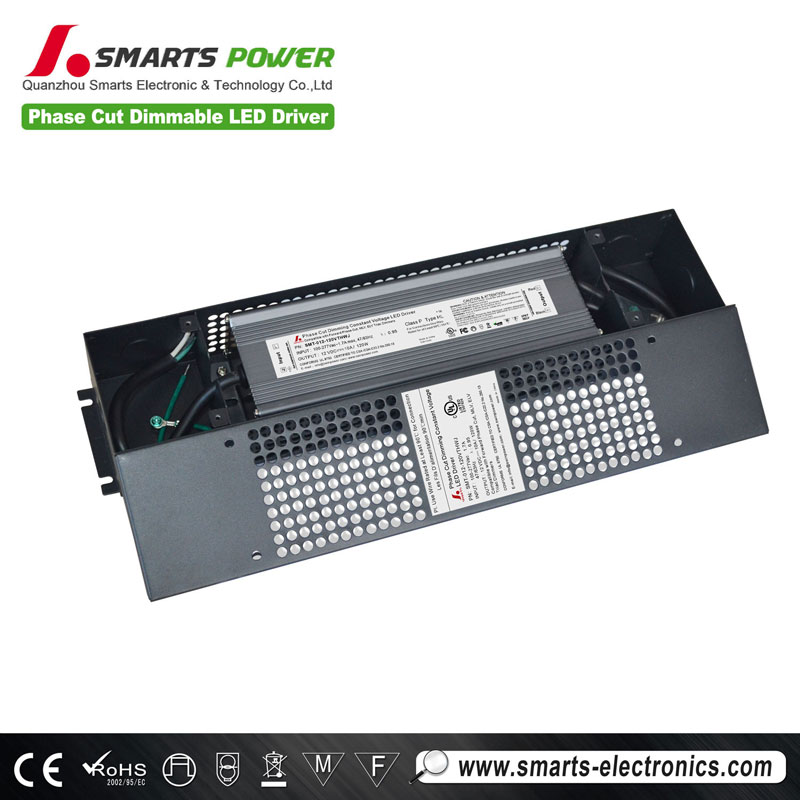

150w dimmable led driver 12v waterproof led power supply
150w led driver 12v is the most versatile and efficient dimmable electronic driver for Neo Lighting single color output LED strips, Its high power efficiency, wide voltage input, and quiet operation make the professional’s choice when it comes to flawless dimming.
Product parameters
model
SMT-012-150VTHWJ
SMT-024-150VTHWJ
Output
DC Voltage
12V
24V
Rated current
12.5A
6.25A
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
Rated power
150W
150W
Input
Voltage Range
100~277V AC
Frequency Range
47～63HZ
THD(Typ.) @full load
<20%
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.97@120VAC 0.94@277VAC
Full Load Efficiency(Typ.)
>85%
>85%
AC Current（Typ.）
1.8A/110VAC
Inrush Current （Typ.）
15A, 50%, 1.6ms
Leakage current
﹤0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Over Loading
≤120% constant current limiting, auto-recovery
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Net Weight
1.5Kg
Size
256*78*47mm (L*W*H)
packing
10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

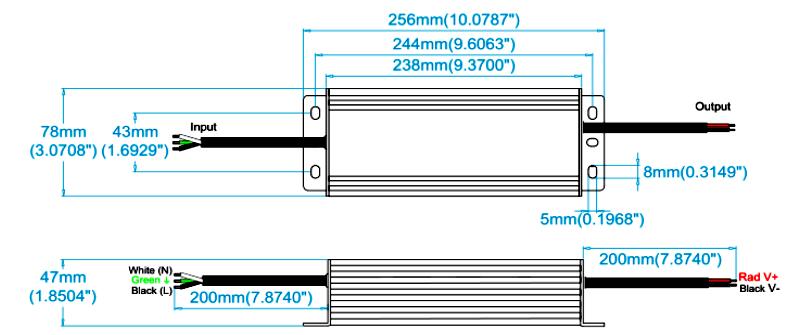

Mechanical Specification
Input terminals "Black" and "White" to connect to AC L and N.
Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
12V 150W is with 2 group of 2*16AWG output wires to separate the output current.)

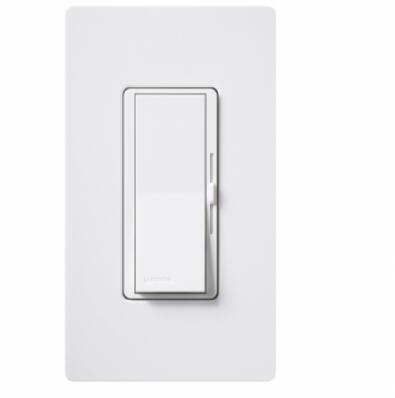

Compatible Dimmer Type
Paddle turns on/off, slide up to increase speed; down to decrease speed, three quiet fan speeds for increased comfort, designed to prevent motor hum Lutron DIVA fan control dimmers which can compatible with 150w led driver 12v.
