Non-dimmable LED Driver

24v 96w class 2 dimmable power supply triac 0-10v pwm dimming

Smarts's triac/0-10v/pwm class 2 dimmable power supplygive outstanding LED dimming performance,  with lepro LED Ceiling Lights 24v and work with leading edge TRIAC/0-10v dimmers.
  • item no.:

    SMT-024-096VTDHV2
  • lead time:

    7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T, Paypal, Western Union
  • color:

    black
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24VDC
  • Output Current:

    4.0AMP
  • Working Mode:

    constant voltage
  • Certification:

    cUL/UL, RoHS,FC C,Class p ,Class 2
  • Warranty:

    7 years warranty
inquiry now
product details

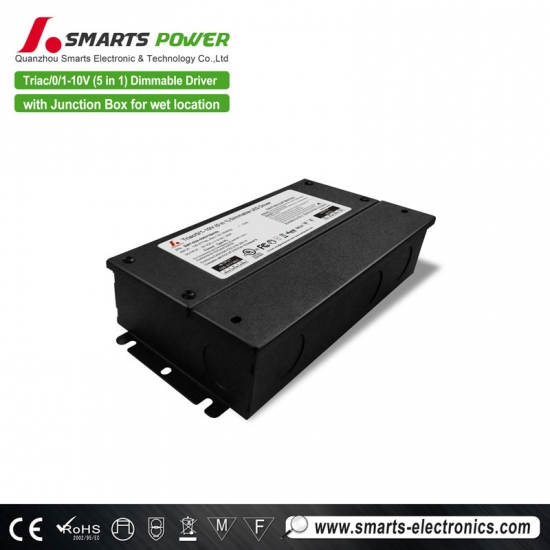

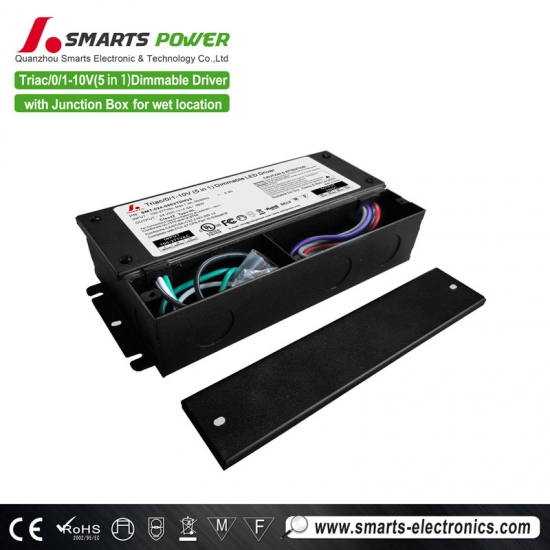

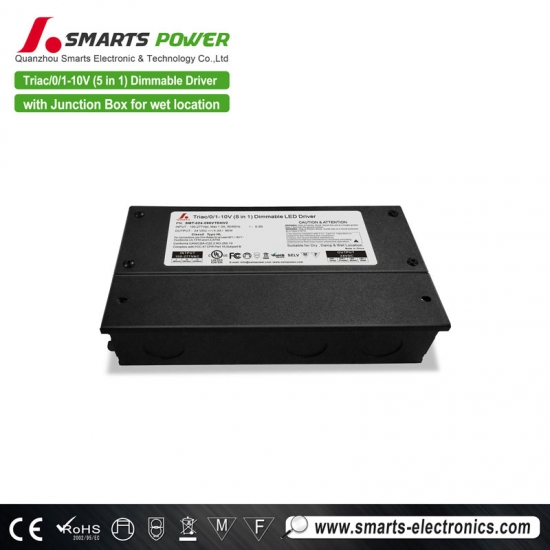

24v 96w class 2 dimmable power supply triac 0-10v pwm dimming

277v to 24v 96w class 2 dimmable power supply from SMARTS is the most versatile and efficient dimmable electronic driver for lepro LED Ceiling Lights single color. This driver has a high power factor of up to 0.98, a universal input and perfect compatibility with a wide range of dimmers for flicker free lighting.


 Specification



model

SMT-012-100VTDHV2

SMT-024-096VTDHV2

Output

DC Voltage

12V

24V

Voltage Regulation

±0.5%

Rated current

8.33A

4.0A

Voltage Tolerance

±0.5V

Load Regulation

±1%



Rated power

100W

96W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)@ full load

0.98@120VAC  0.95@277VAC

THD(Typ.)@ full load

<20%

Efficiency(Typ.)@ full load

83% @120Vac      86%@277Vac

79%

AC Current(Max.)

1.3A@100VAC

Inrush Current (Typ.)

20A, 50%, 1.6ms

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes



Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.3Kg

Size

220*94.5*40mm  (L*W*H)

packing

10PCS/CTN

 (L*W*H)

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

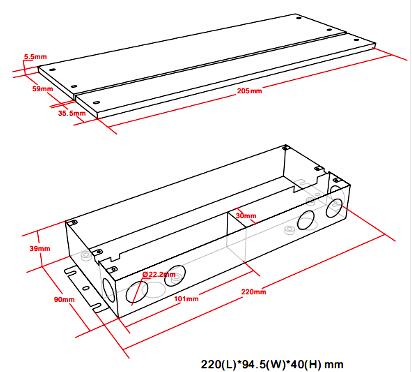

 Mechanical Specification


class 2 dimmable power supply

class 2 dimmable power supplyclass 2 dimmable power supply



 Derating Curve


led driver ac to dc


 Application

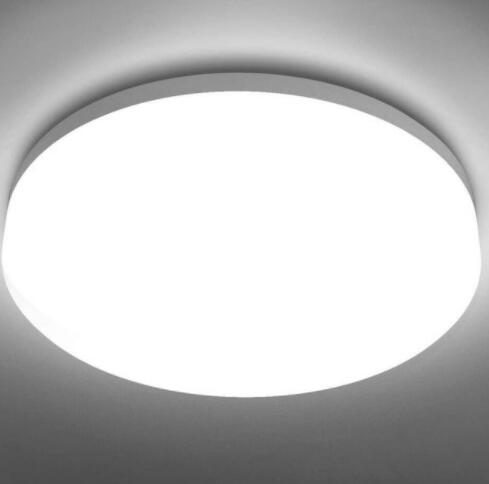

Our SMT-024-096VTDHV2 outdoor led light power supply is 24V 96W output, suitable for powering a wide range of lepro LED Ceiling Lights and linear lighting products. It can be used with any phase/0-10v control dimmers.

led driver ac to dc


 Related Products


                                                                 led driver ac to dc

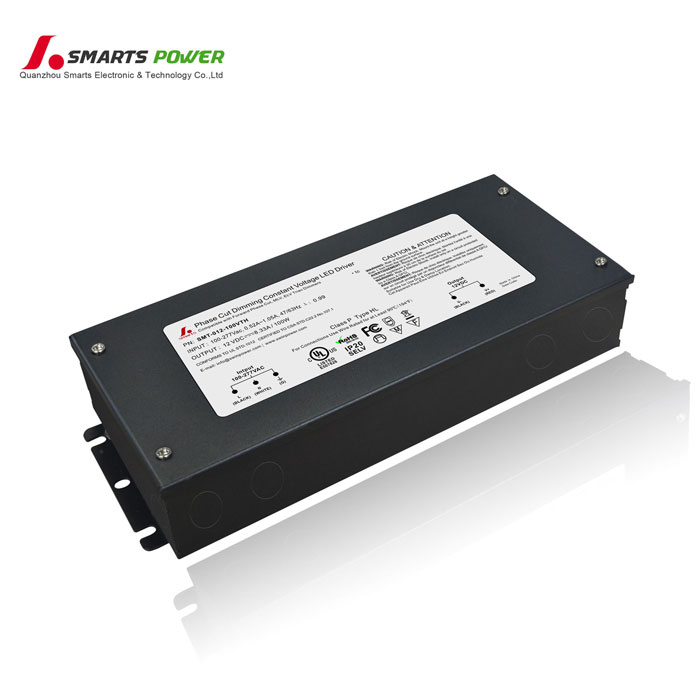

277vac Led buld driver 12V 24V 100w constant voltage triac
