12v 100w led power supply dc for led outdoor lighting

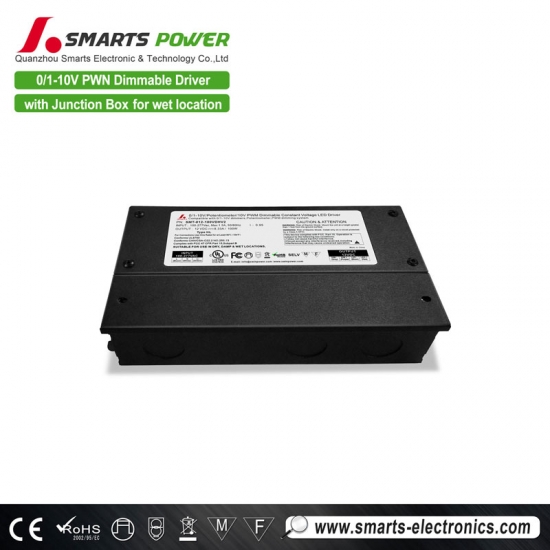

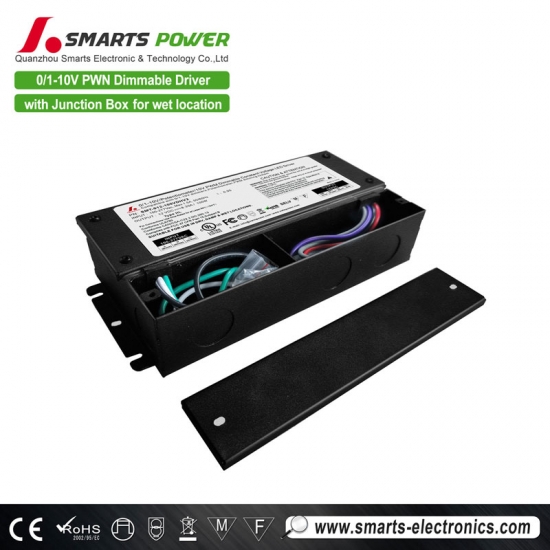

SMT-012-100VDHV2 is 12v 100w led power supply 0-10v dimming. It with high quality, high efficiency>90%, high PF up to 0.95. dimmming smoothly without flicker. It is compatible with ansell led's strip.
Product parameters
|
model |
SMT-012-100VDH (1.0 version) SMT-012-100VDHV2 (2.0 version) |
SMT-024-096VDH (1.0 version) SMT-024-096VDHV2 (2.0 version) |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
±0.5V |
|
|
Rated current |
8.3A |
4.0A (class 2 type) |
|
|
Voltage Regulation |
±0.5% |
±0.5% |
|
|
Load Regulation |
±1%
|
±1%
|
|
|
Rated power |
100W |
96W |
|
Input |
Voltage Range |
100-277VAC |
|
|
|
Frequency Range |
47-63Hz |
|
|
|
Power Factor(Typ.)@ full load |
0.98@120VAC 0.95@277VAC |
|
|
|
THD（Typ.)@ full load |
<20% |
|
|
|
Efficiency(Typ.)@ full load |
83% @120Vac 86%@277Vac 79% |
|
|
|
AC Current（Max.） |
1.3A@100VAC |
|
|
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
|
Working Humidity |
20～90%RH, non-condensing |
|
|
|
Storage TEMP. Humidity |
-40～+80℃,10~95%RH |
|
|
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC Part 15 B |
|
|
Others |
Weight |
1.37Kg (1.0 version) |
|
|
|
Size |
1.0 version: 220*94.5*40mm(L*W*H) / 2.0 version: 220*94.5*40mm(L*W*H) |
|
|
|
packing |
298x240x220mm / 10PCS/CTN 10PCS/CTN 385*335*200mm 20PCS/CTN |
|
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |
Mechanical Specification

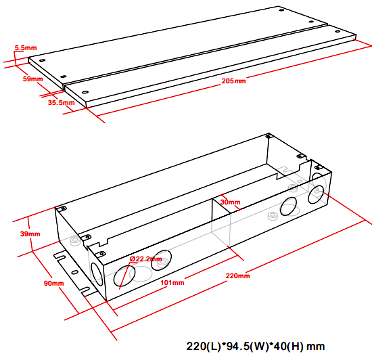

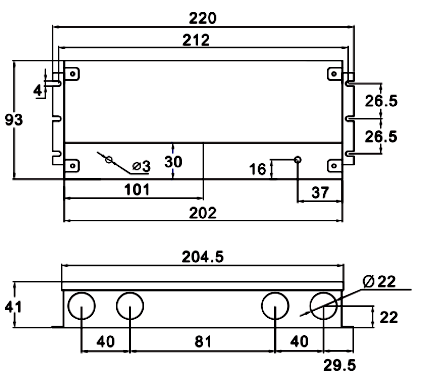

CompatibleDimmer Type

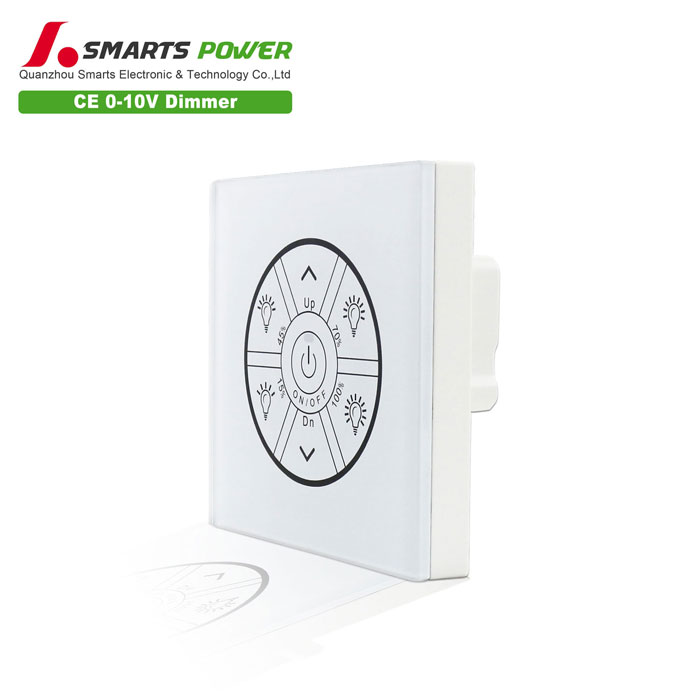

SMT50-D2 is CE 0-10v dimmer. Its output Interface DC0-10V output can control LED 0/1-10V DIM driver. Its nput Interface AC100-265V input,supply power for the controller it takes. It is dimming well with litom's LED lighting.
Related Products

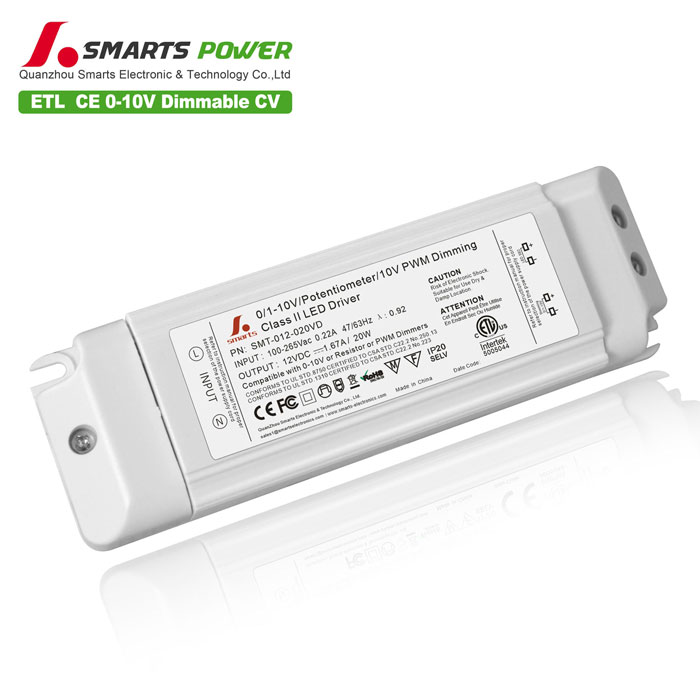

It is CE ETL ROHS approved 12v 20w 0-10v dimming led driver. It is small size with IP20 rate for indoor projects. It has 5 years warranty.
Mode：SMT-012-020VD |
