12v DALI dimming driver 45w dimmable led power supply

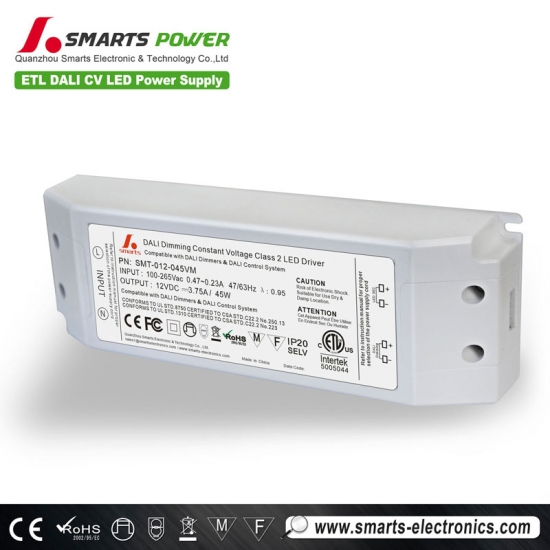

SMT-012-045VM is 12v dali dimming driver. Output wattage is 45w, input voltage range 100-130Vac/170-265Vac. It is paired with junction box for North American market. It is compatible with EURI LIGHTING's strips.
Product parameters
|
Model |
SMT-012-045VM |
SMT-024-045VM |
SMT-036-045VM |
SMT-048-045VM |
||||
|
output |
DC Voltage |
12V |
24V |
36V |
48V |
|||
|
|
Voltage Tolerance |
±0.5V |
||||||
|
|
Rated current |
0～3.75A |
0～1.87A |
0～1.25A |
0～0.93A |
|||
|
|
Rated power |
45W |
||||||
|
input |
Voltage Range |
100-130VAC / 170-265VAC |
||||||
|
|
Frequency Range |
47～63HZ |
||||||
|
|
Power Factor （Typ.） |
PF≧0.90/110V / PF≧0.90/220V |
||||||
|
|
Efficiency（Typ.） |
>88% |
>88% |
>88% |
>88% |
|||
|
|
AC Current（Typ.） |
0.52A@110VAC |
0.26A@220VAC
|
|||||
|
|
Leakage current |
﹤0.60mA/110VAC / ﹤0.70mA/220VAC |
||||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
||||||
|
|
Over Loading |
≦120% |
||||||
|
Environment |
Working TEMP. |
-40～+60℃ |
||||||
|
|
Working Humidity |
20～90%RH, non-condensing |
||||||
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||||
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||||
|
|
Vibration |
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||||||
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||||||
|
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||||||
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≧50%loading) |
||||||
|
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11(Surge 4KV） |
||||||
|
Others |
Net.Weight |
0.55Kg |
||||||
|
|
Size |
180*60*34mm（L*W*H） |
||||||
|
|
packing |
355*215*215mm/20pcs/CTN |
||||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again |
|||||||
 |
 |
 |
 |

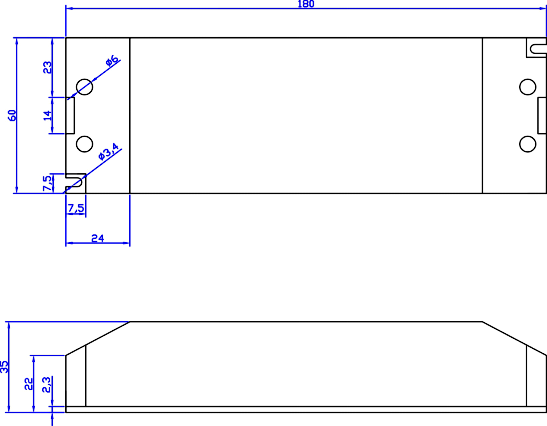

Mechanical Specification

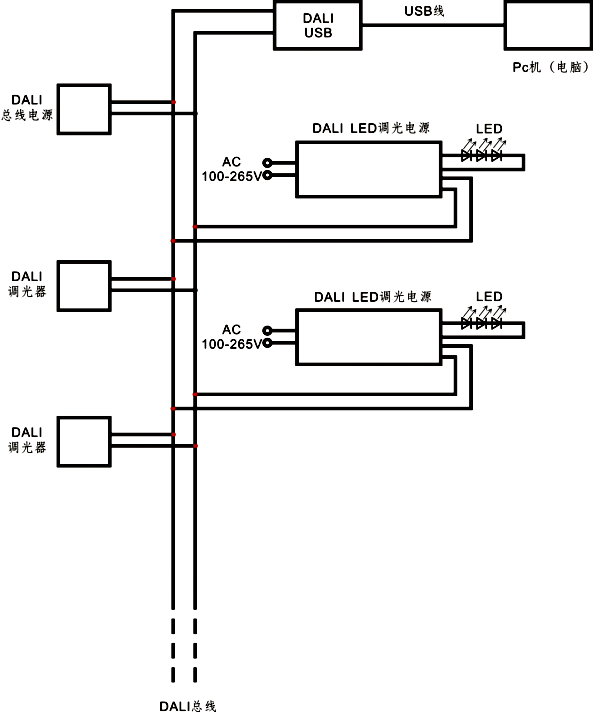

Connecting solution:
Compatible Lighting Type

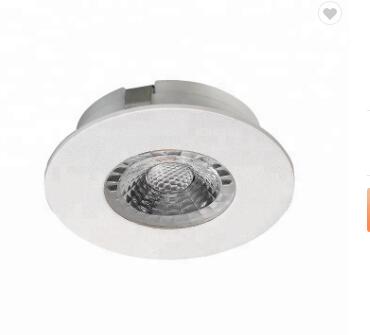

Our 12v 45w DALI dimmable led driver can work well with core lighting’s cabinet light.
Related Products

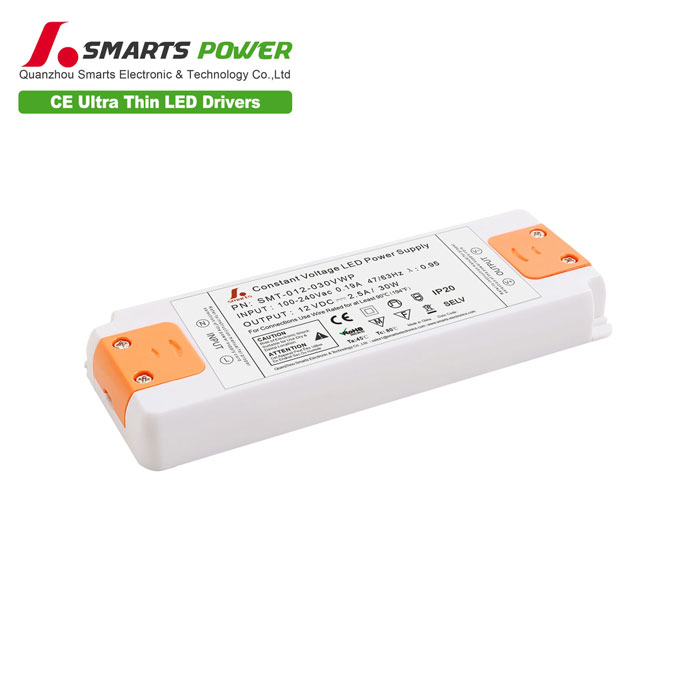

It is 12v 30w non-dimmable led driver. It has CE ROHS approval, 3 years warranty. It is plastic outer case, super slim size.
