277vac 12v 24v 60w dimmable power supply for led strip flicker free

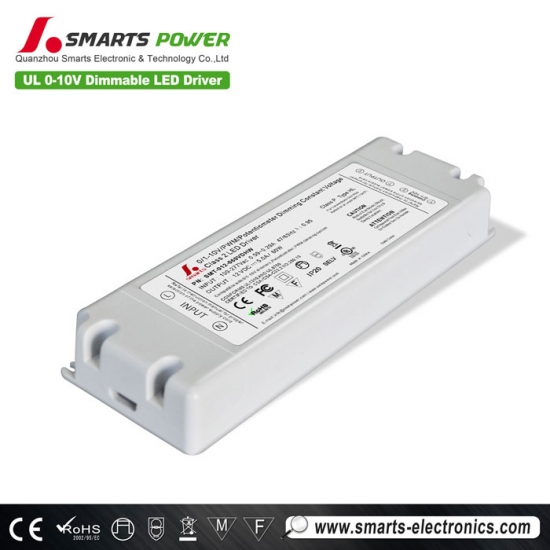

SMT-012-060VDHW is 12v 60w dimmable driver with IP20 plastic case, which provides regulated power to your LED circuit with a sophisticated dimming function. This small and compact unit ensures reliable performance from a single LED or an LED string and is suitable for Larson Electronics LED Canopy Light 45w.
Specification
model
SMT-012-060VDHW
SMT-024-060VDHW
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47~63HZ
Power Factor ( Typ.)
0.98@120VAC 0.98@277VAC
0.98@120VAC 0.98@277VAC
Full Load Efficiency(Typ.)
>88%
>89%
AC Current(Typ.)
0.9A/110VAC / 0.64A/277VAC
Inrush Current (Typ.)
14A, 50%, 780us
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40~+60℃
Working Humidity
20~90%RH,non-condensing
Storage TEM.,Humidity
-40~+80℃,10~95%RH
TEMP.coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
Class P, Type HL, EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level (surge4KV)
Others
Weight
About 0.35Kg

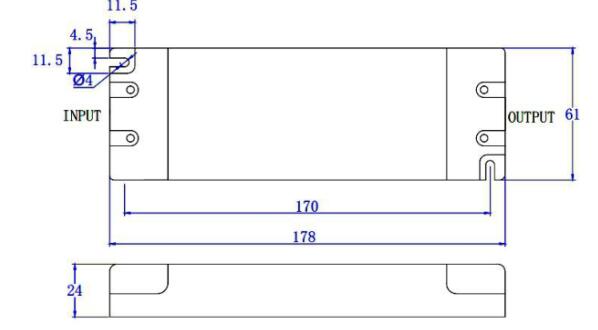

Size
178*61*24mm(L*W*H)
packing
20PCS/CTN
(L*W*H)
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .

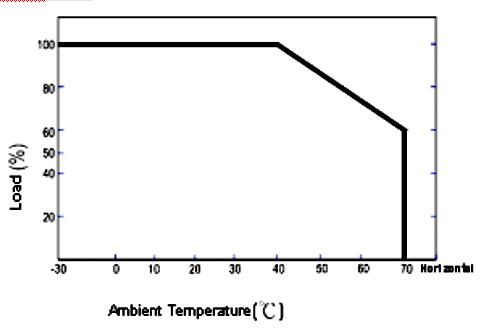

Derating Curve

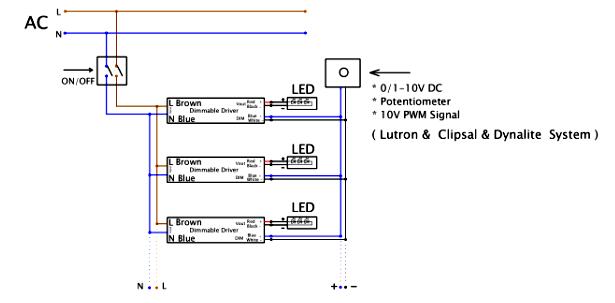

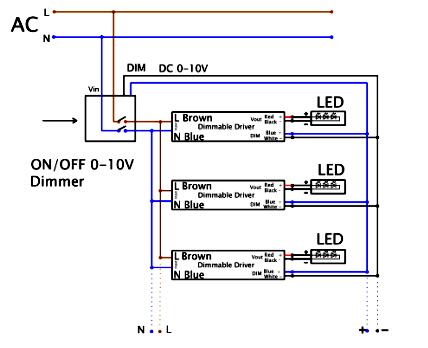

Application
Smarts UL,FCC, Class 2 certificated SMT-012-060VDHW is 12v 60w output, 100-277vac input led driver flicker free, which have a 0/1-10V to PWM dimming driver, can solved the compatible problem of fluorescent dimming system and Larson Electronics LED Canopy Light 5000K.
Related Products

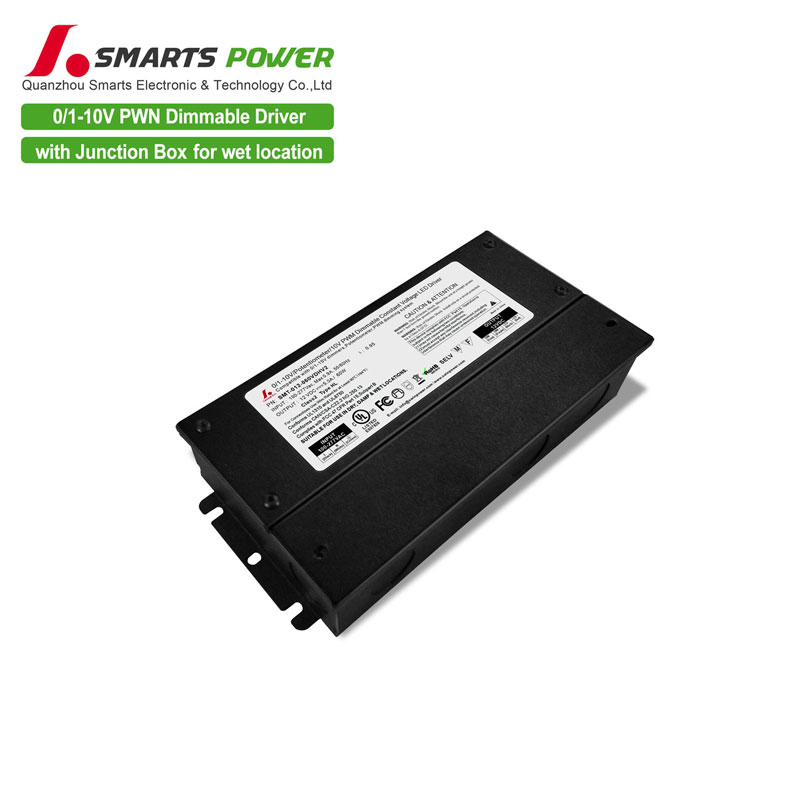

277volt ac to 12V 24V 60W 0-10V dimmable led lighting driver with junction box, it can match with Lutron 277vac dimmer, non flicking...
Mode：SMT-012-060VDHV2 Output: 12vdc 5.0amp 60watt intput voltage：100-277VAC Size : 188*94.5*40mm Working mode: constant voltage dimming mode: 0-10v dimmable CE,UL, RoHS,FCC, Class p ,type HL approval 7 years warranty |
