Non-dimmable LED Driver

flicker free ac to dc 0-10v dimmable 12v class 2 30w led driver

SMT-012-030VDHW 0-10v dimming 12v class 2 led power supply is a range of 30W IP20 rated led drivers designed for indoor LED lighting applications. Available in 12VDC and 24VDC models with 2.5amp and 1.25amp output current, which can work well with Max Light commercia led high efficiency.
  • item no.:

    SMT-012-030VDHW
  • lead time:

    7 working days for sample
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    xiamen,shenzhen
  • payment:

    T/T, Paypal, Western Union
  • color:

    WHITE
inquiry now
product details

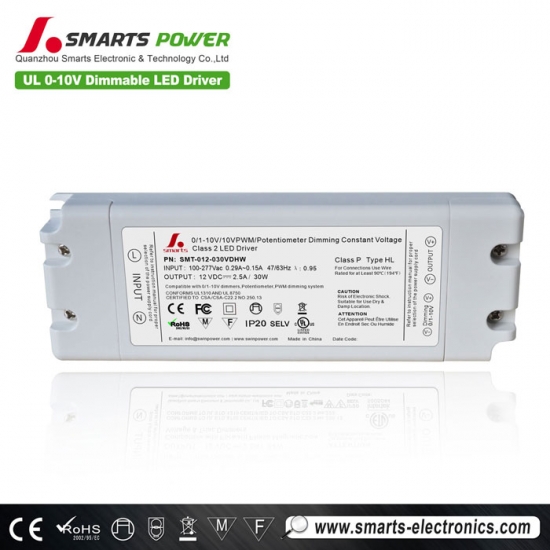

flicker free ac to dc 0-10v dimmable 12v class 2 30w led driver

SMT-012-030VDHW is a range of 30W single output constant voltage led strip light flicker free led driver, of non waterproof design. With quick connect terminals these dimmable led transformer are easy to install and suitable for indoor LED lighting applications, particularly those with space constraints or in hard to access locations, such as Max Light commercia led highly qualified.


 Specification



model

SMT-012-030VDHW

SMT-024-030VDHW

OutputS

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

1.66Amp

0.83Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC 0.98@277VAC

0.98@120VAC 0.98@277VAC

Full Load Efficiency(Typ.)

>88%

>89%

AC Current(Typ.)

0.53A/110VAC  /  0.33A/277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along

X,Y,Z



Safety&EMC

Safety standards

Class P, Type HL, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 0.25Kg

Size

155*54*20mm (L*W*H)

packing

40PCS/CTN

(L*W*H)

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

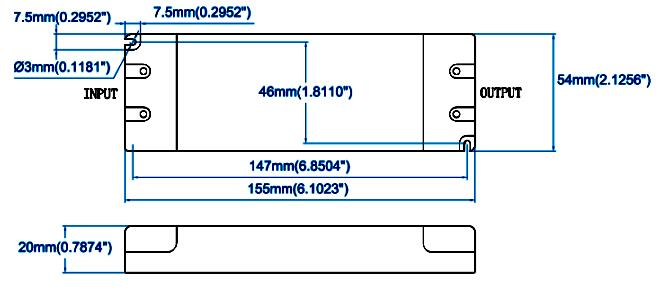

 Mechanical Specification


12v class 2 led power supply


12v class 2 led power supply12v class 2 led power supply

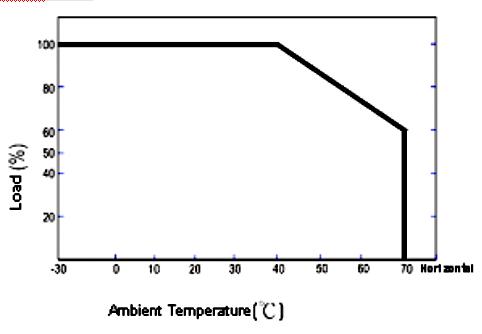

 Derating Curve


12v class 2 led power supply

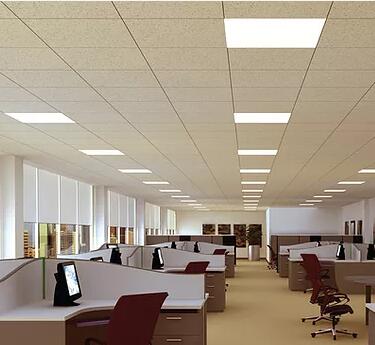

 Application


SMT-012-030VDHW 12v class 2 led power supply operate from a 100-277VAC input range. These units will provide up to 30W of output power and a maximum output current of 2.5A. Can work well with Max Light commercia led help productivity for indoor project.

12v class 2 led power supply


 Related Products


                                                                 12v class 2 led power supply

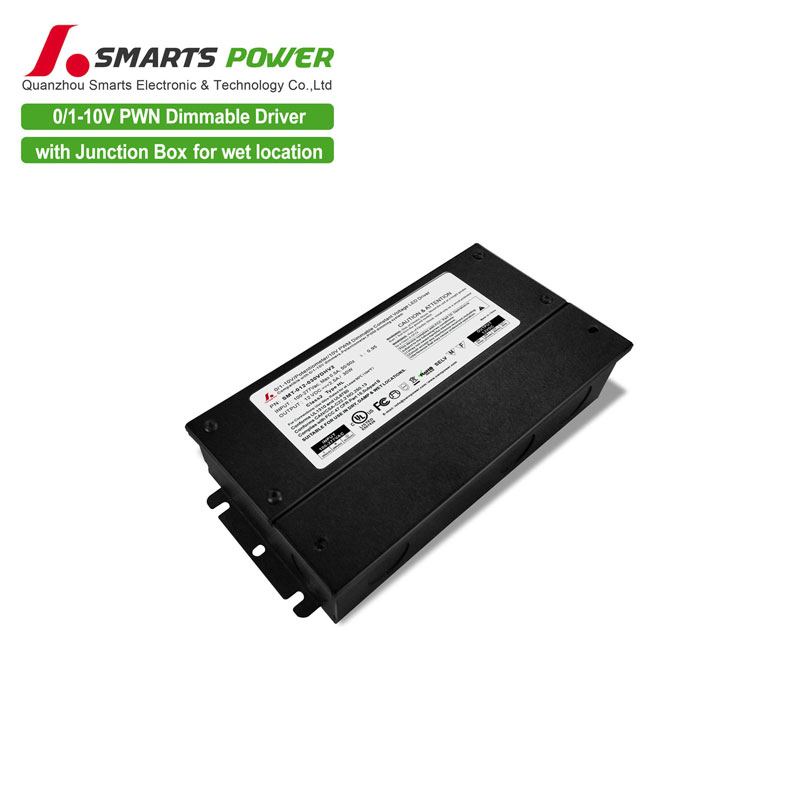

277vac UL/cUL listed non flicking 12v 24v 30w 0-10v
