Non-dimmable LED Driver

UL 300w led driver ac 120v to 12v dc constant voltage 0-10v dimmable led driver

SMT-012-300VDHV2 is 300w led driver 0-10v dimming. Its dimming function include 0-10V/1-10V/Potentiometer/10V PWM 4 in 1. It is working well with maxlite's lighting.

  • item no.:

    SMT-012-300VDHV2
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12VDC
  • Output Current:

    25A
  • Working Mode:

    Constant Volatge
  • Certification:

    CE UL FCC ROHS
  • Warranty:

    7 years
inquiry now
product details

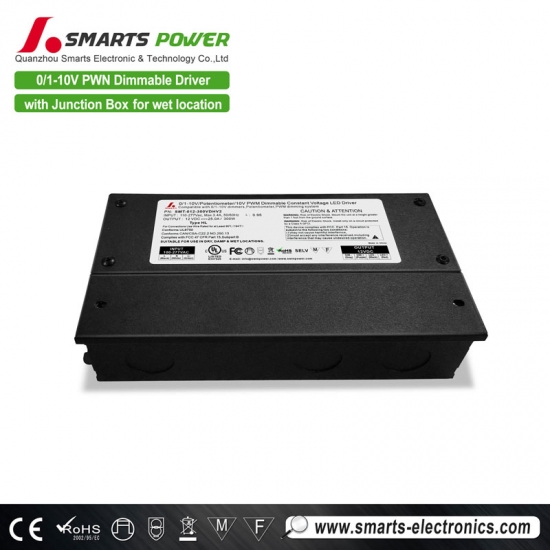

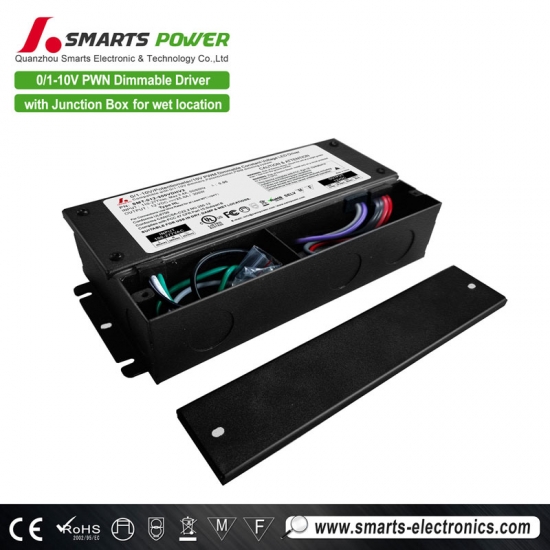

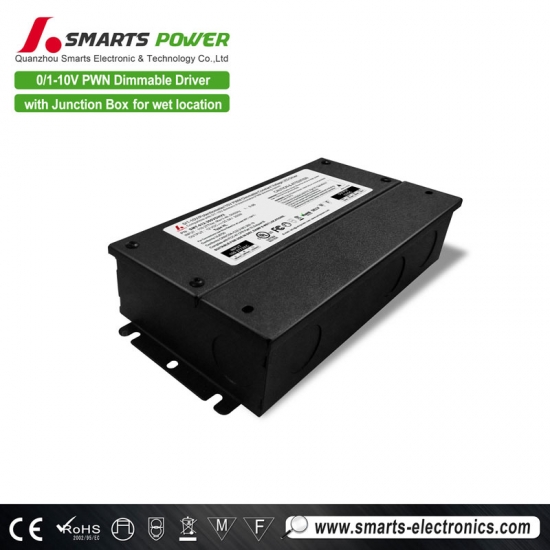

UL 300w led driver ac 120v to 12v dc constant voltage 0-10v dimmable led driver


SMT-012-300VDHV2 is 300w led driver dimamble 0-10v. It is built-in PFC function>0.95 and Efficiency > 88%. It has short circuit/over current/over voltage/over temperature protections. It is compatible with Lutron dimmers. It is able to dim with klusdesign's advertising lamp.


  Product parameters

Model

SMT-012-300VDH

(1.0 version)

SMT-012-300VDHV2

(2.0 version)

 SMT-012-300VDHWV2

(3.0 version)



SMT-024-300VDH

(1.0 version)

SMT-024-300VDHV2

(2.0 version)

SMT-024-300VDHWV2

(3.0 version)

Output

DC Voltage

12V

24V



Rated Current

±0.5V



Rated Power

±0.5%



Voltage Tolerance

25A

12.5A



Voltage Regulation

300W



Load Regulation

±2 %

Input

Voltage Range

100-277VAC



Frequency Range

47-63Hz



Power Factor(Typ.)@ full load

0.98@120VAC  0.95@277VAC



THDTyp.@ full load

<20%



Efficiency(Typ)@ full load

83% @120Vac      86%@277Vac

79%



AC CurrentMax.

1.3A@100VAC



Inrush Curren

Typ.

20A, 50%, 1.6ms



Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed



Over Loading

≤120% constant current limiting, auto-recovery



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃ (see below derating curve)



Working Humidity

2090%RH, non-condensing



Storage TEMP. Humidity

-40+80℃,10~95%RH



TEMP .coefficient

±0.03%/℃(0~50℃)



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

 Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:1.88KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

1.9Kg



Size

1.0 version: 278*108*46mm (L*W*H) / 2.0 version: 278*110*45mm

3.0 version: 278*130*45mm



packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

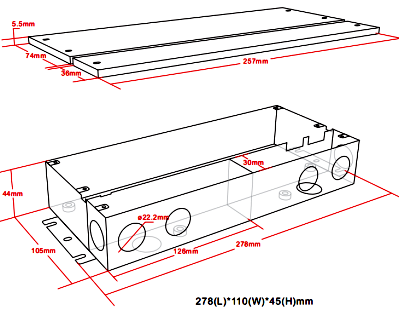

  Mechanical Specification

300w led driver

300w led driver

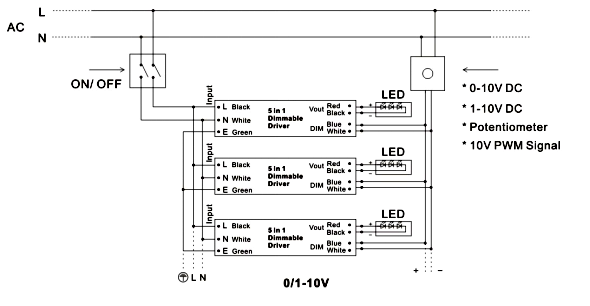

 Connecting solution:


300w led driver


  Compatible Lighting Type


Our 0-10v dimming led driver is compatible with LED world’s module, led strip... It can be used at wet, damp, dry location for indoor and outdoor projects.


0-10v dimming led driver


  Related Products

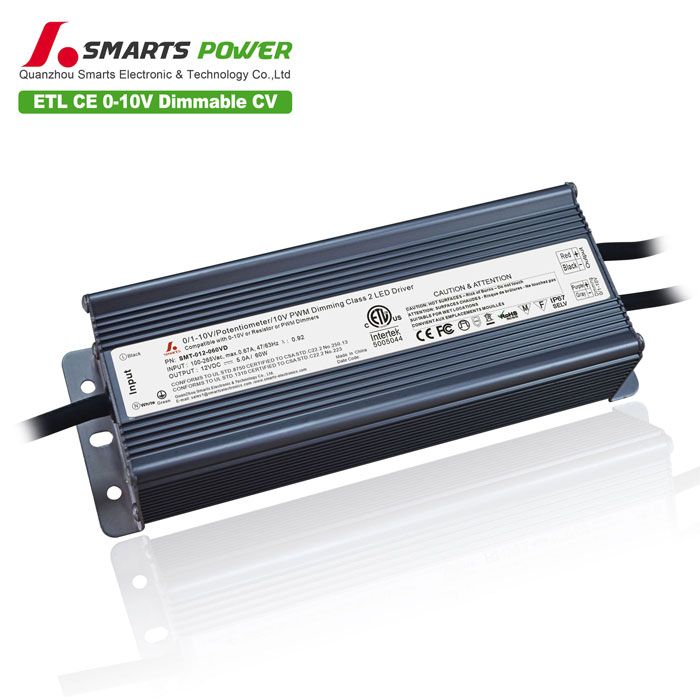

dimmable led driver 12v
