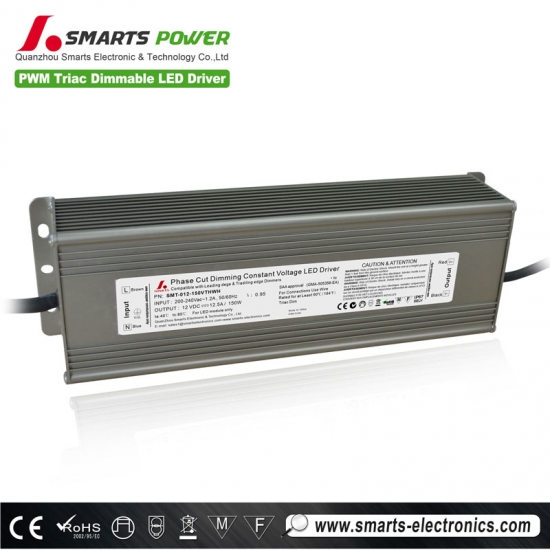

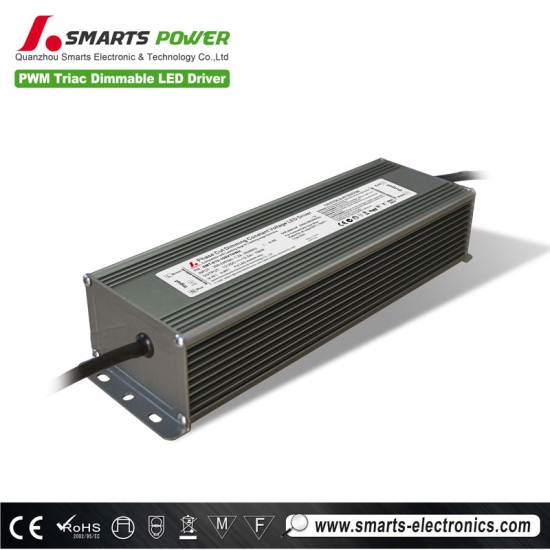

CE 12v triac dimming constant voltage led driver 150 watt power supply
SMT-012-150VTHWH is 12v led driver 150w triac dimmable. It is constant voltage, high output power 150watt. It has SAA, RCM certificate for Australian market. It is dimming smoothly with forward and reserve dimmers. It is compatible with EURI LIGHTING's cabinet light.
Product parameters
|
model |
SMT-012-150VTHWH |
SMT-024-150VTHWH |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
12.5A |
6.25A |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±2% ±1% |
±1%
|
|
|
Rated power |
150W |
150W |
|
Input |
Voltage Range |
200-240V AC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
>0.95@220VAC |
|
|
|
Full Load Efficiency(Typ.) |
>88% |
>90% |
|
|
AC Current（Typ.） |
1.2A |
1.2A |
|
|
Leakage current |
﹤0.5mA/110V |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
|
|
Others |
Net Weight |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
|
|
|
Size |
1.45kg |
|
|
|
packing |
265*78*47mm(L*W*H) |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading range from 10% to 100% |
||
 |
 |
 |
 |
Mechanical Specification
CompatibleDimmer Type

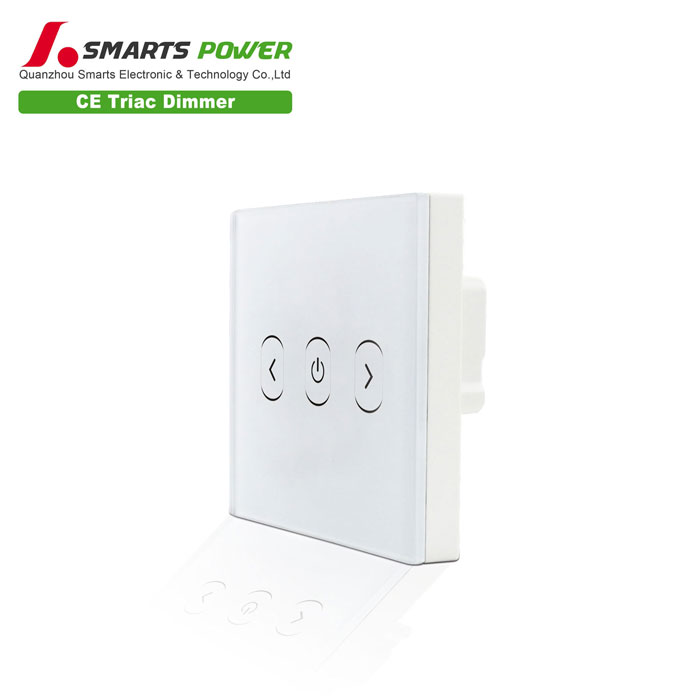

SMT250-T2 is trailing edge dimmer. It has touch pannel with three touch botton to control dimming operation. It has memory function to remember the last brightness when turn on dimmer again. It is dimming smoothly with ledels's spot light.
Related Products

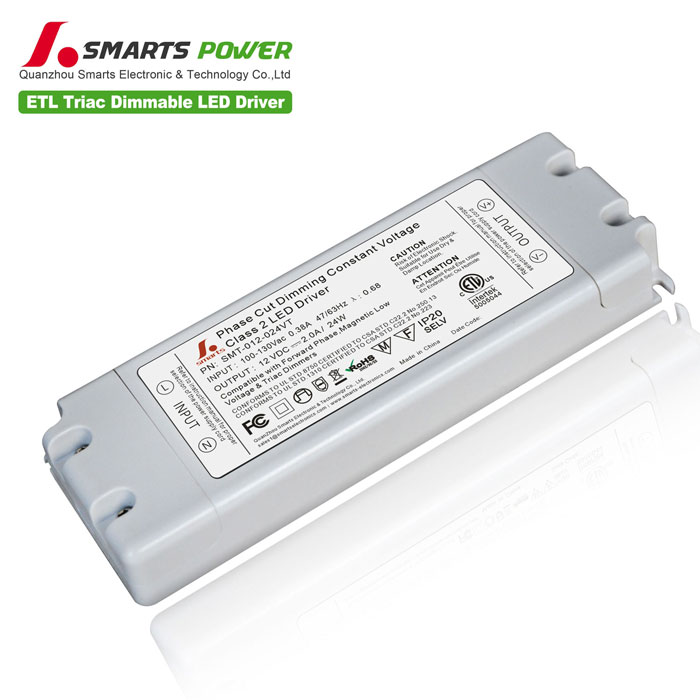

It is 12v 24w phase cut dimming led driver. It only can dimming well with leading edge dimmer. It is IP20 not waterproof type for indoor project only.
